NAT-T下的端口浮动
1. IKE端口浮动
IPsec在隧道建立第一第二阶段主要进行加密方式、加密策略等信息的协商，这部分功能是通过IKE协议来实现的。
IKE协议默认端口为500，但是如果IPsec隧道传输路径上存在NAT设备，那么IKE的端口会从500浮动到4500端口，这样做最主要的目的是：
避免某些NAT设备不转换源端口为500的报文，从而导致NAT穿越失败。
因此IKE通常情况下会同时监控UDP的两个端口：500和4500。
2. IKE端口是否浮动
前一段时间遇到场景：隧道可以正常建立成功，但是数据不通。查了一周时间确定是由于对方设备不支持IKE端口浮动，即使在NAT穿越情况下也未进行端口浮动，依然使用了500端口。

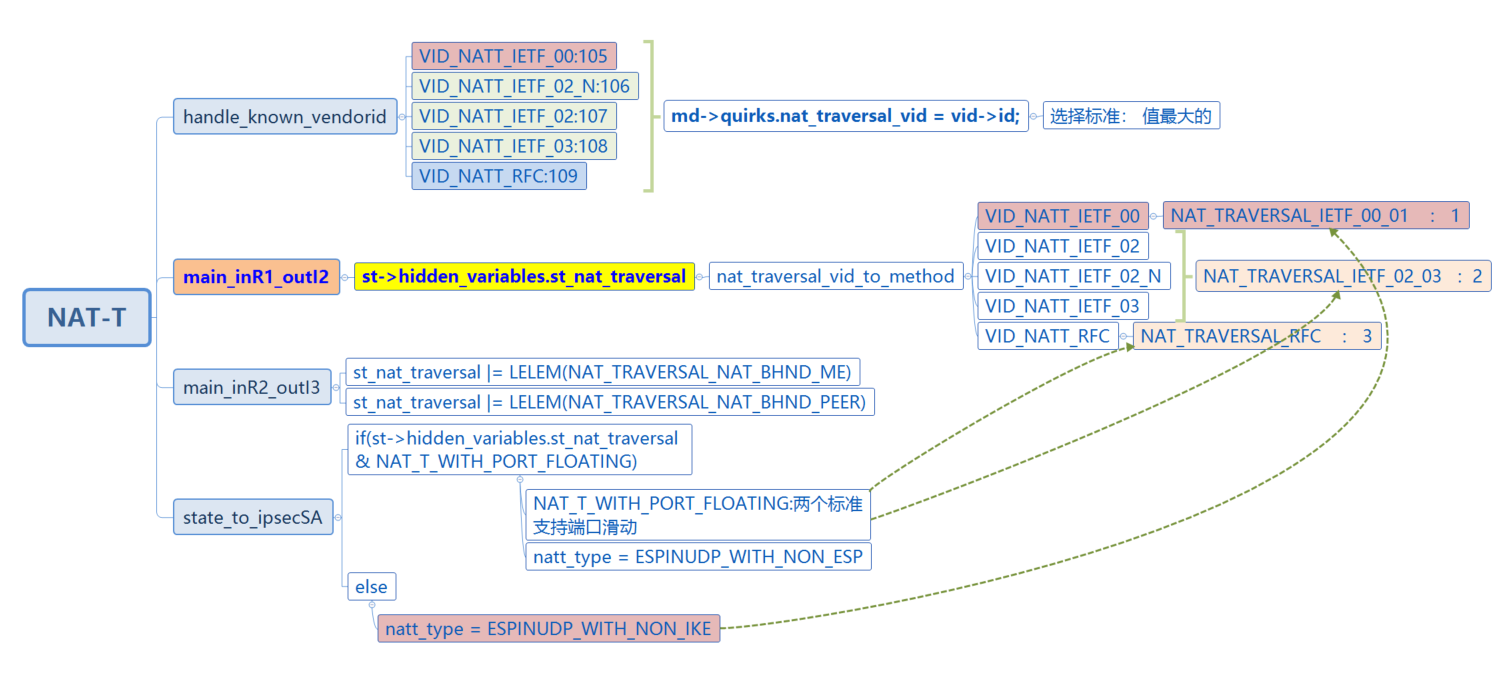

下面是基于openswan源码整理的NAT-T相关的接口及关系：
2.1 探测是否支持NAT-T
#mermaid-svg-iYAiY2iQQFusziTS .label{font-family:'trebuchet ms', verdana, arial;font-family:var(--mermaid-font-family);fill:#333;color:#333}#mermaid-svg-iYAiY2iQQFusziTS .label text{fill:#333}#mermaid-svg-iYAiY2iQQFusziTS .node rect,#mermaid-svg-iYAiY2iQQFusziTS .node circle,#mermaid-svg-iYAiY2iQQFusziTS .node ellipse,#mermaid-svg-iYAiY2iQQFusziTS .node polygon,#mermaid-svg-iYAiY2iQQFusziTS .node path{fill:#ECECFF;stroke:#9370db;stroke-width:1px}#mermaid-svg-iYAiY2iQQFusziTS .node .label{text-align:center;fill:#333}#mermaid-svg-iYAiY2iQQFusziTS .node.clickable{cursor:pointer}#mermaid-svg-iYAiY2iQQFusziTS .arrowheadPath{fill:#333}#mermaid-svg-iYAiY2iQQFusziTS .edgePath .path{stroke:#333;stroke-width:1.5px}#mermaid-svg-iYAiY2iQQFusziTS .flowchart-link{stroke:#333;fill:none}#mermaid-svg-iYAiY2iQQFusziTS .edgeLabel{background-color:#e8e8e8;text-align:center}#mermaid-svg-iYAiY2iQQFusziTS .edgeLabel rect{opacity:0.9}#mermaid-svg-iYAiY2iQQFusziTS .edgeLabel span{color:#333}#mermaid-svg-iYAiY2iQQFusziTS .cluster rect{fill:#ffffde;stroke:#aa3;stroke-width:1px}#mermaid-svg-iYAiY2iQQFusziTS .cluster text{fill:#333}#mermaid-svg-iYAiY2iQQFusziTS div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:'trebuchet ms', verdana, arial;font-family:var(--mermaid-font-family);font-size:12px;background:#ffffde;border:1px solid #aa3;border-radius:2px;pointer-events:none;z-index:100}#mermaid-svg-iYAiY2iQQFusziTS .actor{stroke:#ccf;fill:#ECECFF}#mermaid-svg-iYAiY2iQQFusziTS text.actor>tspan{fill:#000;stroke:none}#mermaid-svg-iYAiY2iQQFusziTS .actor-line{stroke:grey}#mermaid-svg-iYAiY2iQQFusziTS .messageLine0{stroke-width:1.5;stroke-dasharray:none;stroke:#333}#mermaid-svg-iYAiY2iQQFusziTS .messageLine1{stroke-width:1.5;stroke-dasharray:2, 2;stroke:#333}#mermaid-svg-iYAiY2iQQFusziTS #arrowhead path{fill:#333;stroke:#333}#mermaid-svg-iYAiY2iQQFusziTS .sequenceNumber{fill:#fff}#mermaid-svg-iYAiY2iQQFusziTS #sequencenumber{fill:#333}#mermaid-svg-iYAiY2iQQFusziTS #crosshead path{fill:#333;stroke:#333}#mermaid-svg-iYAiY2iQQFusziTS .messageText{fill:#333;stroke:#333}#mermaid-svg-iYAiY2iQQFusziTS .labelBox{stroke:#ccf;fill:#ECECFF}#mermaid-svg-iYAiY2iQQFusziTS .labelText,#mermaid-svg-iYAiY2iQQFusziTS .labelText>tspan{fill:#000;stroke:none}#mermaid-svg-iYAiY2iQQFusziTS .loopText,#mermaid-svg-iYAiY2iQQFusziTS .loopText>tspan{fill:#000;stroke:none}#mermaid-svg-iYAiY2iQQFusziTS .loopLine{stroke-width:2px;stroke-dasharray:2, 2;stroke:#ccf;fill:#ccf}#mermaid-svg-iYAiY2iQQFusziTS .note{stroke:#aa3;fill:#fff5ad}#mermaid-svg-iYAiY2iQQFusziTS .noteText,#mermaid-svg-iYAiY2iQQFusziTS .noteText>tspan{fill:#000;stroke:none}#mermaid-svg-iYAiY2iQQFusziTS .activation0{fill:#f4f4f4;stroke:#666}#mermaid-svg-iYAiY2iQQFusziTS .activation1{fill:#f4f4f4;stroke:#666}#mermaid-svg-iYAiY2iQQFusziTS .activation2{fill:#f4f4f4;stroke:#666}#mermaid-svg-iYAiY2iQQFusziTS .mermaid-main-font{font-family:"trebuchet ms", verdana, arial;font-family:var(--mermaid-font-family)}#mermaid-svg-iYAiY2iQQFusziTS .section{stroke:none;opacity:0.2}#mermaid-svg-iYAiY2iQQFusziTS .section0{fill:rgba(102,102,255,0.49)}#mermaid-svg-iYAiY2iQQFusziTS .section2{fill:#fff400}#mermaid-svg-iYAiY2iQQFusziTS .section1,#mermaid-svg-iYAiY2iQQFusziTS .section3{fill:#fff;opacity:0.2}#mermaid-svg-iYAiY2iQQFusziTS .sectionTitle0{fill:#333}#mermaid-svg-iYAiY2iQQFusziTS .sectionTitle1{fill:#333}#mermaid-svg-iYAiY2iQQFusziTS .sectionTitle2{fill:#333}#mermaid-svg-iYAiY2iQQFusziTS .sectionTitle3{fill:#333}#mermaid-svg-iYAiY2iQQFusziTS .sectionTitle{text-anchor:start;font-size:11px;text-height:14px;font-family:'trebuchet ms', verdana, arial;font-family:var(--mermaid-font-family)}#mermaid-svg-iYAiY2iQQFusziTS .grid .tick{stroke:#d3d3d3;opacity:0.8;shape-rendering:crispEdges}#mermaid-svg-iYAiY2iQQFusziTS .grid .tick text{font-family:'trebuchet ms', verdana, arial;font-family:var(--mermaid-font-family)}#mermaid-svg-iYAiY2iQQFusziTS .grid path{stroke-width:0}#mermaid-svg-iYAiY2iQQFusziTS .today{fill:none;stroke:red;stroke-width:2px}#mermaid-svg-iYAiY2iQQFusziTS .task{stroke-width:2}#mermaid-svg-iYAiY2iQQFusziTS .taskText{text-anchor:middle;font-family:'trebuchet ms', verdana, arial;font-family:var(--mermaid-font-family)}#mermaid-svg-iYAiY2iQQFusziTS .taskText:not([font-size]){font-size:11px}#mermaid-svg-iYAiY2iQQFusziTS .taskTextOutsideRight{fill:#000;text-anchor:start;font-size:11px;font-family:'trebuchet ms', verdana, arial;font-family:var(--mermaid-font-family)}#mermaid-svg-iYAiY2iQQFusziTS .taskTextOutsideLeft{fill:#000;text-anchor:end;font-size:11px}#mermaid-svg-iYAiY2iQQFusziTS .task.clickable{cursor:pointer}#mermaid-svg-iYAiY2iQQFusziTS .taskText.clickable{cursor:pointer;fill:#003163 !important;font-weight:bold}#mermaid-svg-iYAiY2iQQFusziTS .taskTextOutsideLeft.clickable{cursor:pointer;fill:#003163 !important;font-weight:bold}#mermaid-svg-iYAiY2iQQFusziTS .taskTextOutsideRight.clickable{cursor:pointer;fill:#003163 !important;font-weight:bold}#mermaid-svg-iYAiY2iQQFusziTS .taskText0,#mermaid-svg-iYAiY2iQQFusziTS .taskText1,#mermaid-svg-iYAiY2iQQFusziTS .taskText2,#mermaid-svg-iYAiY2iQQFusziTS .taskText3{fill:#fff}#mermaid-svg-iYAiY2iQQFusziTS .task0,#mermaid-svg-iYAiY2iQQFusziTS .task1,#mermaid-svg-iYAiY2iQQFusziTS .task2,#mermaid-svg-iYAiY2iQQFusziTS .task3{fill:#8a90dd;stroke:#534fbc}#mermaid-svg-iYAiY2iQQFusziTS .taskTextOutside0,#mermaid-svg-iYAiY2iQQFusziTS .taskTextOutside2{fill:#000}#mermaid-svg-iYAiY2iQQFusziTS .taskTextOutside1,#mermaid-svg-iYAiY2iQQFusziTS .taskTextOutside3{fill:#000}#mermaid-svg-iYAiY2iQQFusziTS .active0,#mermaid-svg-iYAiY2iQQFusziTS .active1,#mermaid-svg-iYAiY2iQQFusziTS .active2,#mermaid-svg-iYAiY2iQQFusziTS .active3{fill:#bfc7ff;stroke:#534fbc}#mermaid-svg-iYAiY2iQQFusziTS .activeText0,#mermaid-svg-iYAiY2iQQFusziTS .activeText1,#mermaid-svg-iYAiY2iQQFusziTS .activeText2,#mermaid-svg-iYAiY2iQQFusziTS .activeText3{fill:#000 !important}#mermaid-svg-iYAiY2iQQFusziTS .done0,#mermaid-svg-iYAiY2iQQFusziTS .done1,#mermaid-svg-iYAiY2iQQFusziTS .done2,#mermaid-svg-iYAiY2iQQFusziTS .done3{stroke:grey;fill:#d3d3d3;stroke-width:2}#mermaid-svg-iYAiY2iQQFusziTS .doneText0,#mermaid-svg-iYAiY2iQQFusziTS .doneText1,#mermaid-svg-iYAiY2iQQFusziTS .doneText2,#mermaid-svg-iYAiY2iQQFusziTS .doneText3{fill:#000 !important}#mermaid-svg-iYAiY2iQQFusziTS .crit0,#mermaid-svg-iYAiY2iQQFusziTS .crit1,#mermaid-svg-iYAiY2iQQFusziTS .crit2,#mermaid-svg-iYAiY2iQQFusziTS .crit3{stroke:#f88;fill:red;stroke-width:2}#mermaid-svg-iYAiY2iQQFusziTS .activeCrit0,#mermaid-svg-iYAiY2iQQFusziTS .activeCrit1,#mermaid-svg-iYAiY2iQQFusziTS .activeCrit2,#mermaid-svg-iYAiY2iQQFusziTS .activeCrit3{stroke:#f88;fill:#bfc7ff;stroke-width:2}#mermaid-svg-iYAiY2iQQFusziTS .doneCrit0,#mermaid-svg-iYAiY2iQQFusziTS .doneCrit1,#mermaid-svg-iYAiY2iQQFusziTS .doneCrit2,#mermaid-svg-iYAiY2iQQFusziTS .doneCrit3{stroke:#f88;fill:#d3d3d3;stroke-width:2;cursor:pointer;shape-rendering:crispEdges}#mermaid-svg-iYAiY2iQQFusziTS .milestone{transform:rotate(45deg) scale(0.8, 0.8)}#mermaid-svg-iYAiY2iQQFusziTS .milestoneText{font-style:italic}#mermaid-svg-iYAiY2iQQFusziTS .doneCritText0,#mermaid-svg-iYAiY2iQQFusziTS .doneCritText1,#mermaid-svg-iYAiY2iQQFusziTS .doneCritText2,#mermaid-svg-iYAiY2iQQFusziTS .doneCritText3{fill:#000 !important}#mermaid-svg-iYAiY2iQQFusziTS .activeCritText0,#mermaid-svg-iYAiY2iQQFusziTS .activeCritText1,#mermaid-svg-iYAiY2iQQFusziTS .activeCritText2,#mermaid-svg-iYAiY2iQQFusziTS .activeCritText3{fill:#000 !important}#mermaid-svg-iYAiY2iQQFusziTS .titleText{text-anchor:middle;font-size:18px;fill:#000;font-family:'trebuchet ms', verdana, arial;font-family:var(--mermaid-font-family)}#mermaid-svg-iYAiY2iQQFusziTS g.classGroup text{fill:#9370db;stroke:none;font-family:'trebuchet ms', verdana, arial;font-family:var(--mermaid-font-family);font-size:10px}#mermaid-svg-iYAiY2iQQFusziTS g.classGroup text .title{font-weight:bolder}#mermaid-svg-iYAiY2iQQFusziTS g.clickable{cursor:pointer}#mermaid-svg-iYAiY2iQQFusziTS g.classGroup rect{fill:#ECECFF;stroke:#9370db}#mermaid-svg-iYAiY2iQQFusziTS g.classGroup line{stroke:#9370db;stroke-width:1}#mermaid-svg-iYAiY2iQQFusziTS .classLabel .box{stroke:none;stroke-width:0;fill:#ECECFF;opacity:0.5}#mermaid-svg-iYAiY2iQQFusziTS .classLabel .label{fill:#9370db;font-size:10px}#mermaid-svg-iYAiY2iQQFusziTS .relation{stroke:#9370db;stroke-width:1;fill:none}#mermaid-svg-iYAiY2iQQFusziTS .dashed-line{stroke-dasharray:3}#mermaid-svg-iYAiY2iQQFusziTS #compositionStart{fill:#9370db;stroke:#9370db;stroke-width:1}#mermaid-svg-iYAiY2iQQFusziTS #compositionEnd{fill:#9370db;stroke:#9370db;stroke-width:1}#mermaid-svg-iYAiY2iQQFusziTS #aggregationStart{fill:#ECECFF;stroke:#9370db;stroke-width:1}#mermaid-svg-iYAiY2iQQFusziTS #aggregationEnd{fill:#ECECFF;stroke:#9370db;stroke-width:1}#mermaid-svg-iYAiY2iQQFusziTS #dependencyStart{fill:#9370db;stroke:#9370db;stroke-width:1}#mermaid-svg-iYAiY2iQQFusziTS #dependencyEnd{fill:#9370db;stroke:#9370db;stroke-width:1}#mermaid-svg-iYAiY2iQQFusziTS #extensionStart{fill:#9370db;stroke:#9370db;stroke-width:1}#mermaid-svg-iYAiY2iQQFusziTS #extensionEnd{fill:#9370db;stroke:#9370db;stroke-width:1}#mermaid-svg-iYAiY2iQQFusziTS .commit-id,#mermaid-svg-iYAiY2iQQFusziTS .commit-msg,#mermaid-svg-iYAiY2iQQFusziTS .branch-label{fill:lightgrey;color:lightgrey;font-family:'trebuchet ms', verdana, arial;font-family:var(--mermaid-font-family)}#mermaid-svg-iYAiY2iQQFusziTS .pieTitleText{text-anchor:middle;font-size:25px;fill:#000;font-family:'trebuchet ms', verdana, arial;font-family:var(--mermaid-font-family)}#mermaid-svg-iYAiY2iQQFusziTS .slice{font-family:'trebuchet ms', verdana, arial;font-family:var(--mermaid-font-family)}#mermaid-svg-iYAiY2iQQFusziTS g.stateGroup text{fill:#9370db;stroke:none;font-size:10px;font-family:'trebuchet ms', verdana, arial;font-family:var(--mermaid-font-family)}#mermaid-svg-iYAiY2iQQFusziTS g.stateGroup text{fill:#9370db;fill:#333;stroke:none;font-size:10px}#mermaid-svg-iYAiY2iQQFusziTS g.statediagram-cluster .cluster-label text{fill:#333}#mermaid-svg-iYAiY2iQQFusziTS g.stateGroup .state-title{font-weight:bolder;fill:#000}#mermaid-svg-iYAiY2iQQFusziTS g.stateGroup rect{fill:#ECECFF;stroke:#9370db}#mermaid-svg-iYAiY2iQQFusziTS g.stateGroup line{stroke:#9370db;stroke-width:1}#mermaid-svg-iYAiY2iQQFusziTS .transition{stroke:#9370db;stroke-width:1;fill:none}#mermaid-svg-iYAiY2iQQFusziTS .stateGroup .composit{fill:white;border-bottom:1px}#mermaid-svg-iYAiY2iQQFusziTS .stateGroup .alt-composit{fill:#e0e0e0;border-bottom:1px}#mermaid-svg-iYAiY2iQQFusziTS .state-note{stroke:#aa3;fill:#fff5ad}#mermaid-svg-iYAiY2iQQFusziTS .state-note text{fill:black;stroke:none;font-size:10px}#mermaid-svg-iYAiY2iQQFusziTS .stateLabel .box{stroke:none;stroke-width:0;fill:#ECECFF;opacity:0.7}#mermaid-svg-iYAiY2iQQFusziTS .edgeLabel text{fill:#333}#mermaid-svg-iYAiY2iQQFusziTS .stateLabel text{fill:#000;font-size:10px;font-weight:bold;font-family:'trebuchet ms', verdana, arial;font-family:var(--mermaid-font-family)}#mermaid-svg-iYAiY2iQQFusziTS .node circle.state-start{fill:black;stroke:black}#mermaid-svg-iYAiY2iQQFusziTS .node circle.state-end{fill:black;stroke:white;stroke-width:1.5}#mermaid-svg-iYAiY2iQQFusziTS #statediagram-barbEnd{fill:#9370db}#mermaid-svg-iYAiY2iQQFusziTS .statediagram-cluster rect{fill:#ECECFF;stroke:#9370db;stroke-width:1px}#mermaid-svg-iYAiY2iQQFusziTS .statediagram-cluster rect.outer{rx:5px;ry:5px}#mermaid-svg-iYAiY2iQQFusziTS .statediagram-state .divider{stroke:#9370db}#mermaid-svg-iYAiY2iQQFusziTS .statediagram-state .title-state{rx:5px;ry:5px}#mermaid-svg-iYAiY2iQQFusziTS .statediagram-cluster.statediagram-cluster .inner{fill:white}#mermaid-svg-iYAiY2iQQFusziTS .statediagram-cluster.statediagram-cluster-alt .inner{fill:#e0e0e0}#mermaid-svg-iYAiY2iQQFusziTS .statediagram-cluster .inner{rx:0;ry:0}#mermaid-svg-iYAiY2iQQFusziTS .statediagram-state rect.basic{rx:5px;ry:5px}#mermaid-svg-iYAiY2iQQFusziTS .statediagram-state rect.divider{stroke-dasharray:10,10;fill:#efefef}#mermaid-svg-iYAiY2iQQFusziTS .note-edge{stroke-dasharray:5}#mermaid-svg-iYAiY2iQQFusziTS .statediagram-note rect{fill:#fff5ad;stroke:#aa3;stroke-width:1px;rx:0;ry:0}:root{--mermaid-font-family: '"trebuchet ms", verdana, arial';--mermaid-font-family: "Comic Sans MS", "Comic Sans", cursive}#mermaid-svg-iYAiY2iQQFusziTS .error-icon{fill:#522}#mermaid-svg-iYAiY2iQQFusziTS .error-text{fill:#522;stroke:#522}#mermaid-svg-iYAiY2iQQFusziTS .edge-thickness-normal{stroke-width:2px}#mermaid-svg-iYAiY2iQQFusziTS .edge-thickness-thick{stroke-width:3.5px}#mermaid-svg-iYAiY2iQQFusziTS .edge-pattern-solid{stroke-dasharray:0}#mermaid-svg-iYAiY2iQQFusziTS .edge-pattern-dashed{stroke-dasharray:3}#mermaid-svg-iYAiY2iQQFusziTS .edge-pattern-dotted{stroke-dasharray:2}#mermaid-svg-iYAiY2iQQFusziTS .marker{fill:#333}#mermaid-svg-iYAiY2iQQFusziTS .marker.cross{stroke:#333}
:root { --mermaid-font-family: "trebuchet ms", verdana, arial;}
#mermaid-svg-iYAiY2iQQFusziTS {
color: rgba(0, 0, 0, 0.75);
font: ;
}
发起者
响应者
HDR, SA, VIDs
HDR, SA, VID
发起者
响应者

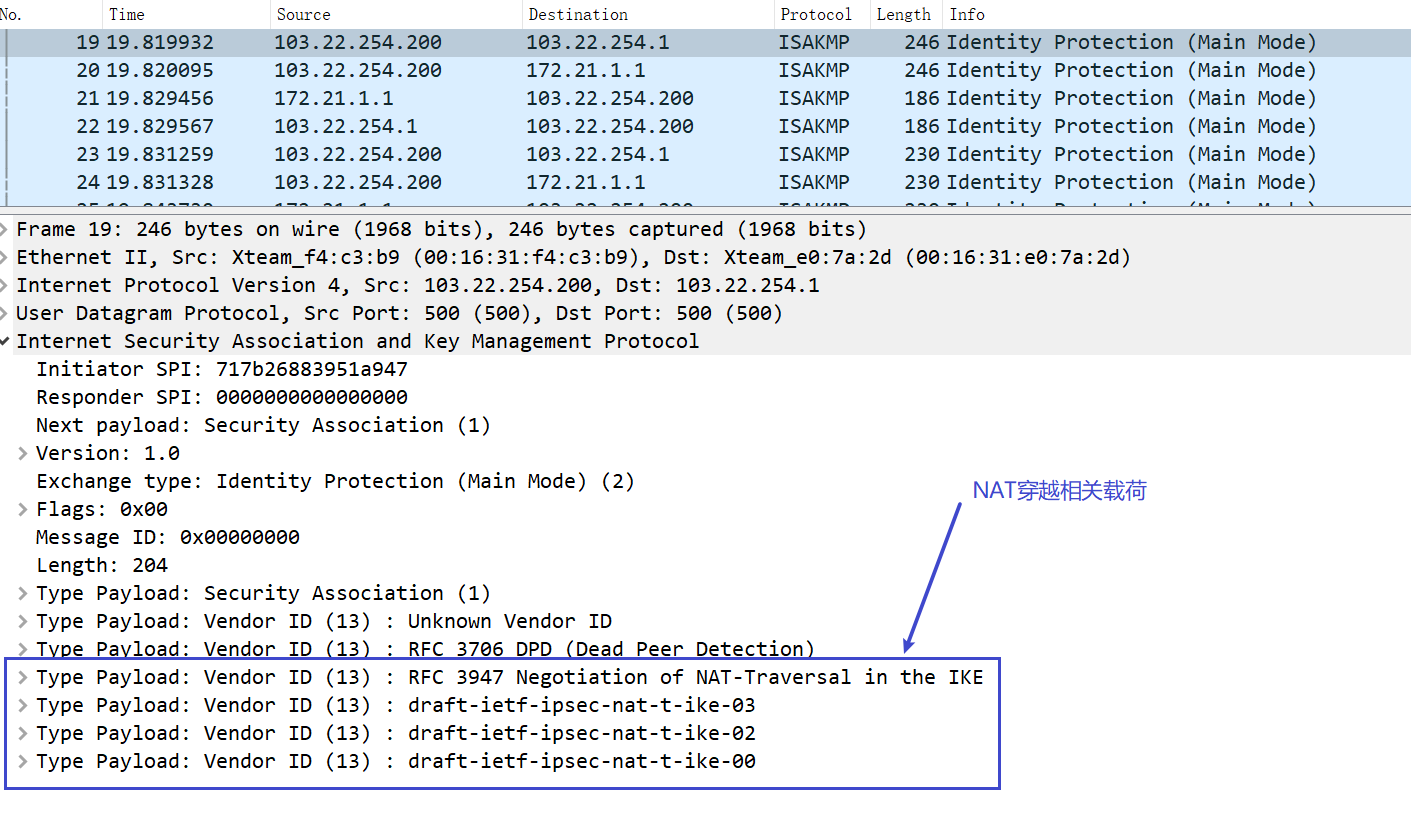

IPsec的隧道的发起方会在第一阶段的第一个报文中将本端支持的NAT-T标准以负载VID的方式发送到对端，在openswan源码中VID与NAT-T类型对应关系如下：
| 序号 | VID类型 | 对应的数值 | NAT-T类型 | 支持端口浮动 |
|---|---|---|---|---|
| 1 | VID_NATT_IETF_00 | 105 | NAT_TRAVERSAL_IETF_00_01 | 否 |
| 2 | VID_NATT_IETF_02_N | 106 | NAT_TRAVERSAL_IETF_02_03 | 是 |
| 3 | VID_NATT_IETF_02 | 107 | NAT_TRAVERSAL_IETF_02_03 | 是 |
| 4 | VID_NATT_IETF_03 | 108 | NAT_TRAVERSAL_IETF_02_03 | 是 |
| 5 | VID_NATT_RFC | 109 | NAT_TRAVERSAL_RFC | 是 |

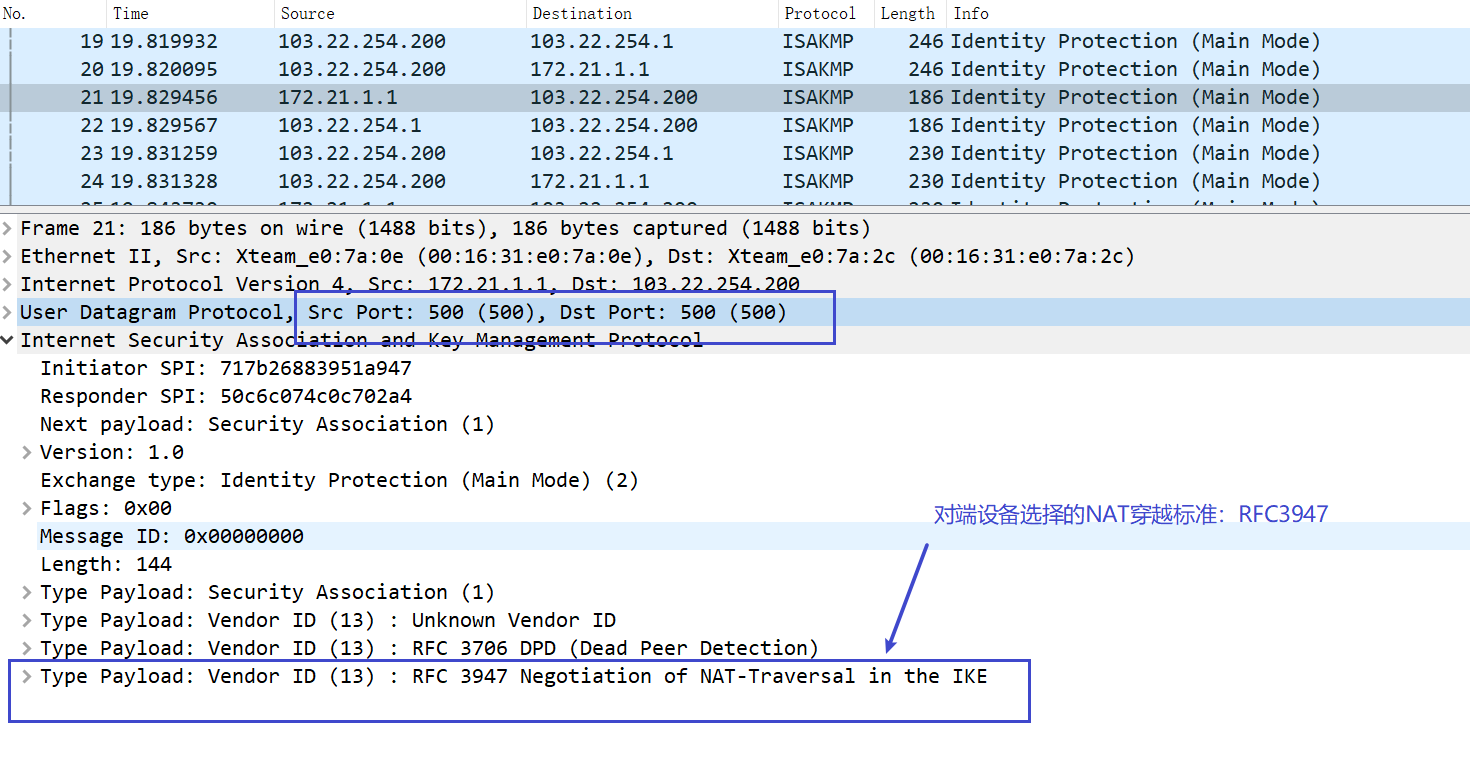

对端根据接收到的标准（一般包含多个）中选择其中一个VID作为NAT-T的类型，而VID选择的依据便是**“选择数值大的标准”**，也就是上表中的VID_XXX的优先级随着数值增加而依次递增：VID_NATT_RFC > VID_NATT_IETF_03 > VID_NATT_IETF_02 > VID_NATT_IETF_02_N > VID_NATT_IETF_00。
2.2 探测路径上是否存在NAT设备

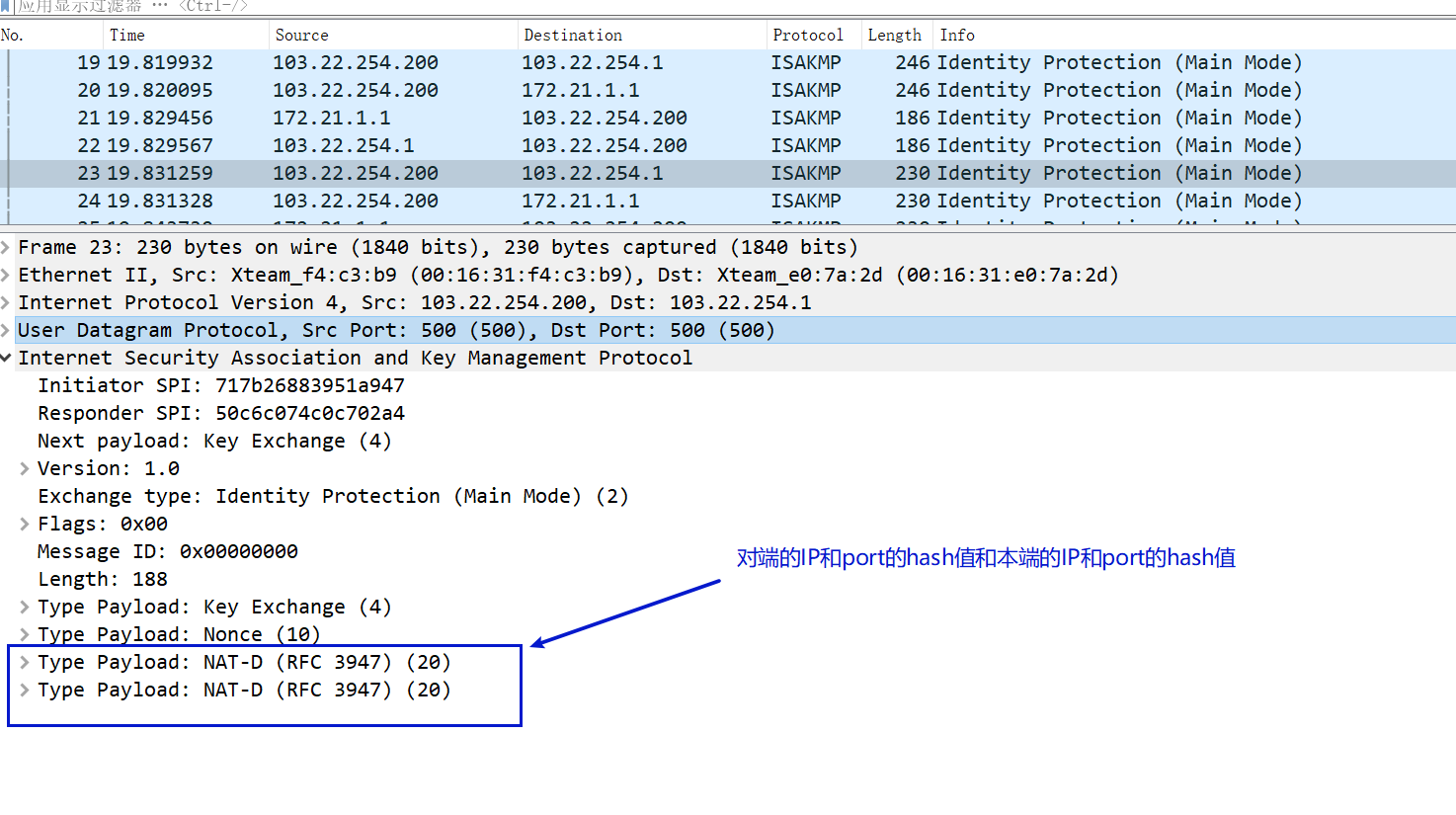

在主模式下，NAT设备的探测是在第三四个报文中通过NAT-D来探测的，探测的方式就计算本端IP地址和端口的HASH1值和对端IP地址和端口的HASH2值，然后将这两个哈希值同时以NAT-D负载的方式发送给对方设备，对方收到后通过计算接收到的报文中源和目的的IP地址和端口的哈希值与NAT-D负载中的哈希值进行比较：
#mermaid-svg-7OCNQR87RcndZkJU .label{font-family:'trebuchet ms', verdana, arial;font-family:var(--mermaid-font-family);fill:#333;color:#333}#mermaid-svg-7OCNQR87RcndZkJU .label text{fill:#333}#mermaid-svg-7OCNQR87RcndZkJU .node rect,#mermaid-svg-7OCNQR87RcndZkJU .node circle,#mermaid-svg-7OCNQR87RcndZkJU .node ellipse,#mermaid-svg-7OCNQR87RcndZkJU .node polygon,#mermaid-svg-7OCNQR87RcndZkJU .node path{fill:#ECECFF;stroke:#9370db;stroke-width:1px}#mermaid-svg-7OCNQR87RcndZkJU .node .label{text-align:center;fill:#333}#mermaid-svg-7OCNQR87RcndZkJU .node.clickable{cursor:pointer}#mermaid-svg-7OCNQR87RcndZkJU .arrowheadPath{fill:#333}#mermaid-svg-7OCNQR87RcndZkJU .edgePath .path{stroke:#333;stroke-width:1.5px}#mermaid-svg-7OCNQR87RcndZkJU .flowchart-link{stroke:#333;fill:none}#mermaid-svg-7OCNQR87RcndZkJU .edgeLabel{background-color:#e8e8e8;text-align:center}#mermaid-svg-7OCNQR87RcndZkJU .edgeLabel rect{opacity:0.9}#mermaid-svg-7OCNQR87RcndZkJU .edgeLabel span{color:#333}#mermaid-svg-7OCNQR87RcndZkJU .cluster rect{fill:#ffffde;stroke:#aa3;stroke-width:1px}#mermaid-svg-7OCNQR87RcndZkJU .cluster text{fill:#333}#mermaid-svg-7OCNQR87RcndZkJU div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:'trebuchet ms', verdana, arial;font-family:var(--mermaid-font-family);font-size:12px;background:#ffffde;border:1px solid #aa3;border-radius:2px;pointer-events:none;z-index:100}#mermaid-svg-7OCNQR87RcndZkJU .actor{stroke:#ccf;fill:#ECECFF}#mermaid-svg-7OCNQR87RcndZkJU text.actor>tspan{fill:#000;stroke:none}#mermaid-svg-7OCNQR87RcndZkJU .actor-line{stroke:grey}#mermaid-svg-7OCNQR87RcndZkJU .messageLine0{stroke-width:1.5;stroke-dasharray:none;stroke:#333}#mermaid-svg-7OCNQR87RcndZkJU .messageLine1{stroke-width:1.5;stroke-dasharray:2, 2;stroke:#333}#mermaid-svg-7OCNQR87RcndZkJU #arrowhead path{fill:#333;stroke:#333}#mermaid-svg-7OCNQR87RcndZkJU .sequenceNumber{fill:#fff}#mermaid-svg-7OCNQR87RcndZkJU #sequencenumber{fill:#333}#mermaid-svg-7OCNQR87RcndZkJU #crosshead path{fill:#333;stroke:#333}#mermaid-svg-7OCNQR87RcndZkJU .messageText{fill:#333;stroke:#333}#mermaid-svg-7OCNQR87RcndZkJU .labelBox{stroke:#ccf;fill:#ECECFF}#mermaid-svg-7OCNQR87RcndZkJU .labelText,#mermaid-svg-7OCNQR87RcndZkJU .labelText>tspan{fill:#000;stroke:none}#mermaid-svg-7OCNQR87RcndZkJU .loopText,#mermaid-svg-7OCNQR87RcndZkJU .loopText>tspan{fill:#000;stroke:none}#mermaid-svg-7OCNQR87RcndZkJU .loopLine{stroke-width:2px;stroke-dasharray:2, 2;stroke:#ccf;fill:#ccf}#mermaid-svg-7OCNQR87RcndZkJU .note{stroke:#aa3;fill:#fff5ad}#mermaid-svg-7OCNQR87RcndZkJU .noteText,#mermaid-svg-7OCNQR87RcndZkJU .noteText>tspan{fill:#000;stroke:none}#mermaid-svg-7OCNQR87RcndZkJU .activation0{fill:#f4f4f4;stroke:#666}#mermaid-svg-7OCNQR87RcndZkJU .activation1{fill:#f4f4f4;stroke:#666}#mermaid-svg-7OCNQR87RcndZkJU .activation2{fill:#f4f4f4;stroke:#666}#mermaid-svg-7OCNQR87RcndZkJU .mermaid-main-font{font-family:"trebuchet ms", verdana, arial;font-family:var(--mermaid-font-family)}#mermaid-svg-7OCNQR87RcndZkJU .section{stroke:none;opacity:0.2}#mermaid-svg-7OCNQR87RcndZkJU .section0{fill:rgba(102,102,255,0.49)}#mermaid-svg-7OCNQR87RcndZkJU .section2{fill:#fff400}#mermaid-svg-7OCNQR87RcndZkJU .section1,#mermaid-svg-7OCNQR87RcndZkJU .section3{fill:#fff;opacity:0.2}#mermaid-svg-7OCNQR87RcndZkJU .sectionTitle0{fill:#333}#mermaid-svg-7OCNQR87RcndZkJU .sectionTitle1{fill:#333}#mermaid-svg-7OCNQR87RcndZkJU .sectionTitle2{fill:#333}#mermaid-svg-7OCNQR87RcndZkJU .sectionTitle3{fill:#333}#mermaid-svg-7OCNQR87RcndZkJU .sectionTitle{text-anchor:start;font-size:11px;text-height:14px;font-family:'trebuchet ms', verdana, arial;font-family:var(--mermaid-font-family)}#mermaid-svg-7OCNQR87RcndZkJU .grid .tick{stroke:#d3d3d3;opacity:0.8;shape-rendering:crispEdges}#mermaid-svg-7OCNQR87RcndZkJU .grid .tick text{font-family:'trebuchet ms', verdana, arial;font-family:var(--mermaid-font-family)}#mermaid-svg-7OCNQR87RcndZkJU .grid path{stroke-width:0}#mermaid-svg-7OCNQR87RcndZkJU .today{fill:none;stroke:red;stroke-width:2px}#mermaid-svg-7OCNQR87RcndZkJU .task{stroke-width:2}#mermaid-svg-7OCNQR87RcndZkJU .taskText{text-anchor:middle;font-family:'trebuchet ms', verdana, arial;font-family:var(--mermaid-font-family)}#mermaid-svg-7OCNQR87RcndZkJU .taskText:not([font-size]){font-size:11px}#mermaid-svg-7OCNQR87RcndZkJU .taskTextOutsideRight{fill:#000;text-anchor:start;font-size:11px;font-family:'trebuchet ms', verdana, arial;font-family:var(--mermaid-font-family)}#mermaid-svg-7OCNQR87RcndZkJU .taskTextOutsideLeft{fill:#000;text-anchor:end;font-size:11px}#mermaid-svg-7OCNQR87RcndZkJU .task.clickable{cursor:pointer}#mermaid-svg-7OCNQR87RcndZkJU .taskText.clickable{cursor:pointer;fill:#003163 !important;font-weight:bold}#mermaid-svg-7OCNQR87RcndZkJU .taskTextOutsideLeft.clickable{cursor:pointer;fill:#003163 !important;font-weight:bold}#mermaid-svg-7OCNQR87RcndZkJU .taskTextOutsideRight.clickable{cursor:pointer;fill:#003163 !important;font-weight:bold}#mermaid-svg-7OCNQR87RcndZkJU .taskText0,#mermaid-svg-7OCNQR87RcndZkJU .taskText1,#mermaid-svg-7OCNQR87RcndZkJU .taskText2,#mermaid-svg-7OCNQR87RcndZkJU .taskText3{fill:#fff}#mermaid-svg-7OCNQR87RcndZkJU .task0,#mermaid-svg-7OCNQR87RcndZkJU .task1,#mermaid-svg-7OCNQR87RcndZkJU .task2,#mermaid-svg-7OCNQR87RcndZkJU .task3{fill:#8a90dd;stroke:#534fbc}#mermaid-svg-7OCNQR87RcndZkJU .taskTextOutside0,#mermaid-svg-7OCNQR87RcndZkJU .taskTextOutside2{fill:#000}#mermaid-svg-7OCNQR87RcndZkJU .taskTextOutside1,#mermaid-svg-7OCNQR87RcndZkJU .taskTextOutside3{fill:#000}#mermaid-svg-7OCNQR87RcndZkJU .active0,#mermaid-svg-7OCNQR87RcndZkJU .active1,#mermaid-svg-7OCNQR87RcndZkJU .active2,#mermaid-svg-7OCNQR87RcndZkJU .active3{fill:#bfc7ff;stroke:#534fbc}#mermaid-svg-7OCNQR87RcndZkJU .activeText0,#mermaid-svg-7OCNQR87RcndZkJU .activeText1,#mermaid-svg-7OCNQR87RcndZkJU .activeText2,#mermaid-svg-7OCNQR87RcndZkJU .activeText3{fill:#000 !important}#mermaid-svg-7OCNQR87RcndZkJU .done0,#mermaid-svg-7OCNQR87RcndZkJU .done1,#mermaid-svg-7OCNQR87RcndZkJU .done2,#mermaid-svg-7OCNQR87RcndZkJU .done3{stroke:grey;fill:#d3d3d3;stroke-width:2}#mermaid-svg-7OCNQR87RcndZkJU .doneText0,#mermaid-svg-7OCNQR87RcndZkJU .doneText1,#mermaid-svg-7OCNQR87RcndZkJU .doneText2,#mermaid-svg-7OCNQR87RcndZkJU .doneText3{fill:#000 !important}#mermaid-svg-7OCNQR87RcndZkJU .crit0,#mermaid-svg-7OCNQR87RcndZkJU .crit1,#mermaid-svg-7OCNQR87RcndZkJU .crit2,#mermaid-svg-7OCNQR87RcndZkJU .crit3{stroke:#f88;fill:red;stroke-width:2}#mermaid-svg-7OCNQR87RcndZkJU .activeCrit0,#mermaid-svg-7OCNQR87RcndZkJU .activeCrit1,#mermaid-svg-7OCNQR87RcndZkJU .activeCrit2,#mermaid-svg-7OCNQR87RcndZkJU .activeCrit3{stroke:#f88;fill:#bfc7ff;stroke-width:2}#mermaid-svg-7OCNQR87RcndZkJU .doneCrit0,#mermaid-svg-7OCNQR87RcndZkJU .doneCrit1,#mermaid-svg-7OCNQR87RcndZkJU .doneCrit2,#mermaid-svg-7OCNQR87RcndZkJU .doneCrit3{stroke:#f88;fill:#d3d3d3;stroke-width:2;cursor:pointer;shape-rendering:crispEdges}#mermaid-svg-7OCNQR87RcndZkJU .milestone{transform:rotate(45deg) scale(0.8, 0.8)}#mermaid-svg-7OCNQR87RcndZkJU .milestoneText{font-style:italic}#mermaid-svg-7OCNQR87RcndZkJU .doneCritText0,#mermaid-svg-7OCNQR87RcndZkJU .doneCritText1,#mermaid-svg-7OCNQR87RcndZkJU .doneCritText2,#mermaid-svg-7OCNQR87RcndZkJU .doneCritText3{fill:#000 !important}#mermaid-svg-7OCNQR87RcndZkJU .activeCritText0,#mermaid-svg-7OCNQR87RcndZkJU .activeCritText1,#mermaid-svg-7OCNQR87RcndZkJU .activeCritText2,#mermaid-svg-7OCNQR87RcndZkJU .activeCritText3{fill:#000 !important}#mermaid-svg-7OCNQR87RcndZkJU .titleText{text-anchor:middle;font-size:18px;fill:#000;font-family:'trebuchet ms', verdana, arial;font-family:var(--mermaid-font-family)}#mermaid-svg-7OCNQR87RcndZkJU g.classGroup text{fill:#9370db;stroke:none;font-family:'trebuchet ms', verdana, arial;font-family:var(--mermaid-font-family);font-size:10px}#mermaid-svg-7OCNQR87RcndZkJU g.classGroup text .title{font-weight:bolder}#mermaid-svg-7OCNQR87RcndZkJU g.clickable{cursor:pointer}#mermaid-svg-7OCNQR87RcndZkJU g.classGroup rect{fill:#ECECFF;stroke:#9370db}#mermaid-svg-7OCNQR87RcndZkJU g.classGroup line{stroke:#9370db;stroke-width:1}#mermaid-svg-7OCNQR87RcndZkJU .classLabel .box{stroke:none;stroke-width:0;fill:#ECECFF;opacity:0.5}#mermaid-svg-7OCNQR87RcndZkJU .classLabel .label{fill:#9370db;font-size:10px}#mermaid-svg-7OCNQR87RcndZkJU .relation{stroke:#9370db;stroke-width:1;fill:none}#mermaid-svg-7OCNQR87RcndZkJU .dashed-line{stroke-dasharray:3}#mermaid-svg-7OCNQR87RcndZkJU #compositionStart{fill:#9370db;stroke:#9370db;stroke-width:1}#mermaid-svg-7OCNQR87RcndZkJU #compositionEnd{fill:#9370db;stroke:#9370db;stroke-width:1}#mermaid-svg-7OCNQR87RcndZkJU #aggregationStart{fill:#ECECFF;stroke:#9370db;stroke-width:1}#mermaid-svg-7OCNQR87RcndZkJU #aggregationEnd{fill:#ECECFF;stroke:#9370db;stroke-width:1}#mermaid-svg-7OCNQR87RcndZkJU #dependencyStart{fill:#9370db;stroke:#9370db;stroke-width:1}#mermaid-svg-7OCNQR87RcndZkJU #dependencyEnd{fill:#9370db;stroke:#9370db;stroke-width:1}#mermaid-svg-7OCNQR87RcndZkJU #extensionStart{fill:#9370db;stroke:#9370db;stroke-width:1}#mermaid-svg-7OCNQR87RcndZkJU #extensionEnd{fill:#9370db;stroke:#9370db;stroke-width:1}#mermaid-svg-7OCNQR87RcndZkJU .commit-id,#mermaid-svg-7OCNQR87RcndZkJU .commit-msg,#mermaid-svg-7OCNQR87RcndZkJU .branch-label{fill:lightgrey;color:lightgrey;font-family:'trebuchet ms', verdana, arial;font-family:var(--mermaid-font-family)}#mermaid-svg-7OCNQR87RcndZkJU .pieTitleText{text-anchor:middle;font-size:25px;fill:#000;font-family:'trebuchet ms', verdana, arial;font-family:var(--mermaid-font-family)}#mermaid-svg-7OCNQR87RcndZkJU .slice{font-family:'trebuchet ms', verdana, arial;font-family:var(--mermaid-font-family)}#mermaid-svg-7OCNQR87RcndZkJU g.stateGroup text{fill:#9370db;stroke:none;font-size:10px;font-family:'trebuchet ms', verdana, arial;font-family:var(--mermaid-font-family)}#mermaid-svg-7OCNQR87RcndZkJU g.stateGroup text{fill:#9370db;fill:#333;stroke:none;font-size:10px}#mermaid-svg-7OCNQR87RcndZkJU g.statediagram-cluster .cluster-label text{fill:#333}#mermaid-svg-7OCNQR87RcndZkJU g.stateGroup .state-title{font-weight:bolder;fill:#000}#mermaid-svg-7OCNQR87RcndZkJU g.stateGroup rect{fill:#ECECFF;stroke:#9370db}#mermaid-svg-7OCNQR87RcndZkJU g.stateGroup line{stroke:#9370db;stroke-width:1}#mermaid-svg-7OCNQR87RcndZkJU .transition{stroke:#9370db;stroke-width:1;fill:none}#mermaid-svg-7OCNQR87RcndZkJU .stateGroup .composit{fill:white;border-bottom:1px}#mermaid-svg-7OCNQR87RcndZkJU .stateGroup .alt-composit{fill:#e0e0e0;border-bottom:1px}#mermaid-svg-7OCNQR87RcndZkJU .state-note{stroke:#aa3;fill:#fff5ad}#mermaid-svg-7OCNQR87RcndZkJU .state-note text{fill:black;stroke:none;font-size:10px}#mermaid-svg-7OCNQR87RcndZkJU .stateLabel .box{stroke:none;stroke-width:0;fill:#ECECFF;opacity:0.7}#mermaid-svg-7OCNQR87RcndZkJU .edgeLabel text{fill:#333}#mermaid-svg-7OCNQR87RcndZkJU .stateLabel text{fill:#000;font-size:10px;font-weight:bold;font-family:'trebuchet ms', verdana, arial;font-family:var(--mermaid-font-family)}#mermaid-svg-7OCNQR87RcndZkJU .node circle.state-start{fill:black;stroke:black}#mermaid-svg-7OCNQR87RcndZkJU .node circle.state-end{fill:black;stroke:white;stroke-width:1.5}#mermaid-svg-7OCNQR87RcndZkJU #statediagram-barbEnd{fill:#9370db}#mermaid-svg-7OCNQR87RcndZkJU .statediagram-cluster rect{fill:#ECECFF;stroke:#9370db;stroke-width:1px}#mermaid-svg-7OCNQR87RcndZkJU .statediagram-cluster rect.outer{rx:5px;ry:5px}#mermaid-svg-7OCNQR87RcndZkJU .statediagram-state .divider{stroke:#9370db}#mermaid-svg-7OCNQR87RcndZkJU .statediagram-state .title-state{rx:5px;ry:5px}#mermaid-svg-7OCNQR87RcndZkJU .statediagram-cluster.statediagram-cluster .inner{fill:white}#mermaid-svg-7OCNQR87RcndZkJU .statediagram-cluster.statediagram-cluster-alt .inner{fill:#e0e0e0}#mermaid-svg-7OCNQR87RcndZkJU .statediagram-cluster .inner{rx:0;ry:0}#mermaid-svg-7OCNQR87RcndZkJU .statediagram-state rect.basic{rx:5px;ry:5px}#mermaid-svg-7OCNQR87RcndZkJU .statediagram-state rect.divider{stroke-dasharray:10,10;fill:#efefef}#mermaid-svg-7OCNQR87RcndZkJU .note-edge{stroke-dasharray:5}#mermaid-svg-7OCNQR87RcndZkJU .statediagram-note rect{fill:#fff5ad;stroke:#aa3;stroke-width:1px;rx:0;ry:0}:root{--mermaid-font-family: '"trebuchet ms", verdana, arial';--mermaid-font-family: "Comic Sans MS", "Comic Sans", cursive}#mermaid-svg-7OCNQR87RcndZkJU .error-icon{fill:#522}#mermaid-svg-7OCNQR87RcndZkJU .error-text{fill:#522;stroke:#522}#mermaid-svg-7OCNQR87RcndZkJU .edge-thickness-normal{stroke-width:2px}#mermaid-svg-7OCNQR87RcndZkJU .edge-thickness-thick{stroke-width:3.5px}#mermaid-svg-7OCNQR87RcndZkJU .edge-pattern-solid{stroke-dasharray:0}#mermaid-svg-7OCNQR87RcndZkJU .edge-pattern-dashed{stroke-dasharray:3}#mermaid-svg-7OCNQR87RcndZkJU .edge-pattern-dotted{stroke-dasharray:2}#mermaid-svg-7OCNQR87RcndZkJU .marker{fill:#333}#mermaid-svg-7OCNQR87RcndZkJU .marker.cross{stroke:#333}
:root { --mermaid-font-family: "trebuchet ms", verdana, arial;}
#mermaid-svg-7OCNQR87RcndZkJU {
color: rgba(0, 0, 0, 0.75);
font: ;
}
发起者
响应者
HDR, SA, VIDs
HDR, SA, VID
HDR, KE, Ni, NAT-D, NAT-D
HDR, KE, Nr, NAT-D, NAT-D
*HDR,IDii, [CERT, ] SIG_I
*HDR,IDii, [CERT, ] SIG_R
发起者
响应者
判断依据：
- 计算对端的IP地址和端口的哈希值hash1, 然后与报文中NAT-D中对端计算的哈希值HASH1进行比较，如果不同，说明对端的IP地址或者端口发生了变化，因此对端设备是位于NAT设备之后的。
- 计算本端的IP地址和端口的哈希值hash2, 然后和报文中NAT-D负载中对端的计算结果HASH2进行比较，如果不同，则说明本端的IP地址或者端口发生了变化，因此本端设备是位于NAT设备之后的。

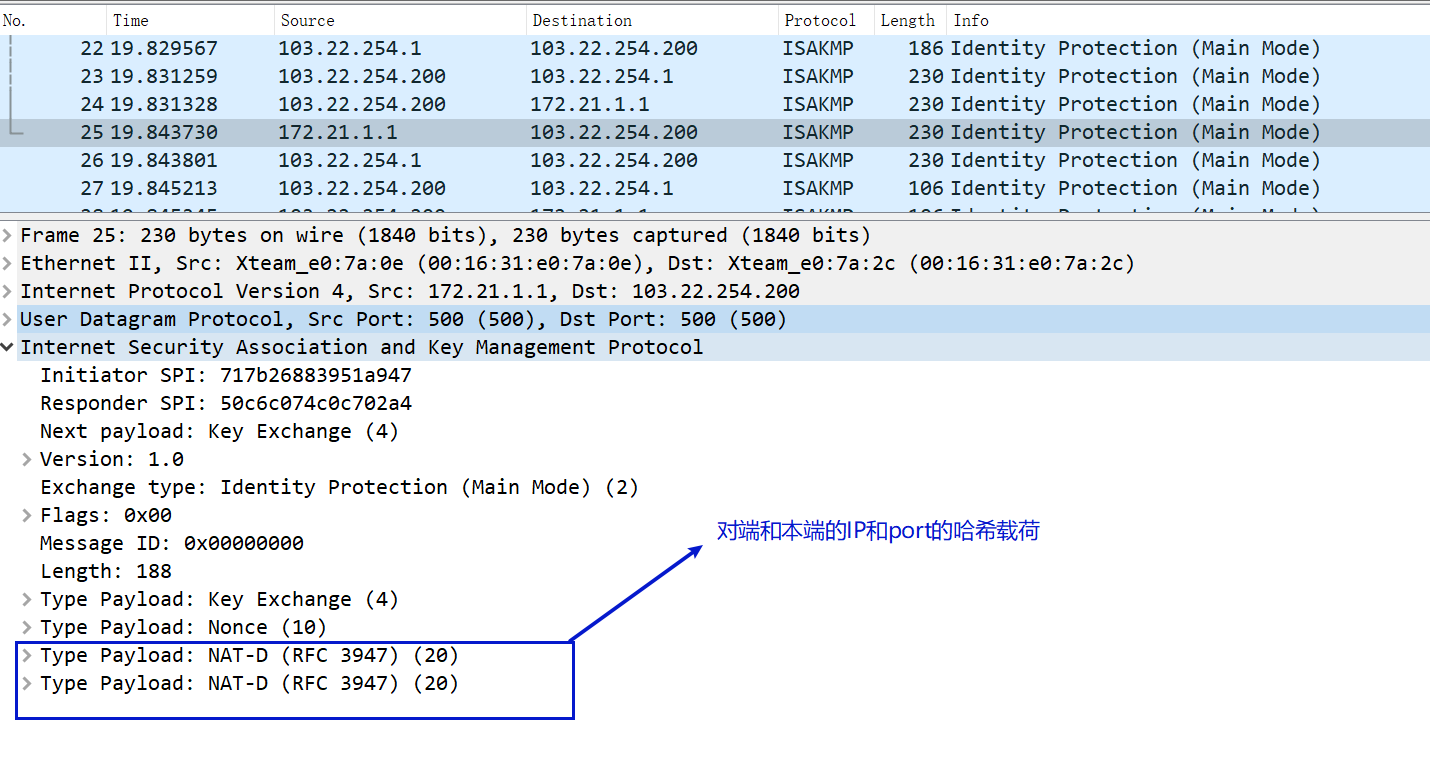

- 由于响应端在第三个报文时便可以知道链路上的NAT情况，但是发送端还不清楚，因此响应端需要将本端和对端的哈希值计算后填充到第四个报文的NAT-D负载中发送给发起端。
2.3 openswan源码说明
在openswan源码中，NAT-T的类型（包括选用的NAT-T标准, NAT情况）存储在st->hidden_variables.st_nat_traversal之中，用位来表示（高31---- 低0）：
其中：
| NAT-T类型（标准） | st_nat_traversal中的位 |
|---|---|
| NAT_TRAVERSAL_IETF_00_01 | 第1位 |
| NAT_TRAVERSAL_IETF_02_03 | 第2位 |
| NAT_TRAVERSAL_RFC | 第3位 |
| 对端设备NAT | 第31位 |
| 本端设备NAT | 第30位 |
3. IKE端口浮动几个疑问
3.1 IKE端口浮动的原因
端口浮动的原因在于有些NAT设备对于500端口的报文不做NAT转换，从而导致NAT穿越失败。至于都包括哪些设备，暂不清楚。因此将端口浮动到4500后，方便NAT设备进行映射转换，从而实现NAT-T穿越。
3.2 IKE端口浮动是必须的吗？
首先说明，端口浮动不是必须的，但是现在通常情况下是进行端口浮动的：即如果有NAT-T存在，则IKE端口会从500切换到4500。
3.3 IKE端口浮动一定是浮动到4500吗？
IKE端口浮动肯定是将端口由500浮动到4500的（包括源端口和目的端口），但是中间的NAT设备如果支持端口映射的话，那么一般是将源端口做一个映射, 源端口做映射对于IPSEC影响并不大，但是要求IPsec能够响应来自任意端口的报文（下图中的X便是经过NAPT映射后的IPsec报文）。NAT设备做端口映射的目的主要为了为了实现多路分解和复用。
#mermaid-svg-Te43dUWWbQd9xDPY .label{font-family:'trebuchet ms', verdana, arial;font-family:var(--mermaid-font-family);fill:#333;color:#333}#mermaid-svg-Te43dUWWbQd9xDPY .label text{fill:#333}#mermaid-svg-Te43dUWWbQd9xDPY .node rect,#mermaid-svg-Te43dUWWbQd9xDPY .node circle,#mermaid-svg-Te43dUWWbQd9xDPY .node ellipse,#mermaid-svg-Te43dUWWbQd9xDPY .node polygon,#mermaid-svg-Te43dUWWbQd9xDPY .node path{fill:#ECECFF;stroke:#9370db;stroke-width:1px}#mermaid-svg-Te43dUWWbQd9xDPY .node .label{text-align:center;fill:#333}#mermaid-svg-Te43dUWWbQd9xDPY .node.clickable{cursor:pointer}#mermaid-svg-Te43dUWWbQd9xDPY .arrowheadPath{fill:#333}#mermaid-svg-Te43dUWWbQd9xDPY .edgePath .path{stroke:#333;stroke-width:1.5px}#mermaid-svg-Te43dUWWbQd9xDPY .flowchart-link{stroke:#333;fill:none}#mermaid-svg-Te43dUWWbQd9xDPY .edgeLabel{background-color:#e8e8e8;text-align:center}#mermaid-svg-Te43dUWWbQd9xDPY .edgeLabel rect{opacity:0.9}#mermaid-svg-Te43dUWWbQd9xDPY .edgeLabel span{color:#333}#mermaid-svg-Te43dUWWbQd9xDPY .cluster rect{fill:#ffffde;stroke:#aa3;stroke-width:1px}#mermaid-svg-Te43dUWWbQd9xDPY .cluster text{fill:#333}#mermaid-svg-Te43dUWWbQd9xDPY div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:'trebuchet ms', verdana, arial;font-family:var(--mermaid-font-family);font-size:12px;background:#ffffde;border:1px solid #aa3;border-radius:2px;pointer-events:none;z-index:100}#mermaid-svg-Te43dUWWbQd9xDPY .actor{stroke:#ccf;fill:#ECECFF}#mermaid-svg-Te43dUWWbQd9xDPY text.actor>tspan{fill:#000;stroke:none}#mermaid-svg-Te43dUWWbQd9xDPY .actor-line{stroke:grey}#mermaid-svg-Te43dUWWbQd9xDPY .messageLine0{stroke-width:1.5;stroke-dasharray:none;stroke:#333}#mermaid-svg-Te43dUWWbQd9xDPY .messageLine1{stroke-width:1.5;stroke-dasharray:2, 2;stroke:#333}#mermaid-svg-Te43dUWWbQd9xDPY #arrowhead path{fill:#333;stroke:#333}#mermaid-svg-Te43dUWWbQd9xDPY .sequenceNumber{fill:#fff}#mermaid-svg-Te43dUWWbQd9xDPY #sequencenumber{fill:#333}#mermaid-svg-Te43dUWWbQd9xDPY #crosshead path{fill:#333;stroke:#333}#mermaid-svg-Te43dUWWbQd9xDPY .messageText{fill:#333;stroke:#333}#mermaid-svg-Te43dUWWbQd9xDPY .labelBox{stroke:#ccf;fill:#ECECFF}#mermaid-svg-Te43dUWWbQd9xDPY .labelText,#mermaid-svg-Te43dUWWbQd9xDPY .labelText>tspan{fill:#000;stroke:none}#mermaid-svg-Te43dUWWbQd9xDPY .loopText,#mermaid-svg-Te43dUWWbQd9xDPY .loopText>tspan{fill:#000;stroke:none}#mermaid-svg-Te43dUWWbQd9xDPY .loopLine{stroke-width:2px;stroke-dasharray:2, 2;stroke:#ccf;fill:#ccf}#mermaid-svg-Te43dUWWbQd9xDPY .note{stroke:#aa3;fill:#fff5ad}#mermaid-svg-Te43dUWWbQd9xDPY .noteText,#mermaid-svg-Te43dUWWbQd9xDPY .noteText>tspan{fill:#000;stroke:none}#mermaid-svg-Te43dUWWbQd9xDPY .activation0{fill:#f4f4f4;stroke:#666}#mermaid-svg-Te43dUWWbQd9xDPY .activation1{fill:#f4f4f4;stroke:#666}#mermaid-svg-Te43dUWWbQd9xDPY .activation2{fill:#f4f4f4;stroke:#666}#mermaid-svg-Te43dUWWbQd9xDPY .mermaid-main-font{font-family:"trebuchet ms", verdana, arial;font-family:var(--mermaid-font-family)}#mermaid-svg-Te43dUWWbQd9xDPY .section{stroke:none;opacity:0.2}#mermaid-svg-Te43dUWWbQd9xDPY .section0{fill:rgba(102,102,255,0.49)}#mermaid-svg-Te43dUWWbQd9xDPY .section2{fill:#fff400}#mermaid-svg-Te43dUWWbQd9xDPY .section1,#mermaid-svg-Te43dUWWbQd9xDPY .section3{fill:#fff;opacity:0.2}#mermaid-svg-Te43dUWWbQd9xDPY .sectionTitle0{fill:#333}#mermaid-svg-Te43dUWWbQd9xDPY .sectionTitle1{fill:#333}#mermaid-svg-Te43dUWWbQd9xDPY .sectionTitle2{fill:#333}#mermaid-svg-Te43dUWWbQd9xDPY .sectionTitle3{fill:#333}#mermaid-svg-Te43dUWWbQd9xDPY .sectionTitle{text-anchor:start;font-size:11px;text-height:14px;font-family:'trebuchet ms', verdana, arial;font-family:var(--mermaid-font-family)}#mermaid-svg-Te43dUWWbQd9xDPY .grid .tick{stroke:#d3d3d3;opacity:0.8;shape-rendering:crispEdges}#mermaid-svg-Te43dUWWbQd9xDPY .grid .tick text{font-family:'trebuchet ms', verdana, arial;font-family:var(--mermaid-font-family)}#mermaid-svg-Te43dUWWbQd9xDPY .grid path{stroke-width:0}#mermaid-svg-Te43dUWWbQd9xDPY .today{fill:none;stroke:red;stroke-width:2px}#mermaid-svg-Te43dUWWbQd9xDPY .task{stroke-width:2}#mermaid-svg-Te43dUWWbQd9xDPY .taskText{text-anchor:middle;font-family:'trebuchet ms', verdana, arial;font-family:var(--mermaid-font-family)}#mermaid-svg-Te43dUWWbQd9xDPY .taskText:not([font-size]){font-size:11px}#mermaid-svg-Te43dUWWbQd9xDPY .taskTextOutsideRight{fill:#000;text-anchor:start;font-size:11px;font-family:'trebuchet ms', verdana, arial;font-family:var(--mermaid-font-family)}#mermaid-svg-Te43dUWWbQd9xDPY .taskTextOutsideLeft{fill:#000;text-anchor:end;font-size:11px}#mermaid-svg-Te43dUWWbQd9xDPY .task.clickable{cursor:pointer}#mermaid-svg-Te43dUWWbQd9xDPY .taskText.clickable{cursor:pointer;fill:#003163 !important;font-weight:bold}#mermaid-svg-Te43dUWWbQd9xDPY .taskTextOutsideLeft.clickable{cursor:pointer;fill:#003163 !important;font-weight:bold}#mermaid-svg-Te43dUWWbQd9xDPY .taskTextOutsideRight.clickable{cursor:pointer;fill:#003163 !important;font-weight:bold}#mermaid-svg-Te43dUWWbQd9xDPY .taskText0,#mermaid-svg-Te43dUWWbQd9xDPY .taskText1,#mermaid-svg-Te43dUWWbQd9xDPY .taskText2,#mermaid-svg-Te43dUWWbQd9xDPY .taskText3{fill:#fff}#mermaid-svg-Te43dUWWbQd9xDPY .task0,#mermaid-svg-Te43dUWWbQd9xDPY .task1,#mermaid-svg-Te43dUWWbQd9xDPY .task2,#mermaid-svg-Te43dUWWbQd9xDPY .task3{fill:#8a90dd;stroke:#534fbc}#mermaid-svg-Te43dUWWbQd9xDPY .taskTextOutside0,#mermaid-svg-Te43dUWWbQd9xDPY .taskTextOutside2{fill:#000}#mermaid-svg-Te43dUWWbQd9xDPY .taskTextOutside1,#mermaid-svg-Te43dUWWbQd9xDPY .taskTextOutside3{fill:#000}#mermaid-svg-Te43dUWWbQd9xDPY .active0,#mermaid-svg-Te43dUWWbQd9xDPY .active1,#mermaid-svg-Te43dUWWbQd9xDPY .active2,#mermaid-svg-Te43dUWWbQd9xDPY .active3{fill:#bfc7ff;stroke:#534fbc}#mermaid-svg-Te43dUWWbQd9xDPY .activeText0,#mermaid-svg-Te43dUWWbQd9xDPY .activeText1,#mermaid-svg-Te43dUWWbQd9xDPY .activeText2,#mermaid-svg-Te43dUWWbQd9xDPY .activeText3{fill:#000 !important}#mermaid-svg-Te43dUWWbQd9xDPY .done0,#mermaid-svg-Te43dUWWbQd9xDPY .done1,#mermaid-svg-Te43dUWWbQd9xDPY .done2,#mermaid-svg-Te43dUWWbQd9xDPY .done3{stroke:grey;fill:#d3d3d3;stroke-width:2}#mermaid-svg-Te43dUWWbQd9xDPY .doneText0,#mermaid-svg-Te43dUWWbQd9xDPY .doneText1,#mermaid-svg-Te43dUWWbQd9xDPY .doneText2,#mermaid-svg-Te43dUWWbQd9xDPY .doneText3{fill:#000 !important}#mermaid-svg-Te43dUWWbQd9xDPY .crit0,#mermaid-svg-Te43dUWWbQd9xDPY .crit1,#mermaid-svg-Te43dUWWbQd9xDPY .crit2,#mermaid-svg-Te43dUWWbQd9xDPY .crit3{stroke:#f88;fill:red;stroke-width:2}#mermaid-svg-Te43dUWWbQd9xDPY .activeCrit0,#mermaid-svg-Te43dUWWbQd9xDPY .activeCrit1,#mermaid-svg-Te43dUWWbQd9xDPY .activeCrit2,#mermaid-svg-Te43dUWWbQd9xDPY .activeCrit3{stroke:#f88;fill:#bfc7ff;stroke-width:2}#mermaid-svg-Te43dUWWbQd9xDPY .doneCrit0,#mermaid-svg-Te43dUWWbQd9xDPY .doneCrit1,#mermaid-svg-Te43dUWWbQd9xDPY .doneCrit2,#mermaid-svg-Te43dUWWbQd9xDPY .doneCrit3{stroke:#f88;fill:#d3d3d3;stroke-width:2;cursor:pointer;shape-rendering:crispEdges}#mermaid-svg-Te43dUWWbQd9xDPY .milestone{transform:rotate(45deg) scale(0.8, 0.8)}#mermaid-svg-Te43dUWWbQd9xDPY .milestoneText{font-style:italic}#mermaid-svg-Te43dUWWbQd9xDPY .doneCritText0,#mermaid-svg-Te43dUWWbQd9xDPY .doneCritText1,#mermaid-svg-Te43dUWWbQd9xDPY .doneCritText2,#mermaid-svg-Te43dUWWbQd9xDPY .doneCritText3{fill:#000 !important}#mermaid-svg-Te43dUWWbQd9xDPY .activeCritText0,#mermaid-svg-Te43dUWWbQd9xDPY .activeCritText1,#mermaid-svg-Te43dUWWbQd9xDPY .activeCritText2,#mermaid-svg-Te43dUWWbQd9xDPY .activeCritText3{fill:#000 !important}#mermaid-svg-Te43dUWWbQd9xDPY .titleText{text-anchor:middle;font-size:18px;fill:#000;font-family:'trebuchet ms', verdana, arial;font-family:var(--mermaid-font-family)}#mermaid-svg-Te43dUWWbQd9xDPY g.classGroup text{fill:#9370db;stroke:none;font-family:'trebuchet ms', verdana, arial;font-family:var(--mermaid-font-family);font-size:10px}#mermaid-svg-Te43dUWWbQd9xDPY g.classGroup text .title{font-weight:bolder}#mermaid-svg-Te43dUWWbQd9xDPY g.clickable{cursor:pointer}#mermaid-svg-Te43dUWWbQd9xDPY g.classGroup rect{fill:#ECECFF;stroke:#9370db}#mermaid-svg-Te43dUWWbQd9xDPY g.classGroup line{stroke:#9370db;stroke-width:1}#mermaid-svg-Te43dUWWbQd9xDPY .classLabel .box{stroke:none;stroke-width:0;fill:#ECECFF;opacity:0.5}#mermaid-svg-Te43dUWWbQd9xDPY .classLabel .label{fill:#9370db;font-size:10px}#mermaid-svg-Te43dUWWbQd9xDPY .relation{stroke:#9370db;stroke-width:1;fill:none}#mermaid-svg-Te43dUWWbQd9xDPY .dashed-line{stroke-dasharray:3}#mermaid-svg-Te43dUWWbQd9xDPY #compositionStart{fill:#9370db;stroke:#9370db;stroke-width:1}#mermaid-svg-Te43dUWWbQd9xDPY #compositionEnd{fill:#9370db;stroke:#9370db;stroke-width:1}#mermaid-svg-Te43dUWWbQd9xDPY #aggregationStart{fill:#ECECFF;stroke:#9370db;stroke-width:1}#mermaid-svg-Te43dUWWbQd9xDPY #aggregationEnd{fill:#ECECFF;stroke:#9370db;stroke-width:1}#mermaid-svg-Te43dUWWbQd9xDPY #dependencyStart{fill:#9370db;stroke:#9370db;stroke-width:1}#mermaid-svg-Te43dUWWbQd9xDPY #dependencyEnd{fill:#9370db;stroke:#9370db;stroke-width:1}#mermaid-svg-Te43dUWWbQd9xDPY #extensionStart{fill:#9370db;stroke:#9370db;stroke-width:1}#mermaid-svg-Te43dUWWbQd9xDPY #extensionEnd{fill:#9370db;stroke:#9370db;stroke-width:1}#mermaid-svg-Te43dUWWbQd9xDPY .commit-id,#mermaid-svg-Te43dUWWbQd9xDPY .commit-msg,#mermaid-svg-Te43dUWWbQd9xDPY .branch-label{fill:lightgrey;color:lightgrey;font-family:'trebuchet ms', verdana, arial;font-family:var(--mermaid-font-family)}#mermaid-svg-Te43dUWWbQd9xDPY .pieTitleText{text-anchor:middle;font-size:25px;fill:#000;font-family:'trebuchet ms', verdana, arial;font-family:var(--mermaid-font-family)}#mermaid-svg-Te43dUWWbQd9xDPY .slice{font-family:'trebuchet ms', verdana, arial;font-family:var(--mermaid-font-family)}#mermaid-svg-Te43dUWWbQd9xDPY g.stateGroup text{fill:#9370db;stroke:none;font-size:10px;font-family:'trebuchet ms', verdana, arial;font-family:var(--mermaid-font-family)}#mermaid-svg-Te43dUWWbQd9xDPY g.stateGroup text{fill:#9370db;fill:#333;stroke:none;font-size:10px}#mermaid-svg-Te43dUWWbQd9xDPY g.statediagram-cluster .cluster-label text{fill:#333}#mermaid-svg-Te43dUWWbQd9xDPY g.stateGroup .state-title{font-weight:bolder;fill:#000}#mermaid-svg-Te43dUWWbQd9xDPY g.stateGroup rect{fill:#ECECFF;stroke:#9370db}#mermaid-svg-Te43dUWWbQd9xDPY g.stateGroup line{stroke:#9370db;stroke-width:1}#mermaid-svg-Te43dUWWbQd9xDPY .transition{stroke:#9370db;stroke-width:1;fill:none}#mermaid-svg-Te43dUWWbQd9xDPY .stateGroup .composit{fill:white;border-bottom:1px}#mermaid-svg-Te43dUWWbQd9xDPY .stateGroup .alt-composit{fill:#e0e0e0;border-bottom:1px}#mermaid-svg-Te43dUWWbQd9xDPY .state-note{stroke:#aa3;fill:#fff5ad}#mermaid-svg-Te43dUWWbQd9xDPY .state-note text{fill:black;stroke:none;font-size:10px}#mermaid-svg-Te43dUWWbQd9xDPY .stateLabel .box{stroke:none;stroke-width:0;fill:#ECECFF;opacity:0.7}#mermaid-svg-Te43dUWWbQd9xDPY .edgeLabel text{fill:#333}#mermaid-svg-Te43dUWWbQd9xDPY .stateLabel text{fill:#000;font-size:10px;font-weight:bold;font-family:'trebuchet ms', verdana, arial;font-family:var(--mermaid-font-family)}#mermaid-svg-Te43dUWWbQd9xDPY .node circle.state-start{fill:black;stroke:black}#mermaid-svg-Te43dUWWbQd9xDPY .node circle.state-end{fill:black;stroke:white;stroke-width:1.5}#mermaid-svg-Te43dUWWbQd9xDPY #statediagram-barbEnd{fill:#9370db}#mermaid-svg-Te43dUWWbQd9xDPY .statediagram-cluster rect{fill:#ECECFF;stroke:#9370db;stroke-width:1px}#mermaid-svg-Te43dUWWbQd9xDPY .statediagram-cluster rect.outer{rx:5px;ry:5px}#mermaid-svg-Te43dUWWbQd9xDPY .statediagram-state .divider{stroke:#9370db}#mermaid-svg-Te43dUWWbQd9xDPY .statediagram-state .title-state{rx:5px;ry:5px}#mermaid-svg-Te43dUWWbQd9xDPY .statediagram-cluster.statediagram-cluster .inner{fill:white}#mermaid-svg-Te43dUWWbQd9xDPY .statediagram-cluster.statediagram-cluster-alt .inner{fill:#e0e0e0}#mermaid-svg-Te43dUWWbQd9xDPY .statediagram-cluster .inner{rx:0;ry:0}#mermaid-svg-Te43dUWWbQd9xDPY .statediagram-state rect.basic{rx:5px;ry:5px}#mermaid-svg-Te43dUWWbQd9xDPY .statediagram-state rect.divider{stroke-dasharray:10,10;fill:#efefef}#mermaid-svg-Te43dUWWbQd9xDPY .note-edge{stroke-dasharray:5}#mermaid-svg-Te43dUWWbQd9xDPY .statediagram-note rect{fill:#fff5ad;stroke:#aa3;stroke-width:1px;rx:0;ry:0}:root{--mermaid-font-family: '"trebuchet ms", verdana, arial';--mermaid-font-family: "Comic Sans MS", "Comic Sans", cursive}#mermaid-svg-Te43dUWWbQd9xDPY .error-icon{fill:#522}#mermaid-svg-Te43dUWWbQd9xDPY .error-text{fill:#522;stroke:#522}#mermaid-svg-Te43dUWWbQd9xDPY .edge-thickness-normal{stroke-width:2px}#mermaid-svg-Te43dUWWbQd9xDPY .edge-thickness-thick{stroke-width:3.5px}#mermaid-svg-Te43dUWWbQd9xDPY .edge-pattern-solid{stroke-dasharray:0}#mermaid-svg-Te43dUWWbQd9xDPY .edge-pattern-dashed{stroke-dasharray:3}#mermaid-svg-Te43dUWWbQd9xDPY .edge-pattern-dotted{stroke-dasharray:2}#mermaid-svg-Te43dUWWbQd9xDPY .marker{fill:#333}#mermaid-svg-Te43dUWWbQd9xDPY .marker.cross{stroke:#333}
:root { --mermaid-font-family: "trebuchet ms", verdana, arial;}
#mermaid-svg-Te43dUWWbQd9xDPY {
color: rgba(0, 0, 0, 0.75);
font: ;
}
