前一段时间学习了Runtime,对类和对象的结构,和一些消息转发有一些自己的理解,现在希望简单的应用下,就决定自己写一个简单的JSON与Model的相互转化,现在总结下。

建议查看

  • 参考资料 :Runtime学习笔记

    http://lastdays.cn/2016/02/22/runtime/

  • 项目地址: LYModelData

    https://github.com/MrLoong/LYModelData

观察下面这个JSON数据和Model数据

NSString *girlFriend = @"白菜";

id parmenters = @{

@"girlFriend":girlFriend,

@"age":@22.1,

@"name":@"Lastdays",

@"time":@"2016-03-18 5:55:49 +0000"

};

@interface Model : NSObject

@property NSNumber *age;

@property NSString *name;

@property NSString *girlFriend;

@property NSData *time;

@end

开始的时候仔细想了一下,如何能够动态的去添加属性值,并且根据对应的属性进行赋值,还要保证类型正确,这是我最开始考虑的问题。但是最核心问题就是动态实现。

我们一步一步来解决问题,首先我们先获取Model属性,取得Model的一些信息

获取Model属性

runtime提供了class_copyPropertyList来获取属性列表,OK,我们可以来看一下用它获取的数据是什么样的?查看runtime源码

/***********************************************************************

* class_copyPropertyList. Returns a heap block containing the

* properties declared in the class, or nil if the class

* declares no properties. Caller must free the block.

* Does not copy any superclass's properties.

**********************************************************************/

objc_property_t *class_copyPropertyList(Class cls, unsigned int *outCount)

{

old_property_list *plist;

uintptr_t iterator = 0;

old_property **result = nil;

unsigned int count = 0;

unsigned int p, i;

if (!cls) {

if (outCount) *outCount = 0;

return nil;

}

mutex_locker_t lock(classLock);

iterator = 0;

while ((plist = nextPropertyList(cls, &iterator))) {

count += plist->count;

}

if (count > 0) {

result = (old_property **)malloc((count+1) * sizeof(old_property *));

p = 0;

iterator = 0;

while ((plist = nextPropertyList(cls, &iterator))) {

for (i = 0; i < plist->count; i++) {

result[p++] = property_list_nth(plist, i);

}

}

result[p] = nil;

}

if (outCount) *outCount = count;

return (objc_property_t *)result;

}

typedef struct old_property *objc_property_t;

struct old_property {

const char *name;

const char *attributes;

};

```

从上面的三段runtime源码中,课本上就能判断出,其实返回结果就是一些old_property,并且每个old_property中含有对应的name和其他信息。

总结起来说就是**class_copyPropertyList**获取Model属性列表,属性列表里面的objc_property_t包含着这个属性的类型和名字等一些信息。

根据刚才的分析设计出以下结构:

``` bash

-(id)modelToJsonObject:(NSObject *)model{

Class cls = self.class;

unsigned int countProperty = 0;

objc_property_t *propertys = class_copyPropertyList(cls,&countProperty);

NSMutableDictionary *dic = [NSMutableDictionary new];

for (unsigned int i = 0; i<countProperty; i++) {

PropertyInfo *propertyInfo = [[PropertyInfo alloc] initWithProperty:propertys[i]];

if (propertyInfo.propertyName!=nil) {

dic[propertyInfo.propertyName] = [self LYModelSetJsonObjectWith:model propertyInfo:propertyInfo];

}

}

return dic;

}

PropertyInfo也就是属性信息,我们将Model的所有属性存放到NSMutableDictionary中,key就是属性名,Value就是PropertyInfo。

接下来开始获取Model的属性信息PropertyInfo

我们可以通过property_getName来获取属性名,查看源码

const char *property_getName(objc_property_t prop)

{

return oldproperty(prop)->name;

}

接下来就是获取属性的类型和一些其他的信息。获取属性的信息其实和上面的原理差不多,我们使用property_copyAttributeList,查看下它的源码

objc_property_attribute_t *property_copyAttributeList(objc_property_t prop,

unsigned int *outCount)

{

if (!prop) {

if (outCount) *outCount = 0;

return nil;

}

mutex_locker_t lock(classLock);

return copyPropertyAttributeList(oldproperty(prop)->attributes,outCount);

}

看到这里,不往下继续分析源码了,其实可以看到,attributes就是我们想要的信息,其实每个property也是有自己对应的attributes。

这个attributes是什么样呢?翻看源码,找到了答案

typedef struct {

const char *name;

const char *value;

} objc_property_attribute_t;

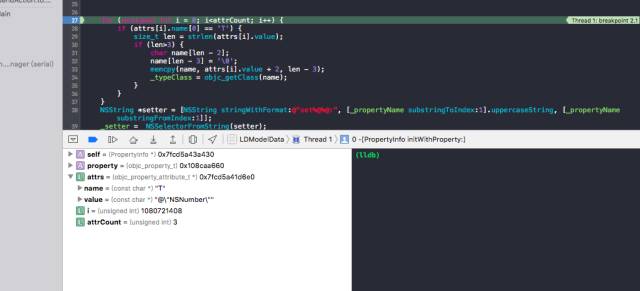

加一下断点,看看

可以看到,name是T,Value是NSNumber,我们来获取下NSNumber这个属性类型。

for (unsigned int i = 0; i<attrCount; i++) {

if (attrs[i].name[0] == 'T') {

size_t len = strlen(attrs[i].value);

if (len>3) {

char name[len - 2];

name[len - 3] = '';

memcpy(name, attrs[i].value + 2, len - 3);

_typeClass = objc_getClass(name);

}

}

}

基本上我们想要的信息基本上都已经获取到了,现在接下来就是做动态设定。

中间做个插曲简单的说下Objc是动态语言,[receiver message]的执行过程当中,[receiver message]是会被动态编译的,Objc是动态语言,因此它会想尽办法将编译连接推迟到运行时来做。runtime这个时实运行系统就是来执行编译后的代码。想详细了解,欢迎阅读Runtime学习笔记

http://lastdays.cn/2016/02/22/runtime/

在这个消息发送过程中,objc_msgSend充当着很重要的角色,所以我们可以主动触发objc_msgSend,来模拟getter,setter方法获取属性值,或者建立。

我们通过SEL来定义选择器,选择器是什么?就是方法名的唯一标识符

根据刚才的想法,编写的代码最后是这个样子

-(instancetype)initWithProperty:(objc_property_t)property{

_property = property;

const char *name = property_getName(property);

if (name) {

_propertyName = [NSString stringWithUTF8String:name];

}

unsigned int attrCount;

objc_property_attribute_t *attrs = property_copyAttributeList(property, &attrCount);

for (unsigned int i = 0; i<attrCount; i++) {

if (attrs[i].name[0] == 'T') {

size_t len = strlen(attrs[i].value);

if (len>3) {

char name[len - 2];

name[len - 3] = '';

memcpy(name, attrs[i].value + 2, len - 3);

_typeClass = objc_getClass(name);

}

}

}

NSString *setter = [NSString stringWithFormat:@"set%@%@:", [_propertyName substringToIndex:1].uppercaseString, [_propertyName substringFromIndex:1]];

_setter =  NSSelectorFromString(setter);

_getter = NSSelectorFromString(_propertyName);

return self;

}

基本的准备工作,和一些问题都解决了,接下来可以写功能了。

JSON转Model

根据刚才说的,我们可以主动触发objc_msgSend,来模拟setter方法建立属性值。设计出以下方法

-(void)LYModelSetPropertyWithModel:(id) model value:(id)value propertyInfo:(PropertyInfo *) propertyInfo{

((void (*)(id, SEL, id))(void *) objc_msgSend)((id)model, propertyInfo.setter, value);

}

我们将Model的所有属性存放到NSMutableDictionary中,key就是属性名,Value就是PropertyInfo。

现在就可以动态设定了

-(BOOL)LYModelSelectProperties:(NSDictionary *)dictonary{

ClassInfo *cls = [[ClassInfo alloc]initWithClass:object_getClass(self)];

id key, value;

NSArray *keys = [dictonary allKeys];

NSUInteger count = [keys count];

for (int i = 0; i < count; i++){

key = [keys objectAtIndex: i];

value = [dictonary objectForKey: key];

if (cls.propertyInfo[key]) {

[self LYModelSetPropertyWithModel:self value:value propertyInfo:cls.propertyInfo[key]];

}

}

return YES;

}

完成动态设定

Model转JSON

原理跟JSON转Model

我们可以主动触发objc_msgSend,来模拟getter方法来获取属性值。

-(id)LYModelSetJsonObjectWith:(id)model propertyInfo:(PropertyInfo *)propertyInfo{

id value = ((id (*)(id, SEL))(void *) objc_msgSend)((id)model, propertyInfo.getter);

return value;

}

建立NSDictionary

-(id)modelToJsonObject:(NSObject *)model{

Class cls = self.class;

unsigned int countProperty = 0;

objc_property_t *propertys = class_copyPropertyList(cls,&countProperty);

NSMutableDictionary *dic = [NSMutableDictionary new];

for (unsigned int i = 0; i<countProperty; i++) {

PropertyInfo *propertyInfo = [[PropertyInfo alloc] initWithProperty:propertys[i]];

if (propertyInfo.propertyName!=nil) {

dic[propertyInfo.propertyName] = [self LYModelSetJsonWith:model propertyInfo:propertyInfo];

}

}

return dic;

}

完成获取

测试

NSString *girlFriend = @"白菜";

id parmenters = @{

@"girlFriend":girlFriend,

@"age":@22.1,

@"name":@"Lastdays",

@"time":@"2016-03-18 5:55:49 +0000"

};

Model *model = [Model LYModelWithJSON:parmenters];

NSLog(@"%@",model.girlFriend);

NSLog(@"%@",model.name);

NSLog(@"%@",model.age);

NSLog(@"%@",model.time);

NSLog(@"========================================");

NSDictionary *jsonObject= [model LYModelToJson];

NSLog(@"%@",jsonObject);

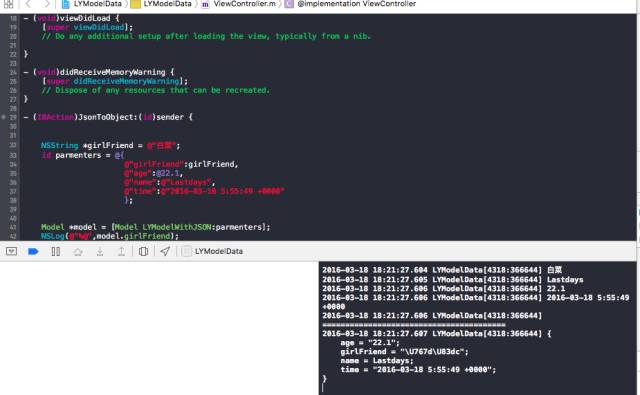

结果:

总结

简单的JSON Model转换库,关键点就是在于对runtime的理解。就当自己的一个小练习,后续会继续维护,让它对更多类型进行支持。代码结构上可能不是那么好,后续会将整体的结构重新设计下,增加可读性,也欢迎来提出建议。
