Spring boot+Spring Security 4配置整合实例

本例所覆盖的内容：

1. 使用Spring Security管理用户身份认证、登录退出

2. 用户密码加密及验证

3. 采用数据库的方式实现Spring Security的remember-me功能

4. 获取登录用户信息。

5.使用Spring Security管理url和权限

本例所使用的框架：

1. Spring boot

2. Spring MVC

3. Spring Security

4. Spring Data JPA

5. thymeleaf

6.gradle

一、 整合Spring Security

在build.gradle中加入如下片段：

1. compile('org.springframework.boot:spring-boot-starter-data-jpa')
2. compile("org.springframework.boot:spring-boot-starter-thymeleaf")
3. compile("org.springframework.boot:spring-boot-starter-security")<u>
4. testCompile("org.springframework.boot:spring-boot-starter-test")
5. testCompile("org.springframework.security:spring-security-test")

    compile('org.springframework.boot:spring-boot-starter-data-jpa')
    compile("org.springframework.boot:spring-boot-starter-thymeleaf")
    compile("org.springframework.boot:spring-boot-starter-security")
    testCompile("org.springframework.boot:spring-boot-starter-test")
    testCompile("org.springframework.security:spring-security-test")

使用Spring Security4的四种方法概述

那么在Spring Security4的使用中，有4种方法：

1. 一种是全部利用配置文件，将用户、权限、资源(url)硬编码在xml文件中；
2. 二种是用户和权限用数据库存储，而资源(url)和权限的对应采用硬编码配置。
3. 三种是细分角色和权限，并将用户、角色、权限和资源均采用数据库存储，并且自定义过滤器，代替原有的FilterSecurityInterceptor过滤器         并分别实现AccessDecisionManager、InvocationSecurityMetadataSourceService和UserDetailsService，并在配置文件中进行相应配置。
4. 四是修改spring security的源代码，主要是修改InvocationSecurityMetadataSourceService和UserDetailsService两个类。 前者是将配置文件     或数据库中存储的资源(url)提取出来加工成为url和权限列表的Map供Security使用，后者提取用户名和权限组成一个完整的(UserDetails)User
       对象，该对象可以提供用户的详细信息供AuthentationManager进行认证与授权使用。

我们今天来实现一下第三种。

当然，spring security4毕竟是西方国家的东西，以英文为主，使用习惯和文化的差异共存，况且为了适应大多数Web应用的权限管理，作者将Spring Security4打造的精简而灵活。精简指Spring Security4对用户和权限的表设计的非常简单，并且没有采用数据库来管理资源（URL）。这样的话，对于我们国人用户来说，是个很大的遗憾，这个遗憾甚至能够影响到我们对安全框架的选型。你想啊，在国内大多数项目中，均设置了比较复杂的权限控制，一般就会涉及到用户、角色、资源3张表，若要加上3张表之间的对应关系表2张，得有5张表。

但是，Spring Security4提供了灵活的扩展方法。具体应该扩展哪些类呢？ 或者到底Spring Security3工作的流程如何，你不妨参看下面一篇文章，就会获得

一些启示，网址为：http://www.blogjava.net/SpartaYew/archive/2011/06/15/350630.html， 哈哈，谢谢分享。

还有一个地址很有价值，http://download.csdn.net/detail/muddled/8981809，我就参考着上面的介绍扩展了4个类。

首先来说一下第三种方法的实现流程，我画了一张简易版流程图，帮助大家理解spring security4 的工作机制：

下面我们就来根据这个图中标注出的，重要的几个4个类来配置吧！

1. 当然要现在application.properties配置文件中配置好数据库。
2. 开始配置相关的实体类 SysUser.java  SRole.java  SysResource.java SysResourceRole.java
3. 1. package security.entity;
   2. import java.util.Date;
   3. import java.util.HashSet;
   4. import java.util.Set;
   5. import javax.persistence.Column;
   6. import javax.persistence.Entity;
   7. import javax.persistence.FetchType;
   8. import javax.persistence.GeneratedValue;
   9. import javax.persistence.GenerationType;
   10. import javax.persistence.Id;
   11. import javax.persistence.OneToMany;
   12. import javax.persistence.Table;
   13. import javax.persistence.Temporal;
   14. import javax.persistence.TemporalType;
   15. @Entity
   16. @Table(name = "s_user")//code11
   17. public class SysUser implements java.io.Serializable {
   18. @Id
   19. @GeneratedValue(strategy = GenerationType.IDENTITY)
   20. @Column(name = "id", unique = true, nullable = false)
   21. private Integer id;
   22. @Column(name = "name", length = 120)
   23. private String name; //用户名
   24. @Column(name = "email", length = 50)
   25. private String email;//用户邮箱
   26. @Column(name = "password", length = 120)
   27. private String password;//用户密码
   28. @Temporal(TemporalType.DATE)
   29. @Column(name = "dob", length = 10)
   30. private Date dob;//时间
   31. @OneToMany(fetch = FetchType.EAGER, mappedBy = "SUser")
   32. private Set<SysRole> SysRoles = new HashSet<SysRole>(0);// 所对应的角色集合
   33. public SysUser() {
   34. }
   35. public SysUser(String name, String email, String password, Date dob, Set<SysRole> SysRoles) {
   36. this.name = name;
   37. this.email = email;
   38. this.password = password;
   39. this.dob = dob;
   40. this.SysRoles = SysRoles;
   41. }
   42. public Integer getId() {
   43. return this.id;
   44. }
   45. public void setId(Integer id) {
   46. this.id = id;
   47. }
   48. public String getName() {
   49. return this.name;
   50. }
   51. public void setName(String name) {
   52. this.name = name;
   53. }
   54. public String getEmail() {
   55. return this.email;
   56. }
   57. public void setEmail(String email) {
   58. this.email = email;
   59. }
   60. public String getPassword() {
   61. return this.password;
   62. }
   63. public void setPassword(String password) {
   64. this.password = password;
   65. }
   66. public Date getDob() {
   67. return this.dob;
   68. }
   69. public void setDob(Date dob) {
   70. this.dob = dob;
   71. }
   72. @OneToMany(fetch = FetchType.EAGER, mappedBy = "SUser")
   73. public Set<SysRole> getSysRoles() {
   74. return this.SysRoles;
   75. }
   76. public void setSRoles(Set<SysRole> SysRoles) {
   77. this.SysRoles = SysRoles;
   78. }
   79. }

   package security.entity;

   import java.util.Date;

   import java.util.HashSet;

   import java.util.Set;

   import javax.persistence.Column;

   import javax.persistence.Entity;

   import javax.persistence.FetchType;

   import javax.persistence.GeneratedValue;

   import javax.persistence.GenerationType;

   import javax.persistence.Id;

   import javax.persistence.OneToMany;

   import javax.persistence.Table;

   import javax.persistence.Temporal;

   import javax.persistence.TemporalType;

   @Entity

   @Table(name = "s_user")//code11

   public class SysUser implements java.io.Serializable {
   	@Id
   	@GeneratedValue(strategy = GenerationType.IDENTITY)
   	@Column(name = "id", unique = true, nullable = false)
   	private Integer id;
   	@Column(name = "name", length = 120)
   	private String name; //用户名
   	@Column(name = "email", length = 50)
   	private String email;//用户邮箱
   	@Column(name = "password", length = 120)
   	private String password;//用户密码
   	@Temporal(TemporalType.DATE)
   	@Column(name = "dob", length = 10)
   	private Date dob;//时间

   	@OneToMany(fetch = FetchType.EAGER, mappedBy = "SUser")
   	private Set<SysRole> SysRoles = new HashSet<SysRole>(0);// 所对应的角色集合

   	public SysUser() {
   	}

   	public SysUser(String name, String email, String password, Date dob, Set<SysRole> SysRoles) {
   		this.name = name;
   		this.email = email;
   		this.password = password;
   		this.dob = dob;
   		this.SysRoles = SysRoles;
   	}

   	public Integer getId() {
   		return this.id;
   	}

   	public void setId(Integer id) {
   		this.id = id;
   	}

   	public String getName() {
   		return this.name;
   	}

   	public void setName(String name) {
   		this.name = name;
   	}

   	public String getEmail() {
   		return this.email;
   	}

   	public void setEmail(String email) {
   		this.email = email;
   	}

   	public String getPassword() {
   		return this.password;
   	}

   	public void setPassword(String password) {
   		this.password = password;
   	}

   	public Date getDob() {
   		return this.dob;
   	}

   	public void setDob(Date dob) {
   		this.dob = dob;
   	}

   	@OneToMany(fetch = FetchType.EAGER, mappedBy = "SUser")
   	public Set<SysRole> getSysRoles() {
   		return this.SysRoles;
   	}

   	public void setSRoles(Set<SysRole> SysRoles) {
   		this.SysRoles = SysRoles;
   	}

   }


   1. package security.entity;
   2.
   3. import java.util.Date;
   4.
   5. import javax.persistence.Column;
   6. import javax.persistence.Entity;
   7. import javax.persistence.FetchType;
   8. import javax.persistence.GeneratedValue;
   9. import javax.persistence.GenerationType;
   10. import javax.persistence.Id;
   11. import javax.persistence.JoinColumn;
   12. import javax.persistence.ManyToOne;
   13. import javax.persistence.Table;
   14. //角色表
   15. @Entity
   16. @Table(name="s_role")
   17. public class SysRole {
   18.     @Id
   19.     @GeneratedValue(strategy=GenerationType.IDENTITY)
   20.     @Column (name="id",length=10)
   21.     private int id;
   22.
   23.     @ManyToOne(fetch = FetchType.LAZY)
   24.     @JoinColumn(name = "uid", nullable = false)
   25.     private SysUser SUser;//角色对应的用户实体
   26.
   27.     @Column(name="name",length=100)
   28.     private String name;//角色名称
   29.
   30.     public int getId() {
   31.         return id;
   32.     }
   33.     public void setId(int id) {
   34.         this.id = id;
   35.     }
   36.
   37.     public String getName() {
   38.         return name;
   39.     }
   40.     public void setName(String name) {
   41.         this.name = name;
   42.     }
   43.     public SysUser getSUser() {
   44.         return SUser;
   45.     }
   46.     public void setSUser(SysUser sUser) {
   47.         SUser = sUser;
   48.     }
   49.
   50.
   51. }

   package security.entity;

   import java.util.Date;

   import javax.persistence.Column;

   import javax.persistence.Entity;

   import javax.persistence.FetchType;

   import javax.persistence.GeneratedValue;

   import javax.persistence.GenerationType;

   import javax.persistence.Id;

   import javax.persistence.JoinColumn;

   import javax.persistence.ManyToOne;

   import javax.persistence.Table;

   //角色表

   @Entity

   @Table(name="s_role")

   public class SysRole {

   @Id

   @GeneratedValue(strategy=GenerationType.IDENTITY)

   @Column (name="id",length=10)

   private int id;
   @ManyToOne(fetch = FetchType.LAZY)
   @JoinColumn(name = "uid", nullable = false)
   private SysUser SUser;//角色对应的用户实体

   @Column(name="name",length=100)
   private String name;//角色名称

   public int getId() {
   	return id;
   }
   public void setId(int id) {
   	this.id = id;
   }

   public String getName() {
   	return name;
   }
   public void setName(String name) {
   	this.name = name;
   }
   public SysUser getSUser() {
   	return SUser;
   }
   public void setSUser(SysUser sUser) {
   	SUser = sUser;
   }

   }


   1. package cn.paybay.ticketManager.entity;
   2.
   3. import javax.persistence.Column;
   4. import javax.persistence.Entity;
   5. import javax.persistence.GeneratedValue;
   6. import javax.persistence.GenerationType;
   7. import javax.persistence.Id;
   8. import javax.persistence.Table;
   9. @Entity
   10. @Table(name="s_resource")
   11. public class SysResource {
   12.         @Id
   13.         @GeneratedValue(strategy=GenerationType.IDENTITY)
   14.         @Column (name="id",length=10)
   15.         private int id;
   16.
   17.         @Column(name="resourceString",length=1000)
   18.         private String resourceString;//url
   19.
   20.         @Column(name="resourceId",length=50)
   21.         private String resourceId;//资源ID
   22.
   23.         @Column(name="remark",length=200)
   24.         private String remark;//备注
   25.
   26.         @Column(name="resourceName",length=400)
   27.         private String resourceName;//资源名称
   28.
   29.         @Column(name="methodName",length=400)
   30.         private String methodName;//资源所对应的方法名
   31.
   32.         @Column(name="methodPath",length=1000)
   33.         private String methodPath;//资源所对应的包路径
   34.
   35.         public int getId() {
   36.             return id;
   37.         }
   38.
   39.         public void setId(int id) {
   40.             this.id = id;
   41.         }
   42.
   43.         public String getResourceString() {
   44.             return resourceString;
   45.         }
   46.
   47.         public void setResourceString(String resourceString) {
   48.             this.resourceString = resourceString;
   49.         }
   50.
   51.         public String getResourceId() {
   52.             return resourceId;
   53.         }
   54.
   55.         public void setResourceId(String resourceId) {
   56.             this.resourceId = resourceId;
   57.         }
   58.
   59.         public String getRemark() {
   60.             return remark;
   61.         }
   62.
   63.         public void setRemark(String remark) {
   64.             this.remark = remark;
   65.         }
   66.
   67.         public String getResourceName() {
   68.             return resourceName;
   69.         }
   70.
   71.         public void setResourceName(String resourceName) {
   72.             this.resourceName = resourceName;
   73.         }
   74.
   75.         public String getMethodName() {
   76.             return methodName;
   77.         }
   78.
   79.         public void setMethodName(String methodName) {
   80.             this.methodName = methodName;
   81.         }
   82.
   83.         public String getMethodPath() {
   84.             return methodPath;
   85.         }
   86.
   87.         public void setMethodPath(String methodPath) {
   88.             this.methodPath = methodPath;
   89.         }
   90.
   91.
   92. }

   package cn.paybay.ticketManager.entity;

   import javax.persistence.Column;

   import javax.persistence.Entity;

   import javax.persistence.GeneratedValue;

   import javax.persistence.GenerationType;

   import javax.persistence.Id;

   import javax.persistence.Table;

   @Entity

   @Table(name="s_resource")

   public class SysResource {

   @Id

   @GeneratedValue(strategy=GenerationType.IDENTITY)

   @Column (name="id",length=10)

   private int id;
   	@Column(name="resourceString",length=1000)
   	private String resourceString;//url

   	@Column(name="resourceId",length=50)
   	private String resourceId;//资源ID

   	@Column(name="remark",length=200)
   	private String remark;//备注

   	@Column(name="resourceName",length=400)
   	private String resourceName;//资源名称

   	@Column(name="methodName",length=400)
   	private String methodName;//资源所对应的方法名

   	@Column(name="methodPath",length=1000)
   	private String methodPath;//资源所对应的包路径

   	public int getId() {
   		return id;
   	}

   	public void setId(int id) {
   		this.id = id;
   	}

   	public String getResourceString() {
   		return resourceString;
   	}

   	public void setResourceString(String resourceString) {
   		this.resourceString = resourceString;
   	}

   	public String getResourceId() {
   		return resourceId;
   	}

   	public void setResourceId(String resourceId) {
   		this.resourceId = resourceId;
   	}

   	public String getRemark() {
   		return remark;
   	}

   	public void setRemark(String remark) {
   		this.remark = remark;
   	}

   	public String getResourceName() {
   		return resourceName;
   	}

   	public void setResourceName(String resourceName) {
   		this.resourceName = resourceName;
   	}

   	public String getMethodName() {
   		return methodName;
   	}

   	public void setMethodName(String methodName) {
   		this.methodName = methodName;
   	}

   	public String getMethodPath() {
   		return methodPath;
   	}

   	public void setMethodPath(String methodPath) {
   		this.methodPath = methodPath;
   	}

   }


   1. package security.entity;
   2.
   3. import java.util.Date;
   4.
   5. import javax.persistence.Column;
   6. import javax.persistence.Entity;
   7. import javax.persistence.FetchType;
   8. import javax.persistence.GeneratedValue;
   9. import javax.persistence.GenerationType;
   10. import javax.persistence.Id;
   11. import javax.persistence.JoinColumn;
   12. import javax.persistence.ManyToOne;
   13. import javax.persistence.Table;
   14. @Entity
   15. @Table(name="s_resource_role")
   16. public class SysResourceRole {
   17.         @Id
   18.         @GeneratedValue(strategy=GenerationType.IDENTITY)
   19.         @Column (name="id",length=10)
   20.         private int id;
   21.
   22.         @Column(name="roleId",length=50)
   23.         private String roleId; //角色ID
   24.
   25.         @Column(name="resourceId",length=50)
   26.         private String resourceId;//资源ID
   27.
   28.         @Column(name="updateTime")
   29.         private Date updateTime;//更新时间
   30.
   31.         public int getId() {
   32.             return id;
   33.         }
   34.
   35.         public void setId(int id) {
   36.             this.id = id;
   37.         }
   38.
   39.         public String getRoleId() {
   40.             return roleId;
   41.         }
   42.
   43.         public void setRoleId(String roleId) {
   44.             this.roleId = roleId;
   45.         }
   46.
   47.         public String getResourceId() {
   48.             return resourceId;
   49.         }
   50.
   51.         public void setResourceId(String resourceId) {
   52.             this.resourceId = resourceId;
   53.         }
   54.
   55.         public Date getUpdateTime() {
   56.             return updateTime;
   57.         }
   58.
   59.         public void setUpdateTime(Date updateTime) {
   60.             this.updateTime = updateTime;
   61.         }
   62.
   63.
   64. }

   package security.entity;

   import java.util.Date;

   import javax.persistence.Column;

   import javax.persistence.Entity;

   import javax.persistence.FetchType;

   import javax.persistence.GeneratedValue;

   import javax.persistence.GenerationType;

   import javax.persistence.Id;

   import javax.persistence.JoinColumn;

   import javax.persistence.ManyToOne;

   import javax.persistence.Table;

   @Entity

   @Table(name="s_resource_role")

   public class SysResourceRole {

   @Id

   @GeneratedValue(strategy=GenerationType.IDENTITY)

   @Column (name="id",length=10)

   private int id;
   	@Column(name="roleId",length=50)
   	private String roleId; //角色ID

   	@Column(name="resourceId",length=50)
   	private String resourceId;//资源ID

   	@Column(name="updateTime")
   	private Date updateTime;//更新时间

   	public int getId() {
   		return id;
   	}

   	public void setId(int id) {
   		this.id = id;
   	}

   	public String getRoleId() {
   		return roleId;
   	}

   	public void setRoleId(String roleId) {
   		this.roleId = roleId;
   	}

   	public String getResourceId() {
   		return resourceId;
   	}

   	public void setResourceId(String resourceId) {
   		this.resourceId = resourceId;
   	}

   	public Date getUpdateTime() {
   		return updateTime;
   	}

   	public void setUpdateTime(Date updateTime) {
   		this.updateTime = updateTime;
   	}

   }


   好了实体类都建好了。然后运行一下，springboot程序。hibernate会自动创建表。在表中插入几条测试数据：

4. s_user表
5. s_role表

6.s_resource表

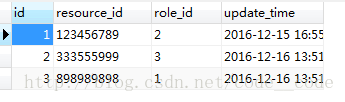

7.s_resource_role表

1. <span style="color:rgb(51,204,0);">//请勿手工写入数据 供remember-me功能使用</span>
2. CREATE TABLE `persistent_logins` (
3. `username` varchar(64) NOT NULL,
4. `series` varchar(64) NOT NULL,
5. `token` varchar(64) NOT NULL,
6. `last_used` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP,
7. PRIMARY KEY (`series`)
8. )

//请勿手工写入数据 供remember-me功能使用
CREATE TABLE `persistent_logins` (
  `username` varchar(64) NOT NULL,
  `series` varchar(64) NOT NULL,
  `token` varchar(64) NOT NULL,
  `last_used` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP,
  PRIMARY KEY (`series`)
)

好了，现在我们来配置一下用户和角色的认证吧。

1、首先，创建WebSecurityConfig.java配置类，其中不明所以的地方请参照上面的图，慢慢往下看。

1. package security;
2. import org.springframework.beans.factory.annotation.Autowired;
3. import org.springframework.context.annotation.Bean;
4. import org.springframework.context.annotation.Configuration;
5. import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
6. import org.springframework.security.config.annotation.web.builders.HttpSecurity;
7. import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
8. import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
9. import org.springframework.security.config.annotation.web.servlet.configuration.EnableWebMvcSecurity;
10. import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
11. import security.support.CustomUserDetailsService;
12. import security.support.LoginSuccessHandler;
13. @Configuration
14. @EnableWebSecurity
15. public class WebSecurityConfig extends WebSecurityConfigurerAdapter {
16. @Autowired
17. private CustomUserDetailsService customUserDetailsService;
18. //http://localhost:8080/login 输入正确的用户名密码 并且选中remember-me 则登陆成功，转到 index页面
19. //再次访问index页面无需登录直接访问
20. //访问http://localhost:8080/home 不拦截，直接访问，
21. //访问http://localhost:8080/hello 需要登录验证后，且具备 “ADMIN”权限hasAuthority("ADMIN")才可以访问
22. @Override
23. protected void configure(HttpSecurity http) throws Exception {
24. http
25. .authorizeRequests()
26. .antMatchers("/home").permitAll()//访问：/home 无需登录认证权限
27. .anyRequest().authenticated() //其他所有资源都需要认证，登陆后访问
28. .antMatchers("/hello").hasAuthority("ADMIN") //登陆后之后拥有“ADMIN”权限才可以访问/hello方法，否则系统会出现“403”权限不足的提示
29. .and()
30. .formLogin()
31. .loginPage("/login")//指定登录页是”/login”
32. .permitAll()
33. .successHandler(loginSuccessHandler()) //登录成功后可使用loginSuccessHandler()存储用户信息，可选。
34. .and()
35. .logout()
36. .logoutSuccessUrl("/home") //退出登录后的默认网址是”/home”
37. .permitAll()
38. .invalidateHttpSession(true)
39. .and()
40. .rememberMe()//登录后记住用户，下次自动登录,数据库中必须存在名为persistent_logins的表
41. .tokenValiditySeconds(1209600);
42. }
43. @Autowired
44. public void configureGlobal(AuthenticationManagerBuilder auth) throws Exception {
45. //指定密码加密所使用的加密器为passwordEncoder()
46. //需要将密码加密后写入数据库
47. auth.userDetailsService(customUserDetailsService).passwordEncoder(passwordEncoder());
48. auth.eraseCredentials(false);
49. }
50. @Bean
51. public BCryptPasswordEncoder passwordEncoder() {
52. return new BCryptPasswordEncoder(4);
53. }
54. @Bean
55. public LoginSuccessHandler loginSuccessHandler(){
56. return new LoginSuccessHandler();
57. }
58. }

package security;

import org.springframework.beans.factory.annotation.Autowired;

import org.springframework.context.annotation.Bean;

import org.springframework.context.annotation.Configuration;

import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;

import org.springframework.security.config.annotation.web.builders.HttpSecurity;

import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;

import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;

import org.springframework.security.config.annotation.web.servlet.configuration.EnableWebMvcSecurity;

import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;

import security.support.CustomUserDetailsService;

import security.support.LoginSuccessHandler;

@Configuration

@EnableWebSecurity

public class WebSecurityConfig extends WebSecurityConfigurerAdapter {

@Autowired

private CustomUserDetailsService customUserDetailsService;

//http://localhost:8080/login 输入正确的用户名密码 并且选中remember-me 则登陆成功，转到 index页面

//再次访问index页面无需登录直接访问

//访问http://localhost:8080/home 不拦截，直接访问，

//访问http://localhost:8080/hello 需要登录验证后，且具备 “ADMIN”权限hasAuthority("ADMIN")才可以访问

@Override

protected void configure(HttpSecurity http) throws Exception {

http

.authorizeRequests()

.antMatchers("/home").permitAll()//访问：/home 无需登录认证权限

.anyRequest().authenticated() //其他所有资源都需要认证，登陆后访问

.antMatchers("/hello").hasAuthority("ADMIN") //登陆后之后拥有“ADMIN”权限才可以访问/hello方法，否则系统会出现“403”权限不足的提示

.and()

.formLogin()

.loginPage("/login")//指定登录页是”/login”

.permitAll()

.successHandler(loginSuccessHandler()) //登录成功后可使用loginSuccessHandler()存储用户信息，可选。

.and()

.logout()

.logoutSuccessUrl("/home") //退出登录后的默认网址是”/home”

.permitAll()

.invalidateHttpSession(true)

.and()

.rememberMe()//登录后记住用户，下次自动登录,数据库中必须存在名为persistent_logins的表

.tokenValiditySeconds(1209600);

}
@Autowired
public void configureGlobal(AuthenticationManagerBuilder auth) throws Exception {

//指定密码加密所使用的加密器为passwordEncoder()

//需要将密码加密后写入数据库

auth.userDetailsService(customUserDetailsService).passwordEncoder(passwordEncoder());

auth.eraseCredentials(false);

}
@Bean
public BCryptPasswordEncoder passwordEncoder() {
	return new BCryptPasswordEncoder(4);
}

@Bean
public LoginSuccessHandler loginSuccessHandler(){
	return new LoginSuccessHandler();
}

}

2、CustomUserDetailsService.java

1. package security.support;
2. import org.springframework.beans.factory.annotation.Autowired;
3. import org.springframework.security.core.userdetails.UserDetails;
4. import org.springframework.security.core.userdetails.UserDetailsService;
5. import org.springframework.security.core.userdetails.UsernameNotFoundException;
6. import org.springframework.stereotype.Component;
7. import security.entity.SysUser;
8. import security.entity.User;
9. import security.service.UserService;
10. @Component
11. public class CustomUserDetailsService implements UserDetailsService {
12. @Autowired  //业务服务类
13. private UserService userService;
14. @Override
15. public UserDetails loadUserByUsername(String userName) throws UsernameNotFoundException {
16. //SysUser对应数据库中的用户表，是最终存储用户和密码的表，可自定义
17. //本例使用SysUser中的name作为用户名:
18. SysUser user = userService.findByName(userName);
19. if (user == null) {
20. throw new UsernameNotFoundException("UserName " + userName + " not found");
21. }
22. // SecurityUser实现UserDetails并将SysUser的name映射为username
23. SecurityUser seu = new SecurityUser(user);
24. return  seu;
25. }
26. }

package security.support;

import org.springframework.beans.factory.annotation.Autowired;

import org.springframework.security.core.userdetails.UserDetails;

import org.springframework.security.core.userdetails.UserDetailsService;

import org.springframework.security.core.userdetails.UsernameNotFoundException;

import org.springframework.stereotype.Component;

import security.entity.SysUser;

import security.entity.User;

import security.service.UserService;

@Component

public class CustomUserDetailsService implements UserDetailsService {

@Autowired  //业务服务类

private UserService userService;
@Override
public UserDetails loadUserByUsername(String userName) throws UsernameNotFoundException {
    //SysUser对应数据库中的用户表，是最终存储用户和密码的表，可自定义
    //本例使用SysUser中的name作为用户名:
	SysUser user = userService.findByName(userName);
	if (user == null) {
		throw new UsernameNotFoundException("UserName " + userName + " not found");
	}
	// SecurityUser实现UserDetails并将SysUser的name映射为username
	SecurityUser seu = new SecurityUser(user);
	return  seu;
}

}

3、SecurityUser.java

1. package security.support;
2. import java.util.ArrayList;
3. import java.util.Collection;
4. import java.util.HashSet;
5. import java.util.List;
6. import java.util.Set;
7. import org.springframework.beans.factory.annotation.Autowired;
8. import org.springframework.security.core.GrantedAuthority;
9. import org.springframework.security.core.authority.SimpleGrantedAuthority;
10. import org.springframework.security.core.userdetails.UserDetails;
11. import security.entity.SysRole<span style="font-family:Arial, Helvetica, sans-serif;">;</span>
12. import security.entity.SysUser;
13. public class SecurityUser extends SysUser implements UserDetails {
14. private static final long serialVersionUID = 1L;
15. public SecurityUser(SysUser suser) {
16. if(suser != null)
17. {
18. this.setId(suser.getId());
19. this.setName(suser.getName());
20. this.setEmail(suser.getEmail());
21. this.setPassword(suser.getPassword());
22. this.setDob(suser.getDob());
23. this.setSysRoles(suser.getSysRoles());
24. }
25. }
26. @Override
27. public Collection<? extends GrantedAuthority> getAuthorities() {
28. Collection<GrantedAuthority> authorities = new ArrayList<>();
29. Set<SysRole> userRoles = this.getSysRoles();
30. if(userRoles != null)
31. {
32. for (SysRole role : userRoles) {
33. SimpleGrantedAuthority authority = new SimpleGrantedAuthority(role.getName());
34. authorities.add(authority);
35. }
36. }
37. return authorities;
38. }
39. @Override
40. public String getPassword() {
41. return super.getPassword();
42. }
43. @Override
44. public String getUsername() {
45. return super.getName();
46. }
47. @Override
48. public boolean isAccountNonExpired() {
49. return true;
50. }
51. @Override
52. public boolean isAccountNonLocked() {
53. return true;
54. }
55. @Override
56. public boolean isCredentialsNonExpired() {
57. return true;
58. }
59. @Override
60. public boolean isEnabled() {
61. return true;
62. }
63. }

package security.support;

import java.util.ArrayList;

import java.util.Collection;

import java.util.HashSet;

import java.util.List;

import java.util.Set;

import org.springframework.beans.factory.annotation.Autowired;

import org.springframework.security.core.GrantedAuthority;

import org.springframework.security.core.authority.SimpleGrantedAuthority;

import org.springframework.security.core.userdetails.UserDetails;

import security.entity.SysRole;

import security.entity.SysUser;

public class SecurityUser extends SysUser implements UserDetails {

private static final long serialVersionUID = 1L;

public SecurityUser(SysUser suser) {

if(suser != null)

{

this.setId(suser.getId());

this.setName(suser.getName());

this.setEmail(suser.getEmail());

this.setPassword(suser.getPassword());

this.setDob(suser.getDob());

this.setSysRoles(suser.getSysRoles());

}

}
@Override
public Collection<? extends GrantedAuthority> getAuthorities() {

	Collection<GrantedAuthority> authorities = new ArrayList<>();
	Set<SysRole> userRoles = this.getSysRoles();

	if(userRoles != null)
	{
		for (SysRole role : userRoles) {
			SimpleGrantedAuthority authority = new SimpleGrantedAuthority(role.getName());
			authorities.add(authority);
		}
	}
	return authorities;
}

@Override
public String getPassword() {
	return super.getPassword();
}

@Override
public String getUsername() {
	return super.getName();
}

@Override
public boolean isAccountNonExpired() {
	return true;
}

@Override
public boolean isAccountNonLocked() {
	return true;
}

@Override
public boolean isCredentialsNonExpired() {
	return true;
}

@Override
public boolean isEnabled() {
	return true;
}

}

4、LoginSuccessHandler.java

1. package security.support;
2. import java.io.IOException;
3. import java.util.Set;
4. import javax.servlet.ServletException;
5. import javax.servlet.http.HttpServletRequest;
6. import javax.servlet.http.HttpServletResponse;
7. import org.springframework.security.core.Authentication;
8. import org.springframework.security.web.authentication.SavedRequestAwareAuthenticationSuccessHandler;
9. import security.entity.SysRole;
10. import security.entity.SysUser;
11. public class LoginSuccessHandler extends
12. SavedRequestAwareAuthenticationSuccessHandler {
13. @Override
14. public void onAuthenticationSuccess(HttpServletRequest request,
15. HttpServletResponse response, Authentication authentication) throws IOException,
16. ServletException {
17. //获得授权后可得到用户信息   可使用SUserService进行数据库操作
18. SysUser userDetails = (SysUser)authentication.getPrincipal();
19. /* Set<SysRole> roles = userDetails.getSysRoles();*/
20. //输出登录提示信息
21. System.out.println("管理员 " + userDetails.getName() + " 登录");
22. System.out.println("IP :"+getIpAddress(request));
23. super.onAuthenticationSuccess(request, response, authentication);
24. }
25. public String getIpAddress(HttpServletRequest request){
26. String ip = request.getHeader("x-forwarded-for");
27. if (ip == null || ip.length() == 0 || "unknown".equalsIgnoreCase(ip)) {
28. ip = request.getHeader("Proxy-Client-IP");
29. }
30. if (ip == null || ip.length() == 0 || "unknown".equalsIgnoreCase(ip)) {
31. ip = request.getHeader("WL-Proxy-Client-IP");
32. }
33. if (ip == null || ip.length() == 0 || "unknown".equalsIgnoreCase(ip)) {
34. ip = request.getHeader("HTTP_CLIENT_IP");
35. }
36. if (ip == null || ip.length() == 0 || "unknown".equalsIgnoreCase(ip)) {
37. ip = request.getHeader("HTTP_X_FORWARDED_FOR");
38. }
39. if (ip == null || ip.length() == 0 || "unknown".equalsIgnoreCase(ip)) {
40. ip = request.getRemoteAddr();
41. }
42. return ip;
43. }
44. }

package security.support;

import java.io.IOException;

import java.util.Set;

import javax.servlet.ServletException;

import javax.servlet.http.HttpServletRequest;

import javax.servlet.http.HttpServletResponse;

import org.springframework.security.core.Authentication;

import org.springframework.security.web.authentication.SavedRequestAwareAuthenticationSuccessHandler;

import security.entity.SysRole;

import security.entity.SysUser;

public class LoginSuccessHandler extends

SavedRequestAwareAuthenticationSuccessHandler {

@Override

public void onAuthenticationSuccess(HttpServletRequest request,

HttpServletResponse response, Authentication authentication) throws IOException,

ServletException {

//获得授权后可得到用户信息   可使用SUserService进行数据库操作

SysUser userDetails = (SysUser)authentication.getPrincipal();

/* Set<SysRole> roles = userDetails.getSysRoles();*/

//输出登录提示信息

System.out.println("管理员 " + userDetails.getName() + " 登录");
    System.out.println("IP :"+getIpAddress(request));

    super.onAuthenticationSuccess(request, response, authentication);
}

public String getIpAddress(HttpServletRequest request){
    String ip = request.getHeader("x-forwarded-for");
    if (ip == null || ip.length() == 0 || "unknown".equalsIgnoreCase(ip)) {
        ip = request.getHeader("Proxy-Client-IP");
    }
    if (ip == null || ip.length() == 0 || "unknown".equalsIgnoreCase(ip)) {
        ip = request.getHeader("WL-Proxy-Client-IP");
    }
    if (ip == null || ip.length() == 0 || "unknown".equalsIgnoreCase(ip)) {
        ip = request.getHeader("HTTP_CLIENT_IP");
    }
    if (ip == null || ip.length() == 0 || "unknown".equalsIgnoreCase(ip)) {
        ip = request.getHeader("HTTP_X_FORWARDED_FOR");
    }
    if (ip == null || ip.length() == 0 || "unknown".equalsIgnoreCase(ip)) {
        ip = request.getRemoteAddr();
    }
    return ip;
}

}

5、MvcConfig.java

1. package security;
2. import org.springframework.context.annotation.Configuration;
3. import org.springframework.web.servlet.config.annotation.ViewControllerRegistry;
4. import org.springframework.web.servlet.config.annotation.WebMvcConfigurerAdapter;
5. @Configuration
6. public class MvcConfig extends WebMvcConfigurerAdapter {
7. @Override
8. public void addViewControllers(ViewControllerRegistry registry) {
9. registry.addViewController("/home").setViewName("home");
10. registry.addViewController("/").setViewName("home");
11. registry.addViewController("/hello").setViewName("hello");
12. registry.addViewController("/login").setViewName("login");
13. }
14. }

package security;

import org.springframework.context.annotation.Configuration;

import org.springframework.web.servlet.config.annotation.ViewControllerRegistry;

import org.springframework.web.servlet.config.annotation.WebMvcConfigurerAdapter;

@Configuration

public class MvcConfig extends WebMvcConfigurerAdapter {
@Override
public void addViewControllers(ViewControllerRegistry registry) {
	registry.addViewController("/home").setViewName("home");
    registry.addViewController("/").setViewName("home");
    registry.addViewController("/hello").setViewName("hello");
    registry.addViewController("/login").setViewName("login");
}

}

6、在resource下面创建templates目录，然后放相关的html文件：

home.html

1. <!DOCTYPE html>
2. <html xmlns="http://www.w3.org/1999/xhtml" xmlns:th="http://www.thymeleaf.org" xmlns:sec="http://www.thymeleaf.org/thymeleaf-extras-springsecurity3">
3. <head>
4. <title>Spring Security Example</title>
5. </head>
6. <body>
7. <h1>Welcome!</h1>
8. <p>Click <a th:href="@{/hello}">here</a> to see a greeting.</p>
9. </body>
10. </html>

<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml" xmlns:th="http://www.thymeleaf.org" xmlns:sec="http://www.thymeleaf.org/thymeleaf-extras-springsecurity3">
    <head>
        <title>Spring Security Example</title>
    </head>
    <body>
        <h1>Welcome!</h1>
    &lt;p&gt;Click &lt;a th:href="@{/hello}"&gt;here&lt;/a&gt; to see a greeting.&lt;/p&gt;
&lt;/body&gt;

</html>

hello.html

1. <!DOCTYPE html>
2. <html xmlns="http://www.w3.org/1999/xhtml" xmlns:th="http://www.thymeleaf.org"
3.       xmlns:sec="http://www.thymeleaf.org/thymeleaf-extras-springsecurity3">
4.     <head>
5.         <title>Hello World!</title>
6.     </head>
7.     <body>
8.         <h1 th:inline="text">Hello [[${#httpServletRequest.remoteUser}]]!</h1>
9.         <form th:action="@{/logout}" method="post">
10.             <input type="submit" value="Sign Out"/>
11.         </form>
12.     </body>
13. </html>

<!DOCTYPE html>

<html xmlns="http://www.w3.org/1999/xhtml" xmlns:th="http://www.thymeleaf.org"

xmlns:sec="http://www.thymeleaf.org/thymeleaf-extras-springsecurity3">

<head>

<title>Hello World!</title>

</head>

<body>

<h1 th:inline="text">Hello [[${#httpServletRequest.remoteUser}]]!</h1>

<form th:action="@{/logout}" method="post">

<input type="submit" value="Sign Out"/>

</form>

</body>

</html>

login.html

1. <!DOCTYPE html>
2. <html xmlns="http://www.w3.org/1999/xhtml" xmlns:th="http://www.thymeleaf.org"
3.       xmlns:sec="http://www.thymeleaf.org/thymeleaf-extras-springsecurity3">
4.     <head>
5.         <title>Spring Security Example </title>
6.     </head>
7.     <body>
8.         <div th:if="${param.error}">
9.             Invalid username and password.
10.         </div>
11.         <div th:if="${param.logout}">
12.             You have been logged out.
13.         </div>
14.         <form th:action="@{/login}" method="post">
15.             <div><label> User Name : <input type="text" name="username"/> </label></div>
16.             <div><label> Password: <input type="password" name="password"/> </label></div>
17.             <div><input type="submit" value="Sign In"/></div>
18.             <input type="checkbox" name="remember-me" value="true" th:checked="checked"/><p>Remember me</p>
19.         </form>
20.     </body>
21. </html>

<!DOCTYPE html>

<html xmlns="http://www.w3.org/1999/xhtml" xmlns:th="http://www.thymeleaf.org"

xmlns:sec="http://www.thymeleaf.org/thymeleaf-extras-springsecurity3">

<head>

<title>Spring Security Example </title>

</head>

<body>

<div th:if="${param.error}">

Invalid username and password.

</div>

<div th:if="${param.logout}">

You have been logged out.

</div>

<form th:action="@{/login}" method="post">

<div><label> User Name : <input type="text" name="username"/> </label></div>

<div><label> Password: <input type="password" name="password"/> </label></div>

<div><input type="submit" value="Sign In"/></div>

<input type="checkbox" name="remember-me" value="true" th:checked="checked"/><p>Remember me</p>

</form>

</body>

</html>

接下来是主类：MainApplication.java

1. package security;
2. import org.springframework.boot.SpringApplication;
3. import org.springframework.boot.autoconfigure.SpringBootApplication;
4. import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
5. import org.springframework.web.servlet.config.annotation.ViewControllerRegistry;
6. import org.springframework.web.servlet.config.annotation.WebMvcConfigurerAdapter;
7. import security.entity.SysUser;
8. import security.entity.User;
9. import security.service.UserService;
10. import security.Appctx;
11. @SpringBootApplication
12. public class MainApplication{
13. public static void main(String[] args) {
14. //SpringApplication.run(MainApplication.class, args);
15. SpringApplication app=new SpringApplication(MainApplication.class);
16. Appctx.ctx=app.run(args);
17. /*UserService suserService = (UserService) Appctx.ctx.getBean("suserService");
18. SysUser su= suserService.findByName("TEST");
19. BCryptPasswordEncoder bc=new BCryptPasswordEncoder(4);//将密码加密 可以先设置初始密码：000000
20. su.setPassword(bc.encode(su.getPassword()));//然后使用密码为key值进行加密，运行主类后，会自动加密密码，可连接数据库查看。
21. System.out.println("密码"+su.getPassword());
22. suserService.update(su);//运行一次后记得注释这段重复加密会无法匹配*/
23. }
24. }

package security;

import org.springframework.boot.SpringApplication;

import org.springframework.boot.autoconfigure.SpringBootApplication;

import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;

import org.springframework.web.servlet.config.annotation.ViewControllerRegistry;

import org.springframework.web.servlet.config.annotation.WebMvcConfigurerAdapter;

import security.entity.SysUser;

import security.entity.User;

import security.service.UserService;

import security.Appctx;

@SpringBootApplication

public class MainApplication{

public static void main(String[] args) {

//SpringApplication.run(MainApplication.class, args);

SpringApplication app=new SpringApplication(MainApplication.class);
	Appctx.ctx=app.run(args);
	/*UserService suserService = (UserService) Appctx.ctx.getBean("suserService");
	SysUser su= suserService.findByName("TEST");
    BCryptPasswordEncoder bc=new BCryptPasswordEncoder(4);//将密码加密 可以先设置初始密码：000000
    su.setPassword(bc.encode(su.getPassword()));//然后使用密码为key值进行加密，运行主类后，会自动加密密码，可连接数据库查看。
    System.out.println("密码"+su.getPassword());
    suserService.update(su);//运行一次后记得注释这段重复加密会无法匹配*/
}

}

Appctx.java

1. package security.support;
2. import org.springframework.context.ApplicationContext;
3. public class Appctx {
4. public static ApplicationContext ctx=null;
5. public static Object getObject(String string){
6. return ctx.getBean(string);
7. }
8. }

package security.support;

import org.springframework.context.ApplicationContext;

public class Appctx {

public static ApplicationContext ctx=null;

public static Object getObject(String string){

return ctx.getBean(string);

}

}

1. 运行，访问http://localhost:8080/hello，系统出现如下界面：

登陆成功后：

登陆拥有ADMIN权限的用户，可以进入/home

如果用户不具有权限，会出现以下：

好了，根据配置：.antMatchers("/hello").hasAuthority("ADMIN")。来进行权限控制，就到这里，下面，我们来根据数据库中的资源和权限的关系，进行授权和认证

1、CustomInvocationSecurityMetadataSourceService.java 参照流程图

1. /*
2. * @(#) MyInvocationSecurityMetadataSourceService.java  2011-3-23 下午02:58:29
3. *
4. * Copyright 2011 by Sparta
5. */
6. package security.support;
7. import java.util.ArrayList;
8. import java.util.Collection;
9. import java.util.HashMap;
10. import java.util.Iterator;
11. import java.util.List;
12. import java.util.Map;
13. import java.util.Map.Entry;
14. import java.util.Set;
15. import javax.annotation.PostConstruct;
16. import org.hibernate.Session;
17. import org.hibernate.SessionFactory;
18. import org.springframework.beans.factory.annotation.Autowired;
19. import org.springframework.context.ApplicationContext;
20. import org.springframework.context.support.ClassPathXmlApplicationContext;
21. import org.springframework.security.access.ConfigAttribute;
22. import org.springframework.security.access.SecurityConfig;
23. import org.springframework.security.core.GrantedAuthority;
24. import org.springframework.security.core.context.SecurityContextHolder;
25. import org.springframework.security.core.userdetails.UserDetails;
26. import org.springframework.security.web.FilterInvocation;
27. import org.springframework.security.web.access.intercept.FilterInvocationSecurityMetadataSource;
28. import org.springframework.security.web.util.matcher.AntPathRequestMatcher;
29. import org.springframework.security.web.util.matcher.RequestMatcher;
30. import org.springframework.stereotype.Component;
31. import org.springframework.stereotype.Service;
32. import security.dao.SResourceVODao;
33. import security.dao.SRoleDao;
34. import security.dao.SRoleVODao;
35. import security.entity.SRole;
36. import security.service.SResourceService;
37. import security.service.SRoleService;
38. /**
39. * 最核心的地方，就是提供某个资源对应的权限定义，即getAttributes方法返回的结果。 此类在初始化时，应该取到所有资源及其对应角色的定义。
40. *
41. */
42. @Service
43. public class CustomInvocationSecurityMetadataSourceService implements
44. FilterInvocationSecurityMetadataSource {
45. @Autowired
46. private SResourceVODao sResourceVODao;
47. @Autowired
48. private SRoleVODao sRoleVODao;
49. private static Map<String, Collection<ConfigAttribute>> resourceMap = null;
50. /*public CustomInvocationSecurityMetadataSourceService(SResourceService sres,SRoleService sR) {
51. this.sResourceService = sres;
52. this.sRoleService = sR;
53. loadResourceDefine();
54. }*/
55. @PostConstruct<span style="color:#33cc00;">//<span style="font-family:Helvetica, Tahoma, Arial, sans-serif;font-size:14px;line-height:25.1875px;">  </span><span style="font-family:Helvetica, Tahoma, Arial, sans-serif;line-height:25.1875px;"><span style="font-size:10px;">被@PostConstruct修饰的方法会在服务器加载Servle的时候运行，并且只会被服务器执行一次。PostConstruct在构造函数之后执行,init()方法之前执行。</span></span></span>
56. private void loadResourceDefine() {  <span style="color:#33cc00;"> //一定要加上<span style="font-family:Arial, Helvetica, sans-serif;">@PostConstruct注解</span></span>
57. <span style="color:#33cc00;">// 在Web服务器启动时，提取系统中的所有权限。</span>
58. List<Map<String,Object>> list =sRoleVODao.findAll();
59. List<String> query = new ArrayList<String>();
60. if(list!=null && list.size()>0) {
61. for(Map<String,Object> sr :list){
62. //String name = sr.get("name")
63. Object value = sr.get("name");
64. String name = String.valueOf(value);
65. query.add(name);
66. }
67. }
68. <span style="color:#33cc00;">/*
69. * 应当是资源为key， 权限为value。 资源通常为url， 权限就是那些以ROLE_为前缀的角色。 一个资源可以由多个权限来访问。
70. * sparta
71. */</span>
72. resourceMap = new HashMap<String, Collection<ConfigAttribute>>();
73. for (String auth : query) {
74. ConfigAttribute ca = new SecurityConfig(auth);
75. //List<Map<String,Object>> query1 = sResourceVODao.findByRoleName(auth);
76. List<String> query1 = new ArrayList<String>();
77. List<Map<String, Object>>  list1 = sResourceVODao.findByRoleName(auth);
78. if(list1!=null && list1.size()>0) {
79. for(Map<String, Object> map :list1){
80. Object value = map.get("resource_string");
81. String url = String.valueOf(value);
82. query1.add(url);
83. }
84. }
85. for (String res : query1) {
86. String url = res;
87. <span style="color:#33cc00;">/*
88. * 判断资源文件和权限的对应关系，如果已经存在相关的资源url，则要通过该url为key提取出权限集合，将权限增加到权限集合中。
89. * sparta
90. */</span>
91. if (resourceMap.containsKey(url)) {
92. Collection<ConfigAttribute> value = resourceMap.get(url);
93. value.add(ca);
94. resourceMap.put(url, value);
95. } else {
96. Collection<ConfigAttribute> atts = new ArrayList<ConfigAttribute>();
97. atts.add(ca);
98. resourceMap.put(url, atts);
99. }
100. }
101. }
102. }
103. @Override
104. public Collection<ConfigAttribute> getAllConfigAttributes() {
105. return new ArrayList<ConfigAttribute>();
106. }
107. <span style="color:#33cc00;">
108. // 根据URL，找到相关的权限配置。</span>
109. @Override
110. public Collection<ConfigAttribute> getAttributes(Object object)
111. throws IllegalArgumentException {
112. System.out.println("nwuidhwuiehdfu");
113. <span style="color:#33cc00;">// object 是一个URL，被用户请求的url。</span>
114. FilterInvocation filterInvocation = (FilterInvocation) object;
115. if (resourceMap == null) {
116. loadResourceDefine();
117. }
118. Iterator<String> ite = resourceMap.keySet().iterator();
119. while (ite.hasNext()) {
120. String resURL = ite.next();
121. RequestMatcher requestMatcher = new AntPathRequestMatcher(resURL);
122. if(requestMatcher.matches(filterInvocation.getHttpRequest())) {
123. return resourceMap.get(resURL);
124. }
125. }
126. return null;
127. }
128. @Override
129. public boolean supports(Class<?> arg0) {
130. return true;
131. }
132. }

/*
 * @(#) MyInvocationSecurityMetadataSourceService.java  2011-3-23 下午02:58:29
 *
 * Copyright 2011 by Sparta
 */

package security.support;

import java.util.ArrayList;

import java.util.Collection;

import java.util.HashMap;

import java.util.Iterator;

import java.util.List;

import java.util.Map;

import java.util.Map.Entry;

import java.util.Set;

import javax.annotation.PostConstruct;

import org.hibernate.Session;

import org.hibernate.SessionFactory;

import org.springframework.beans.factory.annotation.Autowired;

import org.springframework.context.ApplicationContext;

import org.springframework.context.support.ClassPathXmlApplicationContext;

import org.springframework.security.access.ConfigAttribute;

import org.springframework.security.access.SecurityConfig;

import org.springframework.security.core.GrantedAuthority;

import org.springframework.security.core.context.SecurityContextHolder;

import org.springframework.security.core.userdetails.UserDetails;

import org.springframework.security.web.FilterInvocation;

import org.springframework.security.web.access.intercept.FilterInvocationSecurityMetadataSource;

import org.springframework.security.web.util.matcher.AntPathRequestMatcher;

import org.springframework.security.web.util.matcher.RequestMatcher;

import org.springframework.stereotype.Component;

import org.springframework.stereotype.Service;

import security.dao.SResourceVODao;

import security.dao.SRoleDao;

import security.dao.SRoleVODao;

import security.entity.SRole;

import security.service.SResourceService;

import security.service.SRoleService;

/**
最核心的地方，就是提供某个资源对应的权限定义，即getAttributes方法返回的结果。 此类在初始化时，应该取到所有资源及其对应角色的定义。

*/

@Service

public class CustomInvocationSecurityMetadataSourceService implements

FilterInvocationSecurityMetadataSource {
@Autowired
private SResourceVODao sResourceVODao;

@Autowired
private SRoleVODao sRoleVODao;

private static Map<String, Collection<ConfigAttribute>> resourceMap = null;

/*public CustomInvocationSecurityMetadataSourceService(SResourceService sres,SRoleService sR) {
	this.sResourceService = sres;
	this.sRoleService = sR;
	loadResourceDefine();
}*/
@PostConstruct<span style="color:#33cc00;">//<span style="font-family:Helvetica, Tahoma, Arial, sans-serif;font-size:14px;line-height:25.1875px;">&nbsp; </span><span style="font-family:Helvetica, Tahoma, Arial, sans-serif;line-height:25.1875px;"><span style="font-size:10px;">被@PostConstruct修饰的方法会在服务器加载Servle的时候运行，并且只会被服务器执行一次。PostConstruct在构造函数之后执行,init()方法之前执行。</span></span></span>
private void loadResourceDefine() {  <span style="color:#33cc00;"> //一定要加上<span style="font-family:Arial, Helvetica, sans-serif;">@PostConstruct注解</span></span>
<span style="color:#33cc00;">// 在Web服务器启动时，提取系统中的所有权限。</span>
	List&lt;Map&lt;String,Object&gt;&gt; list =sRoleVODao.findAll();
	List&lt;String&gt; query = new ArrayList&lt;String&gt;();
	if(list!=null &amp;&amp; list.size()&gt;0) {
		for(Map&lt;String,Object&gt; sr :list){
			//String name = sr.get("name")
			Object value = sr.get("name");
			String name = String.valueOf(value);
			query.add(name);
		}
	}
	<span style="color:#33cc00;">/*
	 * 应当是资源为key， 权限为value。 资源通常为url， 权限就是那些以ROLE_为前缀的角色。 一个资源可以由多个权限来访问。
	 * sparta
	 */</span>
	resourceMap = new HashMap&lt;String, Collection&lt;ConfigAttribute&gt;&gt;();

	for (String auth : query) {
		ConfigAttribute ca = new SecurityConfig(auth);
		//List&lt;Map&lt;String,Object&gt;&gt; query1 = sResourceVODao.findByRoleName(auth);
		List&lt;String&gt; query1 = new ArrayList&lt;String&gt;();
		List&lt;Map&lt;String, Object&gt;&gt;  list1 = sResourceVODao.findByRoleName(auth);
		if(list1!=null &amp;&amp; list1.size()&gt;0) {
			for(Map&lt;String, Object&gt; map :list1){
				Object value = map.get("resource_string");
				String url = String.valueOf(value);
				query1.add(url);
			}
		}
		for (String res : query1) {
			String url = res;

			<span style="color:#33cc00;">/*
			 * 判断资源文件和权限的对应关系，如果已经存在相关的资源url，则要通过该url为key提取出权限集合，将权限增加到权限集合中。
			 * sparta
			 */</span>
			if (resourceMap.containsKey(url)) {

				Collection&lt;ConfigAttribute&gt; value = resourceMap.get(url);
				value.add(ca);
				resourceMap.put(url, value);
			} else {
				Collection&lt;ConfigAttribute&gt; atts = new ArrayList&lt;ConfigAttribute&gt;();
				atts.add(ca);
				resourceMap.put(url, atts);
			}

		}
	}

}

@Override
public Collection&lt;ConfigAttribute&gt; getAllConfigAttributes() {
	 return new ArrayList&lt;ConfigAttribute&gt;();
}

// 根据URL，找到相关的权限配置。
	@Override
	public Collection<ConfigAttribute> getAttributes(Object object)
			throws IllegalArgumentException {
		System.out.println("nwuidhwuiehdfu");
		// object 是一个URL，被用户请求的url。
		FilterInvocation filterInvocation = (FilterInvocation) object;
		if (resourceMap == null) {
			loadResourceDefine();
		}
		Iterator<String> ite = resourceMap.keySet().iterator();
		while (ite.hasNext()) {
			String resURL = ite.next();
			 RequestMatcher requestMatcher = new AntPathRequestMatcher(resURL);
			    if(requestMatcher.matches(filterInvocation.getHttpRequest())) {
				return resourceMap.get(resURL);
			}
		}
	return null;
}
@Override
public boolean supports(Class&lt;?&gt; arg0) {

	return true;
}

}

2、CustomAccessDecisionManager.java

1. /*
2. * @(#) MyAccessDecisionManager.java  2011-3-23 下午04:41:12
3. *
4. * Copyright 2011 by Sparta
5. */
6. package security.support;
7. import java.util.Collection;
8. import java.util.Iterator;
9. import org.springframework.security.access.AccessDecisionManager;
10. import org.springframework.security.access.AccessDeniedException;
11. import org.springframework.security.access.ConfigAttribute;
12. import org.springframework.security.access.SecurityConfig;
13. import org.springframework.security.authentication.InsufficientAuthenticationException;
14. import org.springframework.security.core.Authentication;
15. import org.springframework.security.core.GrantedAuthority;
16. import org.springframework.stereotype.Component;
17. import org.springframework.stereotype.Service;
18. <span style="color:#33cc00;">/**
19. *AccessdecisionManager在Spring security中是很重要的。
20. *
21. *在验证部分简略提过了，所有的Authentication实现需要保存在一个GrantedAuthority对象数组中。
22. *这就是赋予给主体的权限。 GrantedAuthority对象通过AuthenticationManager
23. *保存到 Authentication对象里，然后从AccessDecisionManager读出来，进行授权判断。
24. *
25. *Spring Security提供了一些拦截器，来控制对安全对象的访问权限，例如方法调用或web请求。
26. *一个是否允许执行调用的预调用决定，是由AccessDecisionManager实现的。
27. *这个 AccessDecisionManager 被AbstractSecurityInterceptor调用，
28. *它用来作最终访问控制的决定。 这个AccessDecisionManager接口包含三个方法：
29. *
30. void decide(Authentication authentication, Object secureObject,
31. List<ConfigAttributeDefinition> config) throws AccessDeniedException;
32. boolean supports(ConfigAttribute attribute);
33. boolean supports(Class clazz);
34. 从第一个方法可以看出来，AccessDecisionManager使用方法参数传递所有信息，这好像在认证评估时进行决定。
35. 特别是，在真实的安全方法期望调用的时候，传递安全Object启用那些参数。
36. 比如，让我们假设安全对象是一个MethodInvocation。
37. 很容易为任何Customer参数查询MethodInvocation，
38. 然后在AccessDecisionManager里实现一些有序的安全逻辑，来确认主体是否允许在那个客户上操作。
39. 如果访问被拒绝，实现将抛出一个AccessDeniedException异常。
40. 这个 supports(ConfigAttribute) 方法在启动的时候被
41. AbstractSecurityInterceptor调用，来决定AccessDecisionManager
42. 是否可以执行传递ConfigAttribute。
43. supports(Class)方法被安全拦截器实现调用，
44. 包含安全拦截器将显示的AccessDecisionManager支持安全对象的类型。
45. */</span>
46. @Service
47. public class CustomAccessDecisionManager implements AccessDecisionManager {
48. public void decide( Authentication authentication, Object object,
49. Collection<ConfigAttribute> configAttributes)
50. throws AccessDeniedException, InsufficientAuthenticationException{
51. if( configAttributes == null ) {
52. return ;
53. }
54. Iterator<ConfigAttribute> ite = configAttributes.iterator();
55. while( ite.hasNext()){
56. ConfigAttribute ca = ite.next();
57. String needRole = ((SecurityConfig)ca).getAttribute();
58. <span style="color:#33cc00;">   //ga 为用户所被赋予的权限。 needRole 为访问相应的资源应该具有的权限。</span>
59. for( GrantedAuthority ga: authentication.getAuthorities()){
60. if(needRole.trim().equals(ga.getAuthority().trim())){
61. return;
62. }
63. }
64. }
65. throw new AccessDeniedException("权限不足");
66. }
67. public boolean supports( ConfigAttribute attribute ){
68. <span style="color:#ff0000;">return true;</span><span style="color:#33cc00;">//都要设为true</span>
69. }
70. public boolean supports(Class<?> clazz){
71. <span style="color:#ff0000;">return true;</span><span style="color:rgb(51,204,0);font-family:Arial, Helvetica, sans-serif;">//都要设为true</span>
72. }
73. }

/*
 * @(#) MyAccessDecisionManager.java  2011-3-23 下午04:41:12
 *
 * Copyright 2011 by Sparta
 */

package security.support;

import java.util.Collection;

import java.util.Iterator;

import org.springframework.security.access.AccessDecisionManager;

import org.springframework.security.access.AccessDeniedException;

import org.springframework.security.access.ConfigAttribute;

import org.springframework.security.access.SecurityConfig;

import org.springframework.security.authentication.InsufficientAuthenticationException;

import org.springframework.security.core.Authentication;

import org.springframework.security.core.GrantedAuthority;

import org.springframework.stereotype.Component;

import org.springframework.stereotype.Service;

/**

*AccessdecisionManager在Spring security中是很重要的。

*

*在验证部分简略提过了，所有的Authentication实现需要保存在一个GrantedAuthority对象数组中。

*这就是赋予给主体的权限。 GrantedAuthority对象通过AuthenticationManager

*保存到 Authentication对象里，然后从AccessDecisionManager读出来，进行授权判断。

*

*Spring Security提供了一些拦截器，来控制对安全对象的访问权限，例如方法调用或web请求。

*一个是否允许执行调用的预调用决定，是由AccessDecisionManager实现的。

*这个 AccessDecisionManager 被AbstractSecurityInterceptor调用，

*它用来作最终访问控制的决定。 这个AccessDecisionManager接口包含三个方法：

*

void decide(Authentication authentication, Object secureObject,

List<ConfigAttributeDefinition> config) throws AccessDeniedException;

boolean supports(ConfigAttribute attribute);

boolean supports(Class clazz);

从第一个方法可以看出来，AccessDecisionManager使用方法参数传递所有信息，这好像在认证评估时进行决定。

特别是，在真实的安全方法期望调用的时候，传递安全Object启用那些参数。

比如，让我们假设安全对象是一个MethodInvocation。

很容易为任何Customer参数查询MethodInvocation，

然后在AccessDecisionManager里实现一些有序的安全逻辑，来确认主体是否允许在那个客户上操作。

如果访问被拒绝，实现将抛出一个AccessDeniedException异常。

这个 supports(ConfigAttribute) 方法在启动的时候被

AbstractSecurityInterceptor调用，来决定AccessDecisionManager

是否可以执行传递ConfigAttribute。

supports(Class)方法被安全拦截器实现调用，

包含安全拦截器将显示的AccessDecisionManager支持安全对象的类型。

*/

@Service

public class CustomAccessDecisionManager implements AccessDecisionManager {
public void decide( Authentication authentication, Object object,
		Collection&lt;ConfigAttribute&gt; configAttributes)
	throws AccessDeniedException, InsufficientAuthenticationException{
	if( configAttributes == null ) {
		return ;
	}

	Iterator&lt;ConfigAttribute&gt; ite = configAttributes.iterator();

	while( ite.hasNext()){
		ConfigAttribute ca = ite.next();
		String needRole = ((SecurityConfig)ca).getAttribute();

	<span style="color:#33cc00;">	//ga 为用户所被赋予的权限。 needRole 为访问相应的资源应该具有的权限。</span>
		for( GrantedAuthority ga: authentication.getAuthorities()){

			if(needRole.trim().equals(ga.getAuthority().trim())){

				return;
			}

		}

	}

	throw new AccessDeniedException("权限不足");

}

public boolean supports( ConfigAttribute attribute ){
	<span style="color:#ff0000;">return true;</span><span style="color:#33cc00;">//都要设为true</span>

}

public boolean supports(Class&lt;?&gt; clazz){
	<span style="color:#ff0000;">return true;</span><span style="color:rgb(51,204,0);font-family:Arial, Helvetica, sans-serif;">//都要设为true</span>
}

}

3、 MyFilterSecurityInterceptor.java

1. /*
2. * @(#) MyFilterSecurityInterceptor.java  2011-3-23 上午07:53:03
3. *
4. * Copyright 2011 by Sparta
5. */
6. package security.support;
7. import java.io.IOException;
8. import java.util.Collection;
9. import java.util.Map;
10. import javax.annotation.PostConstruct;
11. import javax.servlet.Filter;
12. import javax.servlet.FilterChain;
13. import javax.servlet.FilterConfig;
14. import javax.servlet.ServletException;
15. import javax.servlet.ServletRequest;
16. import javax.servlet.ServletResponse;
17. import org.springframework.beans.factory.annotation.Autowired;
18. import org.springframework.security.access.ConfigAttribute;
19. import org.springframework.security.access.SecurityMetadataSource;
20. import org.springframework.security.access.intercept.AbstractSecurityInterceptor;
21. import org.springframework.security.access.intercept.InterceptorStatusToken;
22. import org.springframework.security.authentication.AuthenticationManager;
23. import org.springframework.security.web.FilterInvocation;
24. import org.springframework.security.web.access.intercept.FilterInvocationSecurityMetadataSource;
25. import security.service.SResourceService;
26. /**
27. * 该过滤器的主要作用就是通过spring著名的IoC生成securityMetadataSource。
28. * securityMetadataSource相当于本包中自定义的MyInvocationSecurityMetadataSourceService。
29. * 该MyInvocationSecurityMetadataSourceService的作用提从数据库提取权限和资源，装配到HashMap中，
30. * 供Spring Security使用，用于权限校验。
31. * @author sparta 11/3/29
32. *
33. */
34. @Component
35. public class MySecurityFilter
36. extends AbstractSecurityInterceptor
37. implements Filter{
38. @Autowired
39. private CustomInvocationSecurityMetadataSourceService  mySecurityMetadataSource;
40. @Autowired
41. private CustomAccessDecisionManager myAccessDecisionManager;
42. @Autowired
43. private AuthenticationManager authenticationManager;
44. @PostConstruct
45. public void init(){
46. super.setAuthenticationManager(authenticationManager);
47. super.setAccessDecisionManager(myAccessDecisionManager);
48. }
49. public void doFilter( ServletRequest request, ServletResponse response, FilterChain chain)
50. throws IOException, ServletException{
51. FilterInvocation fi = new FilterInvocation( request, response, chain );
52. invoke(fi);
53. }
54. public Class<? extends Object> getSecureObjectClass(){
55. return FilterInvocation.class;
56. }
57. public void invoke( FilterInvocation fi ) throws IOException, ServletException{
58. System.out.println("filter..........................");
59. InterceptorStatusToken  token = super.beforeInvocation(fi);
60. try{
61. fi.getChain().doFilter(fi.getRequest(), fi.getResponse());
62. }finally{
63. super.afterInvocation(token, null);
64. }
65. }
66. @Override
67. public SecurityMetadataSource obtainSecurityMetadataSource(){
68. System.out.println("filtergergetghrthetyetyetyetyj");
69. return this.mySecurityMetadataSource;
70. }
71. public void destroy(){
72. System.out.println("filter===========================end");
73. }
74. public void init( FilterConfig filterconfig ) throws ServletException{
75. System.out.println("filter===========================");
76. }
77. }

/*
 * @(#) MyFilterSecurityInterceptor.java  2011-3-23 上午07:53:03
 *
 * Copyright 2011 by Sparta
 */

package security.support;

import java.io.IOException;

import java.util.Collection;

import java.util.Map;

import javax.annotation.PostConstruct;

import javax.servlet.Filter;

import javax.servlet.FilterChain;

import javax.servlet.FilterConfig;

import javax.servlet.ServletException;

import javax.servlet.ServletRequest;

import javax.servlet.ServletResponse;

import org.springframework.beans.factory.annotation.Autowired;

import org.springframework.security.access.ConfigAttribute;

import org.springframework.security.access.SecurityMetadataSource;

import org.springframework.security.access.intercept.AbstractSecurityInterceptor;

import org.springframework.security.access.intercept.InterceptorStatusToken;

import org.springframework.security.authentication.AuthenticationManager;

import org.springframework.security.web.FilterInvocation;

import org.springframework.security.web.access.intercept.FilterInvocationSecurityMetadataSource;

import security.service.SResourceService;

/**
该过滤器的主要作用就是通过spring著名的IoC生成securityMetadataSource。
securityMetadataSource相当于本包中自定义的MyInvocationSecurityMetadataSourceService。
该MyInvocationSecurityMetadataSourceService的作用提从数据库提取权限和资源，装配到HashMap中，
供Spring Security使用，用于权限校验。
@author sparta 11/3/29

*/

@Component

public class MySecurityFilter

extends AbstractSecurityInterceptor

implements Filter{

@Autowired

private CustomInvocationSecurityMetadataSourceService  mySecurityMetadataSource;
@Autowired
private CustomAccessDecisionManager myAccessDecisionManager;

@Autowired
private AuthenticationManager authenticationManager;

@PostConstruct
public void init(){
	super.setAuthenticationManager(authenticationManager);
	super.setAccessDecisionManager(myAccessDecisionManager);
}

public void doFilter( ServletRequest request, ServletResponse response, FilterChain chain)
throws IOException, ServletException{
	FilterInvocation fi = new FilterInvocation( request, response, chain );
	invoke(fi);

}

public Class<? extends Object> getSecureObjectClass(){
	return FilterInvocation.class;
}

public void invoke( FilterInvocation fi ) throws IOException, ServletException{
	System.out.println("filter..........................");
	InterceptorStatusToken  token = super.beforeInvocation(fi);
	try{
		fi.getChain().doFilter(fi.getRequest(), fi.getResponse());
	}finally{
		super.afterInvocation(token, null);
	}

}

@Override
public SecurityMetadataSource obtainSecurityMetadataSource(){
	System.out.println("filtergergetghrthetyetyetyetyj");
	return this.mySecurityMetadataSource;
}

public void destroy(){
	System.out.println("filter===========================end");
}
public void init( FilterConfig filterconfig ) throws ServletException{
	System.out.println("filter===========================");
}

}

接下来修改一个类的 大家注意：

WebSecurityConfig.java

1. package security;
2.
3. import org.springframework.beans.factory.annotation.Autowired;
4. import org.springframework.boot.autoconfigure.security.SecurityProperties;
5. import org.springframework.boot.web.servlet.FilterRegistrationBean;
6. import org.springframework.context.annotation.Bean;
7. import org.springframework.context.annotation.Configuration;
8. import org.springframework.core.annotation.Order;
9. import org.springframework.security.authentication.AuthenticationManager;
10. import org.springframework.security.authentication.AuthenticationProvider;
11. import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
12. import org.springframework.security.config.annotation.web.builders.HttpSecurity;
13. import org.springframework.security.config.annotation.web.builders.WebSecurity;
14. import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
15. import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
16. import org.springframework.security.config.annotation.web.servlet.configuration.EnableWebMvcSecurity;
17. import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
18. import org.springframework.security.web.access.intercept.FilterSecurityInterceptor;
19.
20. import security.support.CustomUserDetailsService;
21. import security.support.LoginSuccessHandler;
22. import security.support.MySecurityFilter;
23. @Configuration
24. @EnableWebSecurity
25. public class WebSecurityConfig extends WebSecurityConfigurerAdapter {
26.
27.     @Autowired
28.     private MyFilterSecurityInterceptor mySecurityFilter;
29.
30.     @Autowired
31.     private CustomUserDetailsService customUserDetailsService;
32.
33.     @Override
34.     public AuthenticationManager authenticationManagerBean() throws Exception {
35.
36.     return super.authenticationManagerBean();
37.
38.     }
39.     //http://localhost:8080/login 输入正确的用户名密码 并且选中remember-me 则登陆成功，转到 index页面
40.     //再次访问index页面无需登录直接访问
41.     //访问http://localhost:8080/home 不拦截，直接访问，
42.     //访问http://localhost:8080/hello 需要登录验证后，且具备 “ADMIN”权限hasAuthority("ADMIN")才可以访问
43.     @Override
44.     protected void configure(HttpSecurity http) throws Exception {
45.         http
46.         .addFilterBefore(mySecurityFilter, FilterSecurityInterceptor.class)//在正确的位置添加我们自定义的过滤器
47.         .authorizeRequests()
48.         .antMatchers("/home").permitAll()
49.         .anyRequest().authenticated()
50.         //.antMatchers("/hello").hasAuthority("ADMIN")
51.         .and()
52.         .formLogin()
53.         .loginPage("/login")
54.         .permitAll()
55.         .successHandler(loginSuccessHandler())//code3
56.         .and()
57.         .logout()
58.         .logoutSuccessUrl("/home")
59.         .permitAll()
60.         .invalidateHttpSession(true)
61.         .and()
62.         .rememberMe()
63.         .tokenValiditySeconds(1209600);
64.     }
65.     @Override
66.         public void configure(WebSecurity web) throws Exception {
67.             super.configure(web);
68.     }
69.     @Autowired
70.     public void configureGlobal(AuthenticationManagerBuilder auth) throws Exception {
71. //指定密码加密所使用的加密器为passwordEncoder()
72. //需要将密码加密后写入数据库
73.     auth.userDetailsService(customUserDetailsService).passwordEncoder(passwordEncoder());
74. //不删除凭据，以便记住用户
75.         auth.eraseCredentials(false);
76.     }
77.
78.     // Code5----------------------------------------------
79.     @Bean
80.     public BCryptPasswordEncoder passwordEncoder() {
81.         return new BCryptPasswordEncoder(4);
82.     }
83.
84.     // Code3----------------------------------------------
85.     @Bean
86.     public LoginSuccessHandler loginSuccessHandler(){
87.         return new LoginSuccessHandler();
88.     }
89. }

package security;

import org.springframework.beans.factory.annotation.Autowired;

import org.springframework.boot.autoconfigure.security.SecurityProperties;

import org.springframework.boot.web.servlet.FilterRegistrationBean;

import org.springframework.context.annotation.Bean;

import org.springframework.context.annotation.Configuration;

import org.springframework.core.annotation.Order;

import org.springframework.security.authentication.AuthenticationManager;

import org.springframework.security.authentication.AuthenticationProvider;

import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;

import org.springframework.security.config.annotation.web.builders.HttpSecurity;

import org.springframework.security.config.annotation.web.builders.WebSecurity;

import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;

import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;

import org.springframework.security.config.annotation.web.servlet.configuration.EnableWebMvcSecurity;

import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;

import org.springframework.security.web.access.intercept.FilterSecurityInterceptor;

import security.support.CustomUserDetailsService;

import security.support.LoginSuccessHandler;

import security.support.MySecurityFilter;

@Configuration

@EnableWebSecurity

public class WebSecurityConfig extends WebSecurityConfigurerAdapter {
@Autowired
private MyFilterSecurityInterceptor mySecurityFilter;

@Autowired
private CustomUserDetailsService customUserDetailsService;

@Override
public AuthenticationManager authenticationManagerBean() throws Exception {

return super.authenticationManagerBean();

}
//http://localhost:8080/login 输入正确的用户名密码 并且选中remember-me 则登陆成功，转到 index页面
//再次访问index页面无需登录直接访问
//访问http://localhost:8080/home 不拦截，直接访问，
//访问http://localhost:8080/hello 需要登录验证后，且具备 “ADMIN”权限hasAuthority("ADMIN")才可以访问
@Override
protected void configure(HttpSecurity http) throws Exception {
	http
	.addFilterBefore(mySecurityFilter, FilterSecurityInterceptor.class)//在正确的位置添加我们自定义的过滤器
	.authorizeRequests()
	.antMatchers("/home").permitAll()
	.anyRequest().authenticated()
	//.antMatchers("/hello").hasAuthority("ADMIN")
	.and()
	.formLogin()
	.loginPage("/login")
	.permitAll()
	.successHandler(loginSuccessHandler())//code3
	.and()
	.logout()
	.logoutSuccessUrl("/home")
	.permitAll()
	.invalidateHttpSession(true)
	.and()
	.rememberMe()
	.tokenValiditySeconds(1209600);
}
@Override
    public void configure(WebSecurity web) throws Exception {
        super.configure(web);
}
@Autowired
public void configureGlobal(AuthenticationManagerBuilder auth) throws Exception {

//指定密码加密所使用的加密器为passwordEncoder()

//需要将密码加密后写入数据库

auth.userDetailsService(customUserDetailsService).passwordEncoder(passwordEncoder());

//不删除凭据，以便记住用户

auth.eraseCredentials(false);

}
// Code5----------------------------------------------
@Bean
public BCryptPasswordEncoder passwordEncoder() {
	return new BCryptPasswordEncoder(4);
}

// Code3----------------------------------------------
@Bean
public LoginSuccessHandler loginSuccessHandler(){
	return new LoginSuccessHandler();
}

}

ServletInitializer.java

1. package security;
2.
3. import javax.servlet.FilterRegistration;
4. import javax.servlet.ServletContext;
5. import javax.servlet.ServletException;
6.
7. import org.springframework.boot.builder.SpringApplicationBuilder;
8. import org.springframework.boot.web.support.SpringBootServletInitializer;
9. import org.springframework.orm.jpa.support.OpenEntityManagerInViewFilter;
10.
11. public class ServletInitializer extends SpringBootServletInitializer {
12.
13.     @Override
14.     protected SpringApplicationBuilder configure(SpringApplicationBuilder application) {
15.         return application.sources(MainApplication.class);
16.     }
17.
18.     @Override
19.     public void onStartup(ServletContext servletContext)
20.     throws ServletException {
21.      FilterRegistration.Dynamic openEntityManagerInViewFilter = servletContext.addFilter("openEntityManagerInViewFilter", OpenEntityManagerInViewFilter.class);
22.          openEntityManagerInViewFilter.setInitParameter("entityManagerFactoryBeanName","entityManagerFactory");
23.          openEntityManagerInViewFilter.addMappingForUrlPatterns(null, false, "/*");
24.     super.onStartup(servletContext);
25.     }
26. }

package security;

import javax.servlet.FilterRegistration;

import javax.servlet.ServletContext;

import javax.servlet.ServletException;

import org.springframework.boot.builder.SpringApplicationBuilder;

import org.springframework.boot.web.support.SpringBootServletInitializer;

import org.springframework.orm.jpa.support.OpenEntityManagerInViewFilter;

public class ServletInitializer extends SpringBootServletInitializer {
@Override
protected SpringApplicationBuilder configure(SpringApplicationBuilder application) {
	return application.sources(MainApplication.class);
}

@Override
public void onStartup(ServletContext servletContext)
throws ServletException {
 FilterRegistration.Dynamic openEntityManagerInViewFilter = servletContext.addFilter("openEntityManagerInViewFilter", OpenEntityManagerInViewFilter.class);
     openEntityManagerInViewFilter.setInitParameter("entityManagerFactoryBeanName","entityManagerFactory");
     openEntityManagerInViewFilter.addMappingForUrlPatterns(null, false, "/*");
super.onStartup(servletContext);
}

}

还有主类需要修改

1. package security;
2. import java.io.IOException;
3. import java.util.HashMap;
4. import java.util.List;
5. import java.util.Map;
6. import java.util.Set;
7.
8. import javax.annotation.PostConstruct;
9.
10. import org.slf4j.Logger;
11. import org.slf4j.LoggerFactory;
12. import org.springframework.beans.factory.annotation.Autowired;
13. import org.springframework.boot.SpringApplication;
14. import org.springframework.boot.autoconfigure.EnableAutoConfiguration;
15. import org.springframework.boot.autoconfigure.SpringBootApplication;
16. import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
17. import org.springframework.web.method.HandlerMethod;
18. import org.springframework.web.servlet.mvc.method.RequestMappingInfo;
19. import org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerMapping;
20. import security.entity.SysResource;
21. import security.service.SResourceService;
22. import csecurity.service.UserService;
23. import security.support.MySecurityFilter;
24.
25. @SpringBootApplication
26. @EnableAutoConfiguration(exclude = MyFilterSecurityInterceptor.class) //注意
27. public class MainApplication{
28.
29.     @Autowired
30.     private SResourceService sresourceService;
31.
32.     private static final Logger log = LoggerFactory.getLogger(MainApplication.class);
33.     @PostConstruct
34.      public void initApplication() throws IOException {
35.          log.info("Running with Spring profile(s) : {}");
36.     }
37.
38.     public static void main(String[] args) {
39.         //SpringApplication.run(MainApplication.class, args);
40.         SpringApplication app=new SpringApplication(MainApplication.class);
41.         Appctx.ctx=app.run(args);
42.         /UserService suserService = (UserService) Appctx.ctx.getBean("suserService");
43.         SysUser su= suserService.findByName("user");
44.         System.out.println("密码"+su.getPassword());
45.         System.out.println("名字"+su.getName());
46.         BCryptPasswordEncoder bc=new BCryptPasswordEncoder(4);//将密码加密
47.         su.setPassword(bc.encode(su.getPassword()));
48.         System.out.println("密码"+su.getPassword());
49.         suserService.update(su);/
50. }
51. }

package security;

import java.io.IOException;

import java.util.HashMap;

import java.util.List;

import java.util.Map;

import java.util.Set;

import javax.annotation.PostConstruct;

import org.slf4j.Logger;

import org.slf4j.LoggerFactory;

import org.springframework.beans.factory.annotation.Autowired;

import org.springframework.boot.SpringApplication;

import org.springframework.boot.autoconfigure.EnableAutoConfiguration;

import org.springframework.boot.autoconfigure.SpringBootApplication;

import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;

import org.springframework.web.method.HandlerMethod;

import org.springframework.web.servlet.mvc.method.RequestMappingInfo;

import org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerMapping;

import security.entity.SysResource;

import security.service.SResourceService;

import csecurity.service.UserService;

import security.support.MySecurityFilter;

@SpringBootApplication

@EnableAutoConfiguration(exclude = MyFilterSecurityInterceptor.class) //注意

public class MainApplication{
@Autowired
private SResourceService sresourceService;

private static final Logger log = LoggerFactory.getLogger(MainApplication.class);
@PostConstruct
 public void initApplication() throws IOException {
     log.info("Running with Spring profile(s) : {}");
}

public static void main(String[] args) {
	//SpringApplication.run(MainApplication.class, args);
	SpringApplication app=new SpringApplication(MainApplication.class);
	Appctx.ctx=app.run(args);
	/*UserService suserService = (UserService) Appctx.ctx.getBean("suserService");
	SysUser su= suserService.findByName("user");
    System.out.println("密码"+su.getPassword());
    System.out.println("名字"+su.getName());
    BCryptPasswordEncoder bc=new BCryptPasswordEncoder(4);//将密码加密
    su.setPassword(bc.encode(su.getPassword()));
    System.out.println("密码"+su.getPassword());
    suserService.update(su);*/

}

}

至此，我们spring security4就集成成功了，代码，博主已经验证，如有什么错误的地方，欢迎提出。谢谢！

还有资源表中的url可以使用spring的RequestMappingHandlerMapping类自动扫描入库，具体请见http://blog.csdn.net/code__code/article/details/53886912。
