S5PV210 启动流程

S3C6410启动流程

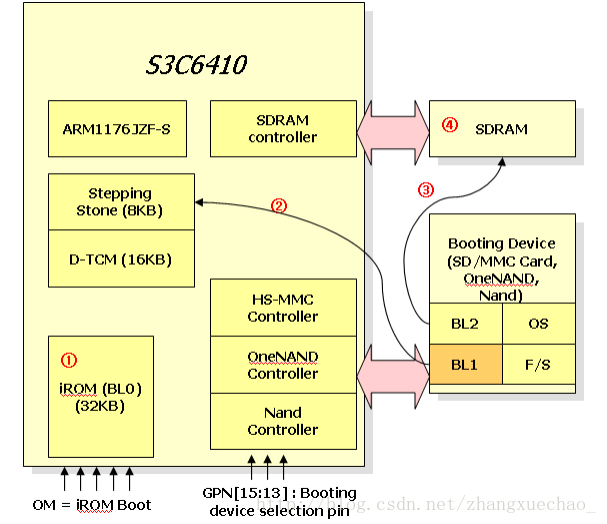

首先，看一下S3C6410启动流程

① iROM supports initial boot up : initialize system clock, D-TCM, device specific controller and booting device.

② iROM boot codes can load 4KB of bootloader to stepping stone. The 8KB boot loader is called BL1.

③ BL1: BL1 can initialize system clock, UART, and SDRAM for user. After initializing, BL1 will load remaining boot loader which is called BL2 on the SDRAM

④ Finally, jump to start address of BL2. That will make good environment to use system.

① 初始化时钟等

② 如果是nandflash启动，nandflash控制器会把nandflash的前4k区域，拷贝到内置SRAM（大小4k）

③ BL1这4k，可以初始化系统时钟，UART，和SDRAM。初始化完成以后，会拷贝BL2到SDRAM中

④ 跳转到BL2的加载地址。再将OS拷贝到SDRAM，跳转到OS的加载地址

S5PV210启动流程

增加了iROM大小，增加了内置SRAM大小



BL1 max. size is 16KB. BL2 max. size is 80KB

① iROM can do initial boot up : initialize system clock, device specific controller and booting device.

② iROM boot codes can load boot-loader to SRAM. The boot-loader is called BL1. then iROM verify integrity of BL1 in case of secure boot mode.

③ BL1 will be executed: BL1 will load remained boot loader which is called BL2 on the SRAM then BL1 verify integrity of BL2 in case of secure boot mode.

④ BL2 will be executed : BL2 initialize DRAM controller then load OS data to SDRAM.

⑤ Finally, jump to start address of OS. That will make good environment to use system.

① …

② iROM拷贝BL1到SRAM中

③ BL1加载，并拷贝BL2到内置SRAM中

④ BL2加载，并拷贝OS到SDRAM中

⑤ 跳转到OS的加载地址

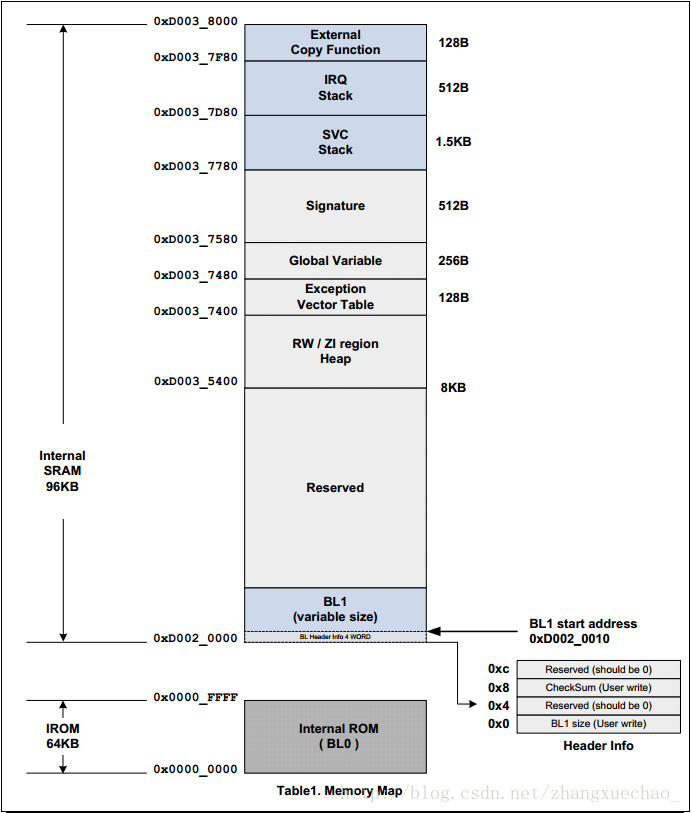

Memory Map

As BL1 doesn’t need header information through UART/USB boot mode, BL1’s code base address is 0xd002_0000. In other cases except UART/USB boot mode, BL1 should have header information and It’s code base address is 0xd0020010

如果是SD卡启动，BL1的起始地址是0xd0020010。前4个字节中，校验码是必须的，也就是BL1数据（16KB-16Byte）的校验和
