asp.net core mcroservices 架构之 分布式日志（二）之自定义日志开发

netcore日志原理

netcore的日志是作为一个扩展库存在的，每个组件都有它的入口，那么作为研究这个组件的入口是最好的，首先看两种方式：

这个是源码例子提供的。

 var loggingConfiguration = new ConfigurationBuilder()
                 .SetBasePath(Directory.GetCurrentDirectory())
                 .AddJsonFile("logging.json", optional: false, reloadOnChange: true)
                 .Build();

             // A Web App based program would configure logging via the WebHostBuilder.
             // Create a logger factory with filters that can be applied across all logger providers.
             var serviceCollection = new ServiceCollection()
                 .AddLogging(builder =>
                 {
                     builder
                         .AddConfiguration(loggingConfiguration.GetSection("Logging"))
                         .AddFilter("Microsoft", LogLevel.Debug)
                         .AddFilter("System", LogLevel.Debug)
                         .AddFilter("SampleApp.Program", LogLevel.Debug)
                         .AddConsole();
 #if NET461
                     builder.AddEventLog();
 #elif NETCOREAPP2_2
 #else
 #error Target framework needs to be updated
 #endif
                 });

             // providers may be added to a LoggerFactory before any loggers are created

             var serviceProvider = serviceCollection.BuildServiceProvider();
             // getting the logger using the class's name is conventional
             _logger = serviceProvider.GetRequiredService<ILogger<Program>>();

这个是咱们使用hostbuild中的扩展

 var host = new WebHostBuilder().ConfigureAppConfiguration((webHostBuild,configBuild) =>
            {
                var env = webHostBuild.HostingEnvironment;

                configBuild.AddJsonFile("appsettings.json")
                .AddJsonFile($"appsettings.{env.EnvironmentName}.json"
                ,optional:true,reloadOnChange:true)
                .SetBasePath(Directory.GetCurrentDirectory());
            }).ConfigureLogging((hostingContext, logging) => {
                logging.AddConfiguration(hostingContext.Configuration.GetSection("Logging"))
                .AddCustomizationLogger();
            }).UseKestrel((hostcon,opt)=> {
                opt.ListenAnyIP();
            })
            .UseStartup<Startup>();
            var ihost= host.Build();
            ihost.Run();

从以上两种可以看出，其实第二种WebHostBuilder是封装第一种的。所以咱们选择从第一个入口着手。

netcore日志设计思想是：LoggingBuider 构建，LoggerFactory和Logger类负责日志操作和Log提供程序的管理，Configuration是配置功能。

那么咱们基于以上的代码，看LoggingBuilder类

using Microsoft.Extensions.DependencyInjection;

namespace Microsoft.Extensions.Logging
{
    internal class LoggingBuilder : ILoggingBuilder
    {
        public LoggingBuilder(IServiceCollection services)
        {
            Services = services;
        }

        public IServiceCollection Services { get; }
    }
}

再看为Service做的扩展

using System;
using Microsoft.Extensions.Logging;
using Microsoft.Extensions.DependencyInjection.Extensions;
using Microsoft.Extensions.Options;

namespace Microsoft.Extensions.DependencyInjection
{
    /// <summary>
    /// Extension methods for setting up logging services in an <see cref="IServiceCollection" />.
    /// </summary>
    public static class LoggingServiceCollectionExtensions
    {
        /// <summary>
        /// Adds logging services to the specified <see cref="IServiceCollection" />.
        /// </summary>
        /// <param name="services">The <see cref="IServiceCollection" /> to add services to.</param>
        /// <returns>The <see cref="IServiceCollection"/> so that additional calls can be chained.</returns>
        public static IServiceCollection AddLogging(this IServiceCollection services)
        {
            return AddLogging(services, builder => { });
        }

        /// <summary>
        /// Adds logging services to the specified <see cref="IServiceCollection" />.
        /// </summary>
        /// <param name="services">The <see cref="IServiceCollection" /> to add services to.</param>
        /// <param name="configure">The <see cref="ILoggingBuilder"/> configuration delegate.</param>
        /// <returns>The <see cref="IServiceCollection"/> so that additional calls can be chained.</returns>
        public static IServiceCollection AddLogging(this IServiceCollection services, Action<ILoggingBuilder> configure)
        {
            if (services == null)
            {
                throw new ArgumentNullException(nameof(services));
            }

            services.AddOptions();

            services.TryAdd(ServiceDescriptor.Singleton<ILoggerFactory, LoggerFactory>());//生成log的工厂
            services.TryAdd(ServiceDescriptor.Singleton(typeof(ILogger<>), typeof(Logger<>))); //Log泛型类

            services.TryAddEnumerable(ServiceDescriptor.Singleton<IConfigureOptions<LoggerFilterOptions>>(
                new DefaultLoggerLevelConfigureOptions(LogLevel.Information)));//Filter配置类

            configure(new LoggingBuilder(services)); //提供一个回掉方法，将logbuilder作为上下文传入
            return services;
        }
    }
}

以上就是Log日志部分完成相当于注册功能的代码。

在入口中咱们看到了，回掉函数中放着加载配置和指定Logging提供程序。首先看加载配置：

builder.AddConfiguration(loggingConfiguration.GetSection("Logging"))

AddConfiguration是在 Logging.Configuration中的LoggingBuilderExtensions.cs

// Copyright (c) .NET Foundation. All rights reserved.
// Licensed under the Apache License, Version 2.0. See License.txt in the project root for license information.

using Microsoft.Extensions.Configuration;
using Microsoft.Extensions.DependencyInjection;
using Microsoft.Extensions.Logging.Configuration;
using Microsoft.Extensions.Options;

namespace Microsoft.Extensions.Logging
{
    /// <summary>
    /// Extension methods for setting up logging services in an <see cref="ILoggingBuilder" />.
    /// </summary>
    public static class LoggingBuilderExtensions
    {
        /// <summary>
        /// Configures <see cref="LoggerFilterOptions" /> from an instance of <see cref="IConfiguration" />.
        /// </summary>
        /// <param name="builder">The <see cref="ILoggingBuilder"/> to use.</param>
        /// <param name="configuration">The <see cref="IConfiguration" /> to add.</param>
        /// <returns>The builder.</returns>
        public static ILoggingBuilder AddConfiguration(this ILoggingBuilder builder, IConfiguration configuration)
        {
            builder.AddConfiguration();  //这个是下面紧挨着代码块的实现，主要是根据类名或者别名，找出对应的configuration并加载
            builder.Services.AddSingleton<IConfigureOptions<LoggerFilterOptions>>
               (new LoggerFilterConfigureOptions(configuration)); //添加filter结点的配置
            builder.Services.AddSingleton<IOptionsChangeTokenSource<LoggerFilterOptions>>
             (new ConfigurationChangeTokenSource<LoggerFilterOptions>(configuration));//更改后需要通知检控类刷新操作

            builder.Services.AddSingleton(new LoggingConfiguration(configuration));//将这个配直节放入service

            return builder;
        }
    }
}

// Copyright (c) .NET Foundation. All rights reserved.
// Licensed under the Apache License, Version 2.0. See License.txt in the project root for license information.

using Microsoft.Extensions.DependencyInjection.Extensions;

namespace Microsoft.Extensions.Logging.Configuration
{
    /// <summary>
    /// Extension methods for setting up logging services in an <see cref="ILoggingBuilder" />.
    /// </summary>
    public static class LoggingBuilderConfigurationExtensions
    {
        /// <summary>
        /// 这个类就是添加根据类型或者是别名去找到配置节的功能 Adds services required to consume <see cref="ILoggerProviderConfigurationFactory"/> or <see cref="ILoggerProviderConfiguration{T}"/>
        /// </summary>
        public static void AddConfiguration(this ILoggingBuilder builder)
        {
            builder.Services.TryAddSingleton<ILoggerProviderConfigurationFactory
, LoggerProviderConfigurationFactory>();
            builder.Services.TryAddSingleton(typeof(ILoggerProviderConfiguration<>)
, typeof(LoggerProviderConfiguration<>));
        }
    }
}

大家其实看到了，全部是往ServiceColl中扔东西，但是细想一下，这不就是根据部件组合出功能的思想吗？不同的部件会组合出新的功能。那日志是如何组合出来的？在咱们的入口类中有这一句：

_logger = serviceProvider.GetRequiredService<ILogger<Program>>();在上面为Service做扩展的那一段代码中已经为ILogger<>注册了服务，还有LoggerFactory也是。那么就从这个类入手，看序列图：

我们知道netcore把DI集成了，基础组件和业务类都可以作为服务来看待，然后进行控制服务以及服务的相互组合，比如在服务中

LoggerFactory类需要初始化，那么看看它的构造函数：

 public LoggerFactory() : this(Enumerable.Empty<ILoggerProvider>())
        {
        }

        public LoggerFactory(IEnumerable<ILoggerProvider> providers) : this(providers, new StaticFilterOptionsMonitor(new LoggerFilterOptions()))
        {
        }

        public LoggerFactory(IEnumerable<ILoggerProvider> providers, LoggerFilterOptions filterOptions) : this(providers, new StaticFilterOptionsMonitor(filterOptions))
        {
        }

        public LoggerFactory(IEnumerable<ILoggerProvider> providers, IOptionsMonitor<LoggerFilterOptions> filterOption)
        {
            foreach (var provider in providers)
            {
                AddProviderRegistration(provider, dispose: false);
            }

            _changeTokenRegistration = filterOption.OnChange(RefreshFilters);
            RefreshFilters(filterOption.CurrentValue);
        }

会不会奇怪为什么构造函数中 ILoggerProvider是以列表的形式出现？

再看看console提供程序的服务注册代码：

    public static class ConsoleLoggerExtensions
    {
        /// <summary>
        /// Adds a console logger named 'Console' to the factory.
        /// </summary>
        /// <param name="builder">The <see cref="ILoggingBuilder"/> to use.</param>
        public static ILoggingBuilder AddConsole(this ILoggingBuilder builder)
        {
            builder.AddConfiguration();

            builder.Services.TryAddEnumerable(ServiceDescriptor.Singleton<ILoggerProvider, ConsoleLoggerProvider>());
            builder.Services.TryAddEnumerable(ServiceDescriptor.Singleton<IConfigureOptions<ConsoleLoggerOptions>, ConsoleLoggerOptionsSetup>());
            builder.Services.TryAddEnumerable(ServiceDescriptor.Singleton<IOptionsChangeTokenSource<ConsoleLoggerOptions>, LoggerProviderOptionsChangeTokenSource<ConsoleLoggerOptions, ConsoleLoggerProvider>>());
            return builder;
        }

它是以 TryAddEnumerable 的形式添加的，也就是说 ILoggerProvider 在服务中有一个列表。那么这个就清楚了，你可以添加

AddDebug AddConsole许多的提供程序，然后全部被注入进LoggerFacotry，LoggerFacotry会生成Logger然后传递给主Logger统一管理。

Add和TryAdd区别就是一个如果有相同的接口和实现，调用几次就会有几个服务，而后者不会，永远只会创建一个服务。

LoggerFactory有段代码 ：

  private void SetLoggerInformation(ref LoggerInformation loggerInformation, ILoggerProvider provider,  string categoryName)
        {
            loggerInformation.Logger = provider.CreateLogger(categoryName);
            loggerInformation.ProviderType = provider.GetType();
            loggerInformation.ExternalScope = provider is ISupportExternalScope;
        }

        private LoggerInformation[] CreateLoggers(string categoryName)
        {
            var loggers = new LoggerInformation[_providerRegistrations.Count];
            for (int i = ; i < _providerRegistrations.Count; i++)
            {
                SetLoggerInformation(ref loggers[i], _providerRegistrations[i].Provider, categoryName);
            }

            ApplyRules(loggers, categoryName, , loggers.Length);
            return loggers;
        }

然后

 public ILogger CreateLogger(string categoryName)
        {
            if (CheckDisposed())
            {
                throw new ObjectDisposedException(nameof(LoggerFactory));
            }

            lock (_sync)
            {
                if (!_loggers.TryGetValue(categoryName, out var logger))
                {
                    logger = new Logger(this)
                    {
                        Loggers = CreateLoggers(categoryName)  //上面的代码块生成
                    };
                    _loggers[categoryName] = logger;
                }

                return logger;
            }
        }

二   netcore自定义日志开发

说了那么多，咱们开始动手自己做一个。咱们并不是新建一个服务，而是为Logging服务做一个扩展，

所以不用新建builder部分，而是为LoggerBuilder新建一个扩展，先看代码结构：

然后看看为LoggerBuilder做的扩展方法：

// Copyright (c) .NET Foundation. All rights reserved.
// Licensed under the Apache License, Version 2.0. See License.txt in the project root for license information.

using System;
using Microsoft.Extensions.Configuration;
using Microsoft.Extensions.DependencyInjection;
using Microsoft.Extensions.DependencyInjection.Extensions;
using Microsoft.Extensions.Logging;
using Microsoft.Extensions.Logging.Configuration;
using Microsoft.Extensions.Logging.Console;
using Microsoft.Extensions.Options;

namespace Walt.Freamwork.Log
{
    public static class CustomizationLoggerLoggerExtensions
    {
        /// <summary>
        /// Adds a console logger named 'Console' to the factory.
        /// </summary>
        /// <param name="builder">The <see cref="ILoggingBuilder"/> to use.</param>
        public static ILoggingBuilder AddCustomizationLogger(this ILoggingBuilder builder)
        {
            builder.AddConfiguration();

            builder.Services.TryAddEnumerable(ServiceDescriptor.Singleton<ILoggerProvider, CustomizationLoggerProvider>());
            builder.Services.TryAddEnumerable(ServiceDescriptor.Singleton<IConfigureOptions<CustomizationLoggerOptions>, CustomizationLoggerOptionsSetup>());
            builder.Services.TryAddEnumerable(ServiceDescriptor.Singleton<IOptionsChangeTokenSource<ConsoleLoggerOptions>, LoggerProviderOptionsChangeTokenSource<ConsoleLoggerOptions, ConsoleLoggerProvider>>());
            return builder;
        }

        /// <summary>
        /// Adds a console logger named 'Console' to the factory.
        /// </summary>
        /// <param name="builder">The <see cref="ILoggingBuilder"/> to use.</param>
        /// <param name="configure"></param>
        public static ILoggingBuilder AddCustomizationLogger(this ILoggingBuilder builder, Action<CustomizationLoggerOptions> configure)
        {
            if (configure == null)
            {
                throw new ArgumentNullException(nameof(configure));
            }

            builder.AddCustomizationLogger();
            builder.Services.Configure(configure);

            return builder;
        }

    }
}

就像第一部分的原理，将你自己的CustomizationLoggerProvider服务添加进服务中，就完成了一半。配置文件和配置Token，

有了这个token，就可以监控到配置文件更改，从而引发change方法，让开发去做一些事情。那么看配置文件：

{
  "Logging": {
    "LogLevel": {
      "Default": "Debug",
      "System": "Debug",
      "Microsoft": "Debug"
    },
    "KafkaLog":{

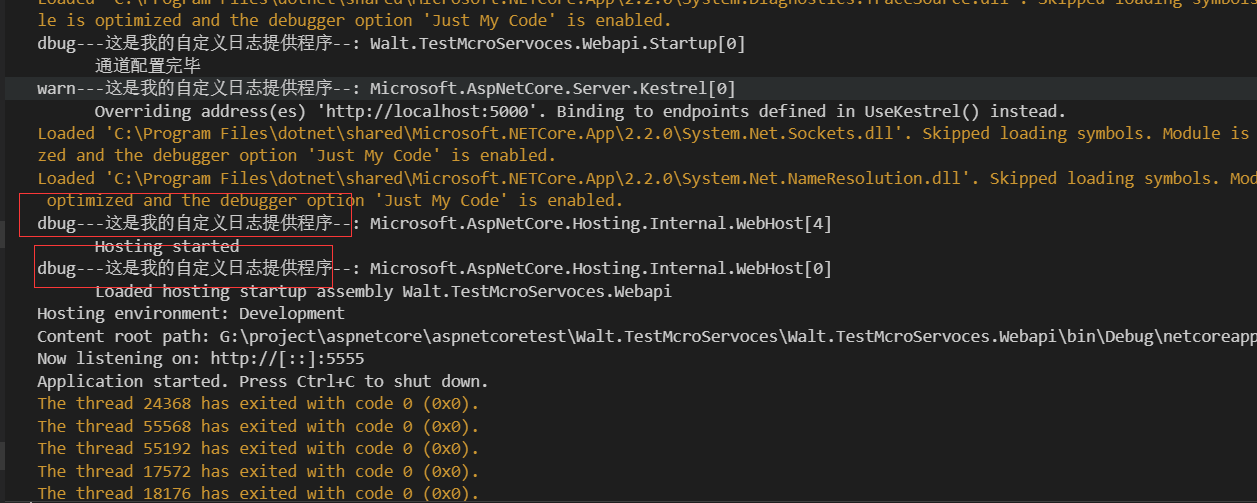

      "Prix":"这是我的自定义日志提供程序"
    }
  }
}

再看看配置类：

就两个参数，咱们配置了一个。再来看看配置安装程序：

仅此而已，然后就是上面的扩展方法，给注册就ok了。

如何用这些配置尼？看provider类

// Copyright (c) .NET Foundation. All rights reserved.
// Licensed under the Apache License, Version 2.0. See License.txt in the project root for license information.

using System;
using System.Collections.Concurrent;
using System.Collections.Generic;
using Microsoft.Extensions.Logging;
using Microsoft.Extensions.Logging.Console.Internal;
using Microsoft.Extensions.Options;

namespace Walt.Freamwork.Log
{
// IConsoleLoggerSettings is obsolete
#pragma warning disable CS0618 // Type or member is obsolete

    [ProviderAlias("KafkaLog")] //还记得上面讲原理是注入了providerconfiguration等类，就是根据这个别名去找配直节的。
    public class CustomizationLoggerProvider : ILoggerProvider, ISupportExternalScope
    {
        private readonly ConcurrentDictionary<string, CustomizationLogger> _loggers =
         new ConcurrentDictionary<string, CustomizationLogger>();

        private readonly Func<string, LogLevel, bool> _filter;
        private readonly CustomizationLoggerProcessor _messageQueue =
        new CustomizationLoggerProcessor();

        private static readonly Func<string, LogLevel, bool> trueFilter = (cat, level) => true;
        private static readonly Func<string, LogLevel, bool> falseFilter = (cat, level) => false;
        private IDisposable _optionsReloadToken;
        private bool _includeScopes;

private string _prix;

        private IExternalScopeProvider _scopeProvider;

        public CustomizationLoggerProvider(IOptionsMonitor<CustomizationLoggerOptions> options)
//这里自动和configuration中的值绑定后，被注入到这里来了。
        {
            // Filter would be applied on LoggerFactory level
            _filter = trueFilter;

            _optionsReloadToken = options.OnChange(ReloadLoggerOptions); //这个就是我说的需要注册token服务，然后配置更改就会激发这个方法
            ReloadLoggerOptions(options.CurrentValue);
        }

        private void ReloadLoggerOptions(CustomizationLoggerOptions options)
        {
            _includeScopes = options.IncludeScopes;
              _prix=options.Prix;

            var scopeProvider = GetScopeProvider();
            foreach (var logger in _loggers.Values)
            {
                logger.ScopeProvider = scopeProvider;
            }
        }

        private IEnumerable<string> GetKeyPrefixes(string name)
        {
            while (!string.IsNullOrEmpty(name))
            {
                yield return name;
                var lastIndexOfDot = name.LastIndexOf('.');
                if (lastIndexOfDot == -)
                {
                    yield return "Default";
                    break;
                }
                name = name.Substring(, lastIndexOfDot);
            }
        }

        private IExternalScopeProvider GetScopeProvider()
        {
            if (_includeScopes && _scopeProvider == null)
            {
                _scopeProvider = new LoggerExternalScopeProvider();
            }
            return _includeScopes ? _scopeProvider : null;
        }

        public void Dispose()
        {
            _optionsReloadToken?.Dispose();
            _messageQueue.Dispose();
        }

        public void SetScopeProvider(IExternalScopeProvider scopeProvider)
        {
            _scopeProvider = scopeProvider;
        }

        public ILogger CreateLogger(string name)
        {
            return _loggers.GetOrAdd(name, CreateLoggerImplementation);
        }

        private CustomizationLogger CreateLoggerImplementation(string name)
        {
            var includeScopes =  _includeScopes;
            return new  CustomizationLogger(name,null
,includeScopes? _scopeProvider: null,_messageQueue,_prix); //这里就是你的终端类了，里面实现为kafka发消息或者写到redis都行。

        }
    }
#pragma warning restore CS0618
}

下面打包然后上传到nuget服务：

调用方查看包

如果没有这个包 dotnet add添加，如果有，直接把project项目文件中的包版本改以下，restore就ok了。

下面进行调用：

运行：还记得配置文件中的

这个就是用来做测试的，目前输出还是用console：

运行结果：

customizationLogger的程序是从console那个提供程序中挖过来的，console中有很多的上一个版本的代码，而我肯定是需要新的，所以把Obsolete的代码全部删除。

这是console的程序。

日志第三部分讲集成kafka，希望大家关注和讨论。
