sharding-jdbc之——分库分表实例

转载请注明出处：http://blog.csdn.net/l1028386804/article/details/79368021

一、概述

之前，我们介绍了利用Mycat进行分库分表操作，Mycat分表操作是利用分库来进行的，单个库中的分表操作可结合MySQL的分区进行，这也是Mycat官方提倡的方式。那么，如何利用Mycat真正实现数据库的分库分表，可以私信我。今天，我们来看看sharding-jdbc，sharding-jdbc也是一款分库分表的“中间件”，不过，它并不向Mycat那样作为一个真正的中间件，它是一款以jar包的形式整合到业务中的插件，这就决定了它是轻量级的，用法也是十分简单的。

二、分库分表实战

接下来，我们就利用sharding-jdbc进行数据库的分库分表操作。

1、创建数据库

首先我们创建相应的数据库

create database sharding_0;
create database sharding_1;

　　

这样我们就创建了两个数据库sharding_0和sharding_1;

接下来我们在两个库中创建相应的数据表，在两个库中分别进行如下SQL:

SET FOREIGN_KEY_CHECKS=0;

-- ----------------------------
-- Table structure for t_student_00
-- ----------------------------
DROP TABLE IF EXISTS `t_student_00`;
CREATE TABLE `t_student_00` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `student_id` int(11) NOT NULL,
  `name` varchar(255) NOT NULL,
  `age` int(11) NOT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

-- ----------------------------
-- Table structure for t_student_01
-- ----------------------------
DROP TABLE IF EXISTS `t_student_01`;
CREATE TABLE `t_student_01` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `student_id` int(11) NOT NULL,
  `name` varchar(255) NOT NULL,
  `age` int(11) NOT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=8 DEFAULT CHARSET=utf8;

-- ----------------------------
-- Table structure for t_user_00
-- ----------------------------
DROP TABLE IF EXISTS `t_user_00`;
CREATE TABLE `t_user_00` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `user_id` int(11) NOT NULL,
  `name` varchar(255) NOT NULL,
  `age` int(11) NOT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

-- ----------------------------
-- Table structure for t_user_01
-- ----------------------------
DROP TABLE IF EXISTS `t_user_01`;
CREATE TABLE `t_user_01` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `user_id` int(11) NOT NULL,
  `name` varchar(255) NOT NULL,
  `age` int(11) NOT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=6 DEFAULT CHARSET=utf8;

-- ----------------------------
-- Table structure for t_user_02
-- ----------------------------
DROP TABLE IF EXISTS `t_user_02`;
CREATE TABLE `t_user_02` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `user_id` int(11) NOT NULL,
  `name` varchar(255) NOT NULL,
  `age` int(11) NOT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=3 DEFAULT CHARSET=utf8;

　　

这样，我们的数据库就准备好了。

2、创建项目

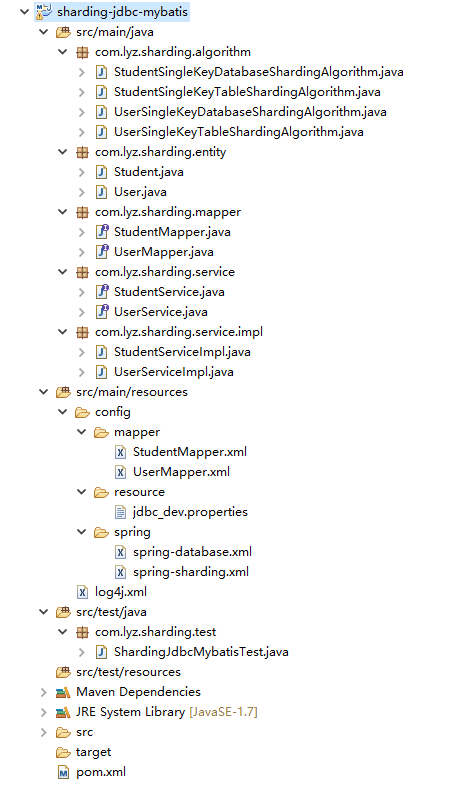

接下来，我们就创建一个Maven项目，项目结构如下：

3、配置pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <groupId>com.lyz</groupId>
  <artifactId>sharding-jdbc-mybatis</artifactId>
  <version>0.0.1-SNAPSHOT</version>
  <packaging>jar</packaging>

  <name>sharding-jdbc-mybatis</name>
  <url>http://maven.apache.org</url>

 <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <spring.version>4.1.0.RELEASE</spring.version>
        <mybatis.version>3.2.4</mybatis.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.10</version>
        </dependency>
        <dependency>
            <groupId>com.dangdang</groupId>
            <artifactId>sharding-jdbc-core</artifactId>
            <version>1.0.0</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-orm</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>commons-dbcp</groupId>
            <artifactId>commons-dbcp</artifactId>
            <version>1.4</version>
        </dependency>
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
            <version>1.2.2</version>
        </dependency>
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>${mybatis.version}</version>
        </dependency>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-expression</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-aop</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-beans</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context-support</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-test</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-tx</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>5.1.28</version>
        </dependency>
        <dependency>
            <groupId>log4j</groupId>
            <artifactId>log4j</artifactId>
            <version>1.2.16</version>
        </dependency>
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-log4j12</artifactId>
            <version>1.7.5</version>
        </dependency>
    </dependencies>
</project>

　　

4、创建数据库映射类

这里，我们创建两个数据库映射类：User类和Student类。

4-1、User类

package com.lyz.sharding.entity;

import java.io.Serializable;

/**
 * 用户类
 * @author liuyazhuang
 *
 */
public class User implements Serializable {

	private static final long serialVersionUID = 1L;

	private Integer id;

	private Integer userId;

	private String name;

	private Integer age;

	public Integer getId() {
		return id;
	}

	public void setId(Integer id) {
		this.id = id;
	}

	public Integer getUserId() {
		return userId;
	}

	public void setUserId(Integer userId) {
		this.userId = userId;
	}

	public String getName() {
		return name;
	}

	public void setName(String name) {
		this.name = name;
	}

	public Integer getAge() {
		return age;
	}

	public void setAge(Integer age) {
		this.age = age;
	}

	@Override
	public String toString() {
		return "User [id=" + id + ", userId=" + userId + ", name=" + name + ", age=" + age + "]";
	}

}

　　4-2、Student类

package com.lyz.sharding.entity;

import java.io.Serializable;

/**
 * 学生类
 * @author liuyazhuang
 *
 */
public class Student implements Serializable {

	private static final long serialVersionUID = 8920597824668331209L;

	private Integer id;

	private Integer studentId;

	private String name;

	private Integer age;

	public Integer getId() {
		return id;
	}

	public void setId(Integer id) {
		this.id = id;
	}

	public Integer getStudentId() {
		return studentId;
	}

	public void setStudentId(Integer studentId) {
		this.studentId = studentId;
	}

	public String getName() {
		return name;
	}

	public void setName(String name) {
		this.name = name;
	}

	public Integer getAge() {
		return age;
	}

	public void setAge(Integer age) {
		this.age = age;
	}

	@Override
	public String toString() {
		return "Student [id=" + id + ", studentId=" + studentId + ", name=" + name + ", age=" + age + "]";
	}

}

　　

5、创建Mapper类

5-1、UserMapper类

package com.lyz.sharding.mapper;

import java.util.List;
import com.lyz.sharding.entity.User;

/**
 * 处理用户的数据操作接口
 * @author liuyazhuang
 *
 */
public interface UserMapper {

    Integer insert(User u);

    List<User> findAll();

    List<User> findByUserIds(List<Integer> userIds);

}

　　5-2、StudentMapper类

package com.lyz.sharding.mapper;

import java.util.List;
import com.lyz.sharding.entity.Student;

/**
 * 处理学生的数据操作接口
 * @author liuyazhuang
 *
 */
public interface StudentMapper {

    Integer insert(Student s);

    List<Student> findAll();

    List<Student> findByStudentIds(List<Integer> studentIds);

}

　　

6、创建service类

6-1、UserService类

package com.lyz.sharding.service;

import java.util.List;
import com.lyz.sharding.entity.User;

/**
 * 处理用户的Service
 * @author liuyazhuang
 *
 */
public interface UserService {

    public boolean insert(User u);

    public List<User> findAll();

    public List<User> findByUserIds(List<Integer> ids);

    public void transactionTestSucess();

    public void transactionTestFailure() throws IllegalAccessException;

}

　　6-2、StudentService类

package com.lyz.sharding.service;

import com.lyz.sharding.entity.Student;

/**
 * 处理学生的service
 * @author liuyazhuang
 *
 */
public interface StudentService {

    boolean insert(Student student);

}

　　

7、创建service的实现类

7-1、UserServiceImpl类

package com.lyz.sharding.service.impl;
 import java.util.List;

import javax.annotation.Resource;

import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Propagation;
import org.springframework.transaction.annotation.Transactional;

import com.lyz.sharding.entity.Student;
import com.lyz.sharding.entity.User;
import com.lyz.sharding.mapper.StudentMapper;
import com.lyz.sharding.mapper.UserMapper;
import com.lyz.sharding.service.UserService;

@Service
@Transactional
public class UserServiceImpl implements UserService {

    @Resource
    public UserMapper userMapper;

    @Resource
    public StudentMapper studentMapper;

    public boolean insert(User u) {
        return userMapper.insert(u) > 0 ? true :false;
    }

    public List<User> findAll() {
        return userMapper.findAll();
    }

    public List<User> findByUserIds(List<Integer> ids) {
        return userMapper.findByUserIds(ids);
    }

    @Transactional(propagation=Propagation.REQUIRED)
    public void transactionTestSucess() {
        User u = new User();
        u.setUserId(13);
        u.setAge(25);
        u.setName("war3 1.27");
        userMapper.insert(u);

        Student student = new Student();
        student.setStudentId(21);
        student.setAge(21);
        student.setName("hehe");
        studentMapper.insert(student);
    }

    @Transactional(propagation=Propagation.REQUIRED)
    public void transactionTestFailure() throws IllegalAccessException {
        User u = new User();
        u.setUserId(13);
        u.setAge(25);
        u.setName("war3 1.27 good");
        userMapper.insert(u);

        Student student = new Student();
        student.setStudentId(21);
        student.setAge(21);
        student.setName("hehe1");
        studentMapper.insert(student);
        throw new IllegalAccessException();
    }

}

　　7-2、StudentServiceImpl类

package com.lyz.sharding.service.impl;
import javax.annotation.Resource;

import org.springframework.stereotype.Service;

import com.lyz.sharding.entity.Student;
import com.lyz.sharding.mapper.StudentMapper;
import com.lyz.sharding.service.StudentService;

@Service
public class StudentServiceImpl implements StudentService{

    @Resource
    public StudentMapper studentMapper;

    public boolean insert(Student student) {
        return studentMapper.insert(student) > 0 ? true : false;
    }

}

　　

8、创建分库逻辑

8-1、User分库逻辑UserSingleKeyDatabaseShardingAlgorithm类

package com.lyz.sharding.algorithm;

import java.util.Collection;
import java.util.LinkedHashSet;

import com.dangdang.ddframe.rdb.sharding.api.ShardingValue;
import com.dangdang.ddframe.rdb.sharding.api.strategy.database.SingleKeyDatabaseShardingAlgorithm;
import com.google.common.collect.Range;

/**
 * user表分库的逻辑函数
 * @author liuyazhuang
 *
 */
public class UserSingleKeyDatabaseShardingAlgorithm implements SingleKeyDatabaseShardingAlgorithm<Integer>{

    /**
     * sql 中关键字 匹配符为 =的时候，表的路由函数
     */
    public String doEqualSharding(Collection<String> availableTargetNames, ShardingValue<Integer> shardingValue) {
        for (String each : availableTargetNames) {
            if (each.endsWith(shardingValue.getValue() % 2 + "")) {
                return each;
            }
        }
        throw new IllegalArgumentException();
    }

    /**
     * sql 中关键字 匹配符为 in 的时候，表的路由函数
     */
    public Collection<String> doInSharding(Collection<String> availableTargetNames, ShardingValue<Integer> shardingValue) {
        Collection<String> result = new LinkedHashSet<String>(availableTargetNames.size());
        for (Integer value : shardingValue.getValues()) {
            for (String tableName : availableTargetNames) {
                if (tableName.endsWith(value % 2 + "")) {
                    result.add(tableName);
                }
            }
        }
        return result;
    }

    /**
     * sql 中关键字 匹配符为 between的时候，表的路由函数
     */
    public Collection<String> doBetweenSharding(Collection<String> availableTargetNames,
            ShardingValue<Integer> shardingValue) {
        Collection<String> result = new LinkedHashSet<String>(availableTargetNames.size());
        Range<Integer> range = (Range<Integer>) shardingValue.getValueRange();
        for (Integer i = range.lowerEndpoint(); i <= range.upperEndpoint(); i++) {
            for (String each : availableTargetNames) {
                if (each.endsWith(i % 2 + "")) {
                    result.add(each);
                }
            }
        }
        return result;
    }

}

　　8-2、Student分库逻辑StudentSingleKeyDatabaseShardingAlgorithm

package com.lyz.sharding.algorithm;
import java.util.Collection;
import java.util.LinkedHashSet;

import com.dangdang.ddframe.rdb.sharding.api.ShardingValue;
import com.dangdang.ddframe.rdb.sharding.api.strategy.database.SingleKeyDatabaseShardingAlgorithm;
import com.google.common.collect.Range;

/**
 * user表分库的逻辑函数
 * @author liuyazhuang
 *
 */
public class StudentSingleKeyDatabaseShardingAlgorithm implements SingleKeyDatabaseShardingAlgorithm<Integer>{

    /**
     * sql 中关键字 匹配符为 =的时候，表的路由函数
     */
	@Override
    public String doEqualSharding(Collection<String> availableTargetNames, ShardingValue<Integer> shardingValue) {
        for (String each : availableTargetNames) {
            if (each.endsWith(shardingValue.getValue() % 2 + "")) {
                return each;
            }
        }
        throw new IllegalArgumentException();
    }

    /**
     * sql 中关键字 匹配符为 in 的时候，表的路由函数
     */
	@Override
    public Collection<String> doInSharding(Collection<String> availableTargetNames, ShardingValue<Integer> shardingValue) {
        Collection<String> result = new LinkedHashSet<String>(availableTargetNames.size());
        for (Integer value : shardingValue.getValues()) {
            for (String tableName : availableTargetNames) {
                if (tableName.endsWith(value % 2 + "")) {
                    result.add(tableName);
                }
            }
        }
        return result;
    }

    /**
     * sql 中关键字 匹配符为 between的时候，表的路由函数
     */
	@Override
    public Collection<String> doBetweenSharding(Collection<String> availableTargetNames,
            ShardingValue<Integer> shardingValue) {
        Collection<String> result = new LinkedHashSet<String>(availableTargetNames.size());
        Range<Integer> range = (Range<Integer>) shardingValue.getValueRange();
        for (Integer i = range.lowerEndpoint(); i <= range.upperEndpoint(); i++) {
            for (String each : availableTargetNames) {
                if (each.endsWith(i % 2 + "")) {
                    result.add(each);
                }
            }
        }
        return result;
    }

}

　　

9、创建分表逻辑

9-1、User分表逻辑UserSingleKeyTableShardingAlgorithm

package com.lyz.sharding.algorithm;

import java.util.Collection;
import java.util.LinkedHashSet;

import com.dangdang.ddframe.rdb.sharding.api.ShardingValue;
import com.dangdang.ddframe.rdb.sharding.api.strategy.table.SingleKeyTableShardingAlgorithm;
import com.google.common.collect.Range;
/**
 * 因为t_student实际表在每个库中只有3个，所以 %3
 * @author iuyazhuang
 *
 */
public class UserSingleKeyTableShardingAlgorithm implements SingleKeyTableShardingAlgorithm<Integer>{

    /**
     * sql 中 = 操作时，table的映射
     */
    public String doEqualSharding(Collection<String> tableNames, ShardingValue<Integer> shardingValue) {
        for (String each : tableNames) {
            if (each.endsWith(("0".concat(String.valueOf(shardingValue.getValue() % 3))))) {
                return each;
            }
        }
        throw new IllegalArgumentException();
    }

    /**
     * sql 中 in 操作时，table的映射
     */
    public Collection<String> doInSharding(Collection<String> tableNames, ShardingValue<Integer> shardingValue) {
        Collection<String> result = new LinkedHashSet<String>(tableNames.size());
        for (Integer value : shardingValue.getValues()) {
            for (String tableName : tableNames) {
                if (tableName.endsWith(("0".concat(String.valueOf(value % 3))))) {
                    result.add(tableName);
                }
            }
        }
        return result;
    }

    /**
     * sql 中 between 操作时，table的映射
     */
    public Collection<String> doBetweenSharding(Collection<String> tableNames,
            ShardingValue<Integer> shardingValue) {
        Collection<String> result = new LinkedHashSet<String>(tableNames.size());
        Range<Integer> range = (Range<Integer>) shardingValue.getValueRange();
        for (Integer i = range.lowerEndpoint(); i <= range.upperEndpoint(); i++) {
            for (String each : tableNames) {
                if (each.endsWith(("0".concat(String.valueOf(i % 3))))) {
                    result.add(each);
                }
            }
        }
        return result;
    }

}

　　9-2、创建Student分表逻辑StudentSingleKeyTableShardingAlgorithm

package com.lyz.sharding.algorithm;
 import java.util.Collection;
import java.util.LinkedHashSet;

import com.dangdang.ddframe.rdb.sharding.api.ShardingValue;
import com.dangdang.ddframe.rdb.sharding.api.strategy.table.SingleKeyTableShardingAlgorithm;
import com.google.common.collect.Range;

/**
 * 因为t_student实际表在每个库中只有2个，所以 %2
 * @author iuyazhuang
 *
 */
public class StudentSingleKeyTableShardingAlgorithm implements SingleKeyTableShardingAlgorithm<Integer>{

    /**
     * sql 中 = 操作时，table的映射
     */
    public String doEqualSharding(Collection<String> tableNames, ShardingValue<Integer> shardingValue) {
        for (String each : tableNames) {
            if (each.endsWith("0".concat(String.valueOf(shardingValue.getValue() % 2)))) {
                return each;
            }
        }
        throw new IllegalArgumentException();
    }

    /**
     * sql 中 in 操作时，table的映射
     */
    public Collection<String> doInSharding(Collection<String> tableNames, ShardingValue<Integer> shardingValue) {
        Collection<String> result = new LinkedHashSet<String>(tableNames.size());
        for (Integer value : shardingValue.getValues()) {
            for (String tableName : tableNames) {
                if (tableName.endsWith("0".concat(String.valueOf(value % 2)))) {
                    result.add(tableName);
                }
            }
        }
        return result;
    }

    /**
     * sql 中 between 操作时，table的映射
     */
    public Collection<String> doBetweenSharding(Collection<String> tableNames,
            ShardingValue<Integer> shardingValue) {
        Collection<String> result = new LinkedHashSet<String>(tableNames.size());
        Range<Integer> range = (Range<Integer>) shardingValue.getValueRange();
        for (Integer i = range.lowerEndpoint(); i <= range.upperEndpoint(); i++) {
            for (String each : tableNames) {
                if (each.endsWith("0".concat(String.valueOf(i % 2)))) {
                    result.add(each);
                }
            }
        }
        return result;
    }

}

　　

10、创建Mapper.xml

10-1、创建UserMapper.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.lyz.sharding.mapper.UserMapper" >
  <resultMap id="resultMap" type="com.lyz.sharding.entity.User" >
    <id column="id" property="id" jdbcType="INTEGER" />
    <result column="user_id" property="userId" jdbcType="INTEGER" />
    <result column="name" property="name" jdbcType="VARCHAR" />
    <result column="age" property="age" jdbcType="INTEGER" />
  </resultMap>

  <insert id="insert">
    insert into t_user (user_id,name,age) values (#{userId},#{name},#{age})
  </insert>

  <select id="findAll" resultMap="resultMap">
   select <include refid="columnsName"/> from t_user
  </select>

  <select id="findByUserIds" resultMap="resultMap">
    select <include refid="columnsName"/> from t_user where user_id in (
     <foreach collection="list" item="item" separator=",">
        #{item}
     </foreach>
    )

  </select>

  <sql id="columnsName">
     id,user_id,name,age
  </sql>
</mapper>

　　10-2、创建StudentMapper.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.lyz.sharding.mapper.StudentMapper" >
  <resultMap id="resultMap" type="com.lyz.sharding.entity.Student" >
    <id column="id" property="id" jdbcType="INTEGER" />
    <result column="student_id" property="studentId" jdbcType="INTEGER" />
    <result column="name" property="name" jdbcType="VARCHAR" />
    <result column="age" property="age" jdbcType="INTEGER" />
  </resultMap>

  <insert id="insert">
    insert into t_student (student_id,name,age) values (#{studentId},#{name},#{age})
  </insert>

  <select id="findAll" resultMap="resultMap">
   select <include refid="columnsName"/> from t_student
  </select>

  <select id="findByStudentIds" resultMap="resultMap">
    select <include refid="columnsName"/> from t_student where student_id in (
     <foreach collection="list" item="item" separator=",">
        #{item}
     </foreach>
    )

  </select>

  <sql id="columnsName">
     id,student_id,name,age
  </sql>
</mapper>

　　

11、创建jdbc_dev.properties

jdbc_driver0   = com.mysql.jdbc.Driver
jdbc_url0      = jdbc:mysql://localhost:3306/sharding_0?useUnicode=true&characterEncoding=UTF-8&allowMultiQueries=true
jdbc_username0 = root
jdbc_password0 = root

jdbc_driver1   = com.mysql.jdbc.Driver
jdbc_url1      = jdbc:mysql://localhost:3306/sharding_1?useUnicode=true&characterEncoding=UTF-8&allowMultiQueries=true
jdbc_username1 = root
jdbc_password1 = root

validationQuery=SELECT 1

　　

12、创建spring配置文件

12-1、spring-database.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"
    xmlns:mybatis-spring="http://mybatis.org/schema/mybatis-spring"
    xmlns:tx="http://www.springframework.org/schema/tx"
    xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
        http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.0.xsd
        http://mybatis.org/schema/mybatis-spring http://mybatis.org/schema/mybatis-spring-1.2.xsd
        http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.0.xsd">

    <bean class="org.springframework.beans.factory.config.PropertyPlaceholderConfigurer">
        <property name="locations">
            <list>
                <value>classpath:config/resource/jdbc_dev.properties</value>
            </list>
        </property>
    </bean>

    <bean name="sharding_0" class="com.alibaba.druid.pool.DruidDataSource" init-method="init" destroy-method="close">
        <property name="url" value="${jdbc_url0}" />
        <property name="username" value="${jdbc_username0}" />
        <property name="password" value="${jdbc_password0}" />
<!--         <property name="driverClass" value="${jdbc_driver0}" /> -->
        <!-- 初始化连接大小 -->
        <property name="initialSize" value="0" />
        <!-- 连接池最大使用连接数量 -->
        <property name="maxActive" value="20" />
        <!-- 连接池最小空闲 -->
        <property name="minIdle" value="0" />
        <!-- 获取连接最大等待时间 -->
        <property name="maxWait" value="60000" />
        <property name="validationQuery" value="${validationQuery}" />
        <property name="testOnBorrow" value="false" />
        <property name="testOnReturn" value="false" />
        <property name="testWhileIdle" value="true" />
        <!-- 配置间隔多久才进行一次检测，检测需要关闭的空闲连接，单位是毫秒 -->
        <property name="timeBetweenEvictionRunsMillis" value="60000" />
        <!-- 配置一个连接在池中最小生存的时间，单位是毫秒 -->
        <property name="minEvictableIdleTimeMillis" value="25200000" />
        <!-- 打开removeAbandoned功能 -->
        <property name="removeAbandoned" value="true" />
        <!-- 1800秒，也就是30分钟 -->
        <property name="removeAbandonedTimeout" value="1800" />
        <!-- 关闭abanded连接时输出错误日志 -->
        <property name="logAbandoned" value="true" />
        <property name="filters" value="stat" />
    </bean>

    <bean name="sharding_1" class="com.alibaba.druid.pool.DruidDataSource" init-method="init" destroy-method="close">
        <property name="url" value="${jdbc_url1}" />
        <property name="username" value="${jdbc_username1}" />
        <property name="password" value="${jdbc_password1}" />
<!--         <property name="driverClass" value="${jdbc_driver1}" /> -->
        <!-- 初始化连接大小 -->
        <property name="initialSize" value="0" />
        <!-- 连接池最大使用连接数量 -->
        <property name="maxActive" value="20" />
        <!-- 连接池最小空闲 -->
        <property name="minIdle" value="0" />
        <!-- 获取连接最大等待时间 -->
        <property name="maxWait" value="60000" />
        <property name="validationQuery" value="${validationQuery}" />
        <property name="testOnBorrow" value="false" />
        <property name="testOnReturn" value="false" />
        <property name="testWhileIdle" value="true" />
        <!-- 配置间隔多久才进行一次检测，检测需要关闭的空闲连接，单位是毫秒 -->
        <property name="timeBetweenEvictionRunsMillis" value="60000" />
        <!-- 配置一个连接在池中最小生存的时间，单位是毫秒 -->
        <property name="minEvictableIdleTimeMillis" value="25200000" />
        <!-- 打开removeAbandoned功能 -->
        <property name="removeAbandoned" value="true" />
        <!-- 1800秒，也就是30分钟 -->
        <property name="removeAbandonedTimeout" value="1800" />
        <!-- 关闭abanded连接时输出错误日志 -->
        <property name="logAbandoned" value="true" />
        <property name="filters" value="stat" />
    </bean>

</beans>

　　12-2、spring-sharding.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"
    xmlns:mybatis-spring="http://mybatis.org/schema/mybatis-spring"
    xmlns:tx="http://www.springframework.org/schema/tx"
    xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
        http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.0.xsd
        http://mybatis.org/schema/mybatis-spring http://mybatis.org/schema/mybatis-spring-1.2.xsd
        http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.0.xsd">

    <context:component-scan base-package="com.lyz.sharding" />

    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <property name="basePackage" value="com.lyz.sharding.mapper"/>
        <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"/>
    </bean>

    <!-- 配置sqlSessionFactory -->
     <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <property name="dataSource" ref="shardingDataSource"/>
        <property name="mapperLocations" value="classpath*:config/mapper/*Mapper.xml"/>
    </bean>

    <!-- 配置好dataSourceRulue,即对数据源进行管理 -->
    <bean id="dataSourceRule" class="com.dangdang.ddframe.rdb.sharding.api.rule.DataSourceRule">
        <constructor-arg>
            <map>
                <entry key="sharding_0" value-ref="sharding_0"/>
                <entry key="sharding_1" value-ref="sharding_1"/>
            </map>
        </constructor-arg>
    </bean>

    <!-- 对t_user表的配置，进行分库配置，逻辑表名为t_user，每个库有实际的三张表 -->
    <bean id="userTableRule" class="com.dangdang.ddframe.rdb.sharding.api.rule.TableRule">
        <constructor-arg value="t_user" index="0"/>
        <constructor-arg index="1">
            <list>
                <value>t_user_00</value>
                <value>t_user_01</value>
                <value>t_user_02</value>
            </list>
        </constructor-arg>
        <constructor-arg index="2" ref="dataSourceRule"/>
        <constructor-arg index="3" ref="userDatabaseShardingStrategy"/>
        <constructor-arg index="4" ref="userTableShardingStrategy"/>
    </bean>

    <!-- t_user分库策略 -->
    <bean id="userDatabaseShardingStrategy" class="com.dangdang.ddframe.rdb.sharding.api.strategy.database.DatabaseShardingStrategy">
        <constructor-arg index="0" value="user_id"/>
        <constructor-arg index="1">
            <bean class="com.lyz.sharding.algorithm.UserSingleKeyDatabaseShardingAlgorithm" />
        </constructor-arg>
    </bean>

    <!-- t_user 分表策略 -->
    <bean id="userTableShardingStrategy" class="com.dangdang.ddframe.rdb.sharding.api.strategy.table.TableShardingStrategy">
        <constructor-arg index="0" value="user_id"/>
        <constructor-arg index="1">
            <bean class="com.lyz.sharding.algorithm.UserSingleKeyTableShardingAlgorithm" />
        </constructor-arg>
    </bean>

      <!-- 对t_student表的配置，进行分库配置，逻辑表名为t_student，每个库有实际的三张表 -->
    <bean id="studentTableRule" class="com.dangdang.ddframe.rdb.sharding.api.rule.TableRule">
        <constructor-arg value="t_student" index="0"/>
        <constructor-arg index="1">
            <list>
                <value>t_student_00</value>
                <value>t_student_01</value>
            </list>
        </constructor-arg>
        <constructor-arg index="2" ref="dataSourceRule"/>
        <constructor-arg index="3" ref="studentDatabaseShardingStrategy"/>
        <constructor-arg index="4" ref="studentTableShardingStrategy"/>
    </bean>

     <!-- t_student分库策略 -->
    <bean id="studentDatabaseShardingStrategy" class="com.dangdang.ddframe.rdb.sharding.api.strategy.database.DatabaseShardingStrategy">
        <constructor-arg index="0" value="student_id"/>
        <constructor-arg index="1">
            <bean class="com.lyz.sharding.algorithm.StudentSingleKeyDatabaseShardingAlgorithm" />
        </constructor-arg>
    </bean>

    <!-- t_student 分表策略 -->
    <bean id="studentTableShardingStrategy" class="com.dangdang.ddframe.rdb.sharding.api.strategy.table.TableShardingStrategy">
        <constructor-arg index="0" value="student_id"/>
        <constructor-arg index="1">
            <bean class="com.lyz.sharding.algorithm.StudentSingleKeyTableShardingAlgorithm" />
        </constructor-arg>
    </bean>

    <!-- 构成分库分表的规则 传入数据源集合和每个表的分库分表的具体规则 -->
    <bean id="shardingRule" class="com.dangdang.ddframe.rdb.sharding.api.rule.ShardingRule">
        <constructor-arg index="0" ref="dataSourceRule"/>
        <constructor-arg index="1">
            <list>
                <ref bean="userTableRule"/>
                <ref bean="studentTableRule"/>
            </list>
        </constructor-arg>
    </bean>

    <!-- 对datasource进行封装 -->
    <bean id="shardingDataSource" class="com.dangdang.ddframe.rdb.sharding.api.ShardingDataSource">
        <constructor-arg ref="shardingRule"/>
    </bean>

    <!-- 事务 -->
    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="shardingDataSource" />
    </bean>

    <tx:annotation-driven transaction-manager="transactionManager" />

</beans>

　　

13、创建log4j.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE log4j:configuration PUBLIC "-//APACHE//DTD LOG4J 1.2//EN" "log4j.dtd">
<log4j:configuration xmlns:log4j="http://jakarta.apache.org/log4j/">
  <!-- [控制台STDOUT] -->
  <appender name="console" class="org.apache.log4j.ConsoleAppender">
     <param name="encoding" value="GBK" />
     <param name="target" value="System.out" />
     <layout class="org.apache.log4j.PatternLayout">
       <param name="ConversionPattern" value="%-5p %c{2} - %m%n" />
     </layout>
  </appender>

  <!-- [公共Appender] -->
  <appender name="DEFAULT-APPENDER" class="org.apache.log4j.DailyRollingFileAppender">
     <param name="File" value="logs/common-default.log" />
     <param name="Append" value="true" />
     <param name="encoding" value="GBK" />
     <param name="DatePattern" value="'.'yyyy-MM-dd'.log'" />
     <layout class="org.apache.log4j.PatternLayout">
    <param name="ConversionPattern" value="%d %-5p %c{2} - %m%n" />
     </layout>
   </appender>

   <!-- [错误日志APPENDER] -->
   <appender name="ERROR-APPENDER" class="org.apache.log4j.DailyRollingFileAppender">
     <param name="File" value="logs/common-error.log" />
     <param name="Append" value="true" />
     <param name="encoding" value="GBK" />
     <param name="threshold" value="error" />
     <param name="DatePattern" value="'.'yyyy-MM-dd'.log'" />
     <layout class="org.apache.log4j.PatternLayout">
        <param name="ConversionPattern" value="%d %-5p %c{2} - %m%n" />
     </layout>
   </appender>

   <!-- [组件日志APPENDER] -->
   <appender name="COMPONENT-APPENDER" class="org.apache.log4j.DailyRollingFileAppender">
     <param name="File" value="logs/logistics-component.log" />
     <param name="Append" value="true" />
     <param name="encoding" value="GBK" />
     <param name="DatePattern" value="'.'yyyy-MM-dd'.log'" />
     <layout class="org.apache.log4j.PatternLayout">
    <param name="ConversionPattern" value="%d %-5p %c{2} - %m%n" />
     </layout>
   </appender>

   <!-- [组件日志] -->
   <logger name="LOGISTICS-COMPONENT">
      <level value="${loggingLevel}" />
      <appender-ref ref="COMPONENT-APPENDER" />
      <appender-ref ref="ERROR-APPENDER" />
   </logger>

   <!-- Root Logger -->
   <root>
       <level value="${rootLevel}"></level>
       <appender-ref ref="DEFAULT-APPENDER" />
       <appender-ref ref="ERROR-APPENDER" />
       <appender-ref ref="console" />
       <appender-ref ref="COMPONENT-APPENDER" />
   </root>
</log4j:configuration>

　　

14、创建测试类ShardingJdbcMybatisTest

package com.lyz.sharding.test;

import java.util.Arrays;
import java.util.List;

import javax.annotation.Resource;

import org.junit.Assert;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.test.context.ContextConfiguration;
import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;

import com.lyz.sharding.entity.Student;
import com.lyz.sharding.entity.User;
import com.lyz.sharding.service.StudentService;
import com.lyz.sharding.service.UserService;

/**
 * 测试分库分表规则
 * @author liuyazhuang
 *
 */
@RunWith(SpringJUnit4ClassRunner.class)
@ContextConfiguration(locations = { "classpath*:config/spring/spring-database.xml", "classpath*:config/spring/spring-sharding.xml" })
public class ShardingJdbcMybatisTest {

    @Resource
    public UserService userService;

    @Resource
    public StudentService studentService;

    @Test
    public void testUserInsert() {
        User u = new User();
        u.setUserId(11);
        u.setAge(25);
        u.setName("github");
        Assert.assertEquals(userService.insert(u), true);
    }

    @Test
    public void testStudentInsert() {
        Student student = new Student();
        student.setStudentId(21);
        student.setAge(21);
        student.setName("hehe");
        Assert.assertEquals(studentService.insert(student), true);
    }

    @Test
    public void testFindAll(){
        List<User> users = userService.findAll();
        if(null != users && !users.isEmpty()){
            for(User u :users){
                System.out.println(u);
            }
        }
    }

    @Test
    public void testSQLIN(){
        List<User> users = userService.findByUserIds(Arrays.asList(1));
        if(null != users && !users.isEmpty()){
            for(User u :users){
                System.out.println(u);
            }
        }
    }

    @Test
    public void testTransactionTestSucess(){
        userService.transactionTestSucess();
    }

    @Test(expected = IllegalAccessException.class)
    public void testTransactionTestFailure() throws IllegalAccessException{
        userService.transactionTestFailure();
    }
}

　　

三、测试

我们进行ShardingJdbcMybatisTest类，查看数据表数据，即可看到我们的程序利用sharding-jdbc实现了分库分表操作。

四、温馨提示

大家可以到链接http://download.csdn.net/download/l1028386804/10258290下载完整的sharding-jdbc分库分表实例源代码
