1.说明

本文详细介绍Spring Cloud创建Eureka模块的方法,
基于已经创建好的Spring Cloud父工程,
请参考SpringCloud创建项目父工程,
在里面创建Eureka模块,
用于Spring Cloud的微服务注册。
这里介绍的是Eureka单机版。

2.创建eureka-server模块

这一步创建一个Maven Module,
作为Spring Cloud的父工程下的一个子工程:

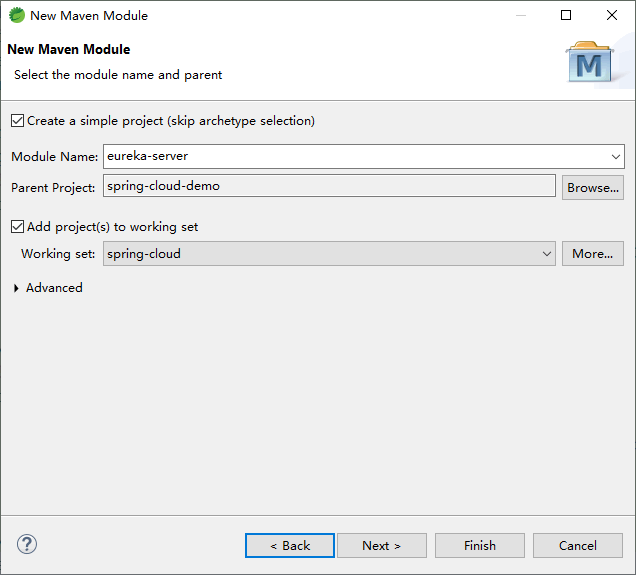

在父工程spring-cloud-demo上右键 -> New -> Other... -> Maven -> Maven Project

勾选Create a simple project(skip archetype selection),
输入Module Name:eureka-server,
查看Parent Project:spring-cloud-demo,
如果不是自己选择的父工程,请重新选择。

点击Finish完成工程创建。

创建后可以看到pom.xml如下:

<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<parent>
<groupId>com.yuwen.spring</groupId>
<artifactId>spring-cloud-demo</artifactId>
<version>0.0.1-SNAPSHOT</version>
</parent>
<artifactId>eureka-server</artifactId>
</project>

3.添加依赖

在pom.xml中增加eureka-server的依赖:

<dependencies>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
</dependency>
</dependencies>

4.新增配置文件

在src/main/resource目录下新增application.yml文件,
并且增加如下配置:

server:
port: 7001 eureka:
instance:
#eureka服务端的实例名字(主机名)
hostname: localhost
client:
#表示不向注册中心注册自己
register-with-eureka: false
#表示自己就是注册中心,职责是维护服务实例,并不需要去检索服务
fetch-registry: false
service-url:
#设置与eureka server交互的地址查询服务和注册服务都需要依赖这个地址
defaultZone: http://${eureka.instance.hostname}:${server.port}/eureka/

5.新增主启动类

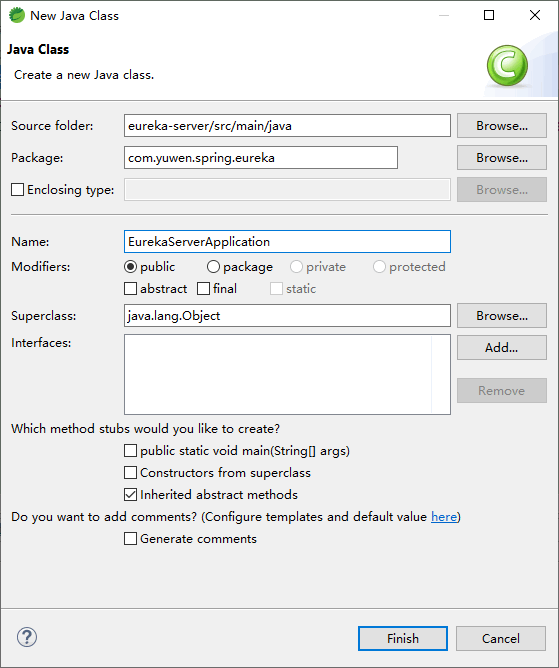

在src/main/java目录下新增主启动类,
Package:com.yuwen.spring.eureka
Name:EurekaServerApplication

然后修改EurekaServerApplication.java如下,
注意一定要有@EnableEurekaServer注解,
表示这是一个Eureka服务注册中心:

package com.yuwen.spring.eureka;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.server.EnableEurekaServer; @EnableEurekaServer
@SpringBootApplication
public class EurekaServerApplication {
public static void main(String[] args) {
SpringApplication.run(EurekaServerApplication.class, args);
}
}

6.启动eureka-server

右键主启动类EurekaServerApplication.java,
Run As ... -> Java Application
成功启动日志如下,
可以看到对外提供的服务端口是7001:

  .   ____          _            __ _ _
/\\ / ___'_ __ _ _(_)_ __ __ _ \ \ \ \
( ( )\___ | '_ | '_| | '_ \/ _` | \ \ \ \
\\/ ___)| |_)| | | | | || (_| | ) ) ) )
' |____| .__|_| |_|_| |_\__, | / / / /
=========|_|==============|___/=/_/_/_/
:: Spring Boot :: (v2.2.2.RELEASE) 2020-07-09 14:49:10.959 INFO 8164 --- [ main] c.y.s.eureka.EurekaServerApplication : No active profile set, falling back to default profiles: default
2020-07-09 14:49:11.474 WARN 8164 --- [ main] o.s.boot.actuate.endpoint.EndpointId : Endpoint ID 'service-registry' contains invalid characters, please migrate to a valid format.
2020-07-09 14:49:11.591 INFO 8164 --- [ main] o.s.cloud.context.scope.GenericScope : BeanFactory id=ff22f1b9-a933-39aa-b63c-21b30208dbd7
2020-07-09 14:49:12.361 INFO 8164 --- [ main] o.s.b.w.embedded.tomcat.TomcatWebServer : Tomcat initialized with port(s): 7001 (http)
2020-07-09 14:49:12.370 INFO 8164 --- [ main] o.apache.catalina.core.StandardService : Starting service [Tomcat]
2020-07-09 14:49:12.370 INFO 8164 --- [ main] org.apache.catalina.core.StandardEngine : Starting Servlet engine: [Apache Tomcat/9.0.29]
2020-07-09 14:49:12.474 INFO 8164 --- [ main] o.a.c.c.C.[Tomcat].[localhost].[/] : Initializing Spring embedded WebApplicationContext
2020-07-09 14:49:12.474 INFO 8164 --- [ main] o.s.web.context.ContextLoader : Root WebApplicationContext: initialization completed in 1503 ms
2020-07-09 14:49:12.591 WARN 8164 --- [ main] c.n.c.sources.URLConfigurationSource : No URLs will be polled as dynamic configuration sources.
2020-07-09 14:49:12.591 INFO 8164 --- [ main] c.n.c.sources.URLConfigurationSource : To enable URLs as dynamic configuration sources, define System property archaius.configurationSource.additionalUrls or make config.properties available on classpath.
2020-07-09 14:49:12.607 INFO 8164 --- [ main] c.netflix.config.DynamicPropertyFactory : DynamicPropertyFactory is initialized with configuration sources: com.netflix.config.ConcurrentCompositeConfiguration@2c7a8af2
2020-07-09 14:49:13.556 INFO 8164 --- [ main] c.s.j.s.i.a.WebApplicationImpl : Initiating Jersey application, version 'Jersey: 1.19.1 03/11/2016 02:08 PM'
2020-07-09 14:49:13.604 INFO 8164 --- [ main] c.n.d.provider.DiscoveryJerseyProvider : Using JSON encoding codec LegacyJacksonJson
2020-07-09 14:49:13.605 INFO 8164 --- [ main] c.n.d.provider.DiscoveryJerseyProvider : Using JSON decoding codec LegacyJacksonJson
2020-07-09 14:49:13.708 INFO 8164 --- [ main] c.n.d.provider.DiscoveryJerseyProvider : Using XML encoding codec XStreamXml
2020-07-09 14:49:13.708 INFO 8164 --- [ main] c.n.d.provider.DiscoveryJerseyProvider : Using XML decoding codec XStreamXml
2020-07-09 14:49:13.967 WARN 8164 --- [ main] o.s.c.n.a.ArchaiusAutoConfiguration : No spring.application.name found, defaulting to 'application'
2020-07-09 14:49:13.967 WARN 8164 --- [ main] c.n.c.sources.URLConfigurationSource : No URLs will be polled as dynamic configuration sources.
2020-07-09 14:49:13.967 INFO 8164 --- [ main] c.n.c.sources.URLConfigurationSource : To enable URLs as dynamic configuration sources, define System property archaius.configurationSource.additionalUrls or make config.properties available on classpath.
2020-07-09 14:49:14.160 INFO 8164 --- [ main] o.s.s.concurrent.ThreadPoolTaskExecutor : Initializing ExecutorService 'applicationTaskExecutor'
2020-07-09 14:49:15.023 WARN 8164 --- [ main] ockingLoadBalancerClientRibbonWarnLogger : You already have RibbonLoadBalancerClient on your classpath. It will be used by default. As Spring Cloud Ribbon is in maintenance mode. We recommend switching to BlockingLoadBalancerClient instead. In order to use it, set the value of `spring.cloud.loadbalancer.ribbon.enabled` to `false` or remove spring-cloud-starter-netflix-ribbon from your project.
2020-07-09 14:49:15.053 INFO 8164 --- [ main] o.s.c.n.eureka.InstanceInfoFactory : Setting initial instance status as: STARTING
2020-07-09 14:49:15.074 INFO 8164 --- [ main] com.netflix.discovery.DiscoveryClient : Initializing Eureka in region us-east-1
2020-07-09 14:49:15.075 INFO 8164 --- [ main] com.netflix.discovery.DiscoveryClient : Client configured to neither register nor query for data.
2020-07-09 14:49:15.081 INFO 8164 --- [ main] com.netflix.discovery.DiscoveryClient : Discovery Client initialized at timestamp 1594277355080 with initial instances count: 0
2020-07-09 14:49:15.110 INFO 8164 --- [ main] c.n.eureka.DefaultEurekaServerContext : Initializing ...
2020-07-09 14:49:15.112 WARN 8164 --- [ main] c.n.eureka.cluster.PeerEurekaNodes : The replica size seems to be empty. Check the route 53 DNS Registry
2020-07-09 14:49:15.147 INFO 8164 --- [ main] c.n.e.registry.AbstractInstanceRegistry : Finished initializing remote region registries. All known remote regions: []
2020-07-09 14:49:15.148 INFO 8164 --- [ main] c.n.eureka.DefaultEurekaServerContext : Initialized
2020-07-09 14:49:15.157 INFO 8164 --- [ main] o.s.b.a.e.web.EndpointLinksResolver : Exposing 2 endpoint(s) beneath base path '/actuator'
2020-07-09 14:49:15.179 INFO 8164 --- [ main] o.s.c.n.e.s.EurekaServiceRegistry : Registering application UNKNOWN with eureka with status UP
2020-07-09 14:49:15.180 INFO 8164 --- [ Thread-11] o.s.c.n.e.server.EurekaServerBootstrap : Setting the eureka configuration..
2020-07-09 14:49:15.180 INFO 8164 --- [ Thread-11] o.s.c.n.e.server.EurekaServerBootstrap : Eureka data center value eureka.datacenter is not set, defaulting to default
2020-07-09 14:49:15.181 INFO 8164 --- [ Thread-11] o.s.c.n.e.server.EurekaServerBootstrap : Eureka environment value eureka.environment is not set, defaulting to test
2020-07-09 14:49:15.195 INFO 8164 --- [ Thread-11] o.s.c.n.e.server.EurekaServerBootstrap : isAws returned false
2020-07-09 14:49:15.195 INFO 8164 --- [ Thread-11] o.s.c.n.e.server.EurekaServerBootstrap : Initialized server context
2020-07-09 14:49:15.195 INFO 8164 --- [ Thread-11] c.n.e.r.PeerAwareInstanceRegistryImpl : Got 1 instances from neighboring DS node
2020-07-09 14:49:15.196 INFO 8164 --- [ Thread-11] c.n.e.r.PeerAwareInstanceRegistryImpl : Renew threshold is: 1
2020-07-09 14:49:15.196 INFO 8164 --- [ Thread-11] c.n.e.r.PeerAwareInstanceRegistryImpl : Changing status to UP
2020-07-09 14:49:15.204 INFO 8164 --- [ Thread-11] e.s.EurekaServerInitializerConfiguration : Started Eureka Server
2020-07-09 14:49:15.216 INFO 8164 --- [ main] o.s.b.w.embedded.tomcat.TomcatWebServer : Tomcat started on port(s): 7001 (http) with context path ''
2020-07-09 14:49:15.216 INFO 8164 --- [ main] .s.c.n.e.s.EurekaAutoServiceRegistration : Updating port to 7001
2020-07-09 14:49:15.848 INFO 8164 --- [ main] c.y.s.eureka.EurekaServerApplication : Started EurekaServerApplication in 6.65 seconds (JVM running for 7.072)

7.查看Eureka服务

在浏览器中访问Eureka服务页面:

http://localhost:7001

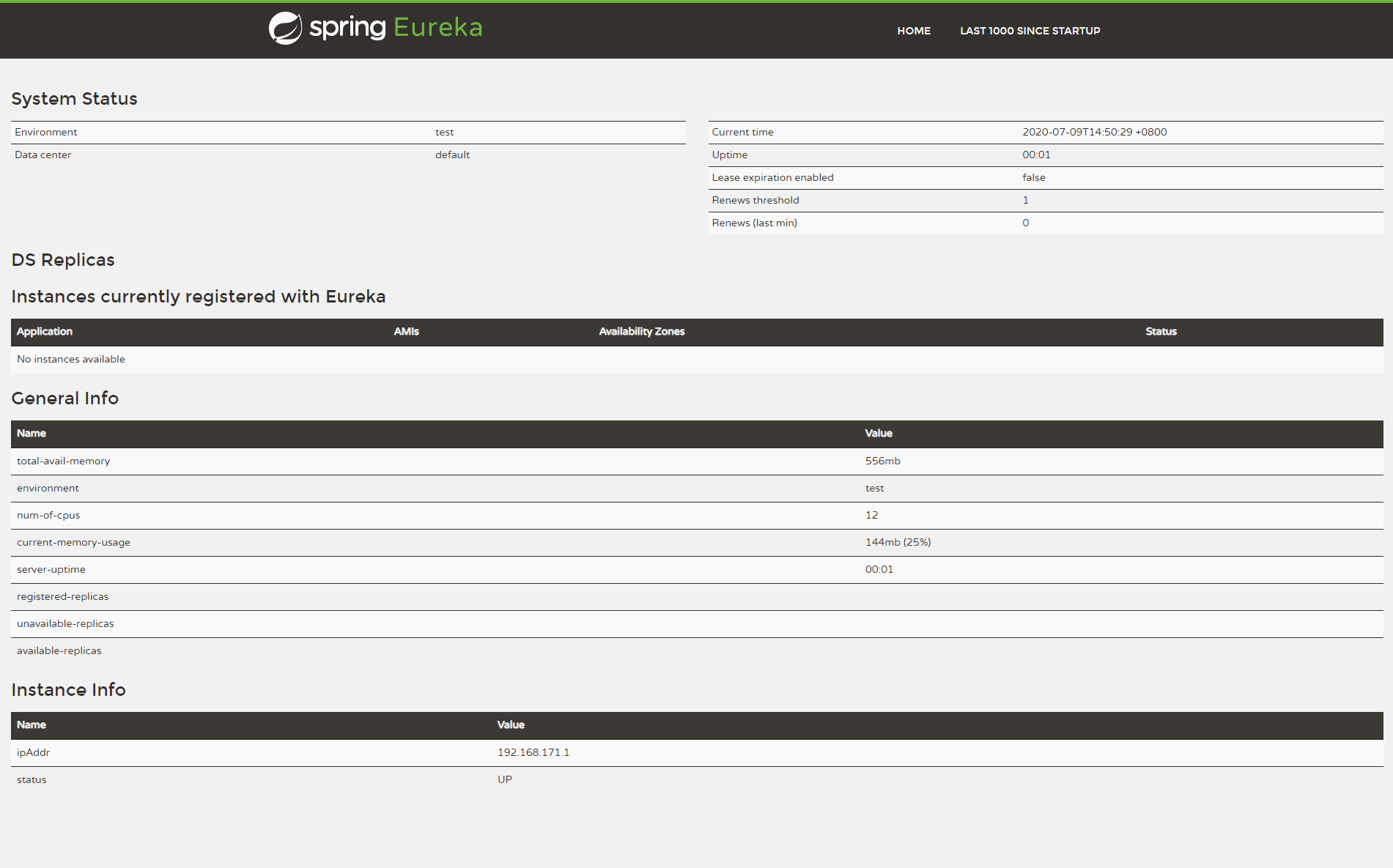

可以看到如下页面:

8.客户端注册到Eureka

Eureka服务启动后,
客户端可以注册到Eureka,
在application.yml中配置自己的主机名,
以及连接的eureka地址:

eureka:
instance:
#eureka客户端的实例名字(主机名)
hostname: gateway-service
client:
service-url:
#表示向注册中心注册自己
register-with-eureka: true
#表示需要去注册中心检索服务
fetch-registry: true
#与eureka server交互的地址,包括查询服务和注册服务
defaultZone: http://localhost:7001/eureka

然后在客户端的主启动类上面加@EnableEurekaClient注解,
这样客户端服务启动之后,

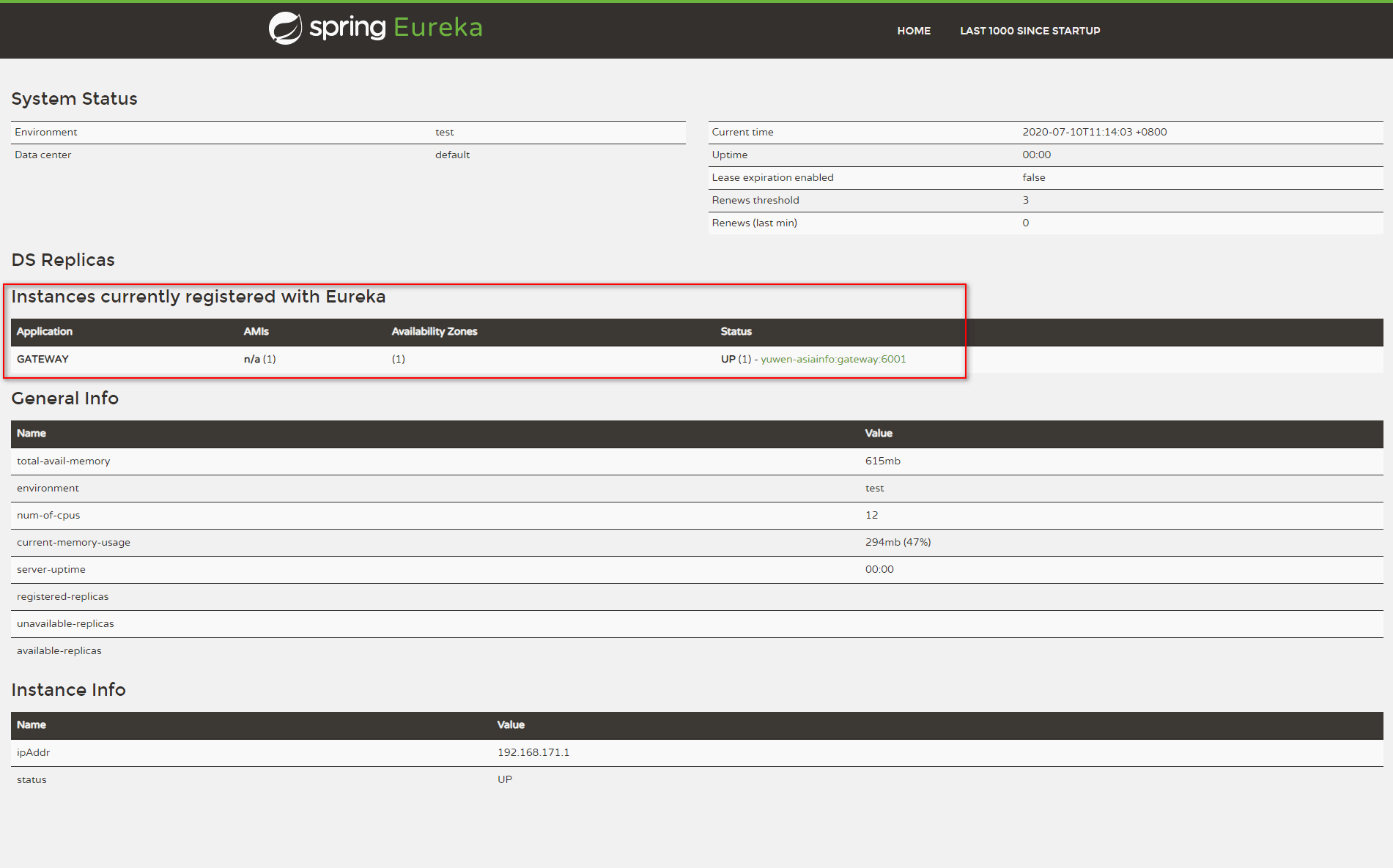

可以看到Eureka页面已经有客户端注册了:
