OpenStack Kilo版加CEPH部署手册

OpenStack Kilo版加CEPH部署手册

作者: yz
联系方式: QQ: 949587200
日期: 2015-7-13
版本: Kilo

转载地址：

http://mp.weixin.qq.com/s__biz=MzAxOTAzMDEwMA==&mid=209225237&idx=1&sn=357afdabafc03e8fb75eb4e1fb9d4bf9&scene=5&ptlang=2052&ADUIN=724042315&ADSESSION=1437612842&ADTAG=CLIENT.QQ.5389_.0&ADPUBNO=26466#rd

 
目录
实验环境
前言
架构图
架构部署
服务器系统安装
全局工作
导入软件源
Iptables服务安装
NTP服务安装
Ceph安装
第一个监视器节点安装
其余监视器节点安装
部署OSD
与Openstack结合
OpenStack控制节点安装
Ceph配置
Mysql服务安装
Rabbitmq服务安装
Keystone服务安装
Glance服务安装
Neutron服务安装
Nova服务安装
Cinder服务安装
计算节点安装
Ceph配置
Neutron服务安装
Nova服务安装
Horizon安装

实验环境
硬件:
曙光 I610r-GV(1台)
CPU：Intel(R) Xeon(R) CPU E5606 @ 2.13GHz * 1
内存：32GB
硬盘：SAS 10K 300G * 1
网卡：Intel Corporation 82574L Gigabit Network Connection * 2
网卡：Intel Corporation 82599ES 10-Gigabit SFI/SFP+ Network Connection(双端口) * 1
曙光 I610r-GV(3台)
CPU：Intel(R) Xeon(R) CPU E5606 @ 2.13GHz * 1
内存：32GB
硬盘：SAS 10K 300G * 1，SSD 160G * 3
网卡：Intel Corporation 82574L Gigabit Network Connection * 2
网卡：Intel Corporation 82599ES 10-Gigabit SFI/SFP+ Network Connection(双端口) * 1
系统：
CentOS 7.1 x64
OpenStack版本：
Kilo（2015.1.0）
Ceph版本：
Hammer（0.94.2）

前言
1. 文档很初级，只是为了带新手入门，很多参数使用默认值
2. 文档中Ceph不使用ceph-deploy部署
3. 后续会有telemetry，lbaas，sahara，swift，trove部署文档
4. 如果网卡不够，可以将管理，虚机，存储合并为一个网络
5. 文档中ceph只建立一个池子
6. rdo中某些服务的conf文件红帽有一些修改，如果大家享用官方原版可以在launchpad下载源码包自行生成（这是说给强迫症用户的）
7. dvr模式下每个l3节点所绑定网卡都需要有外网ip

架构图

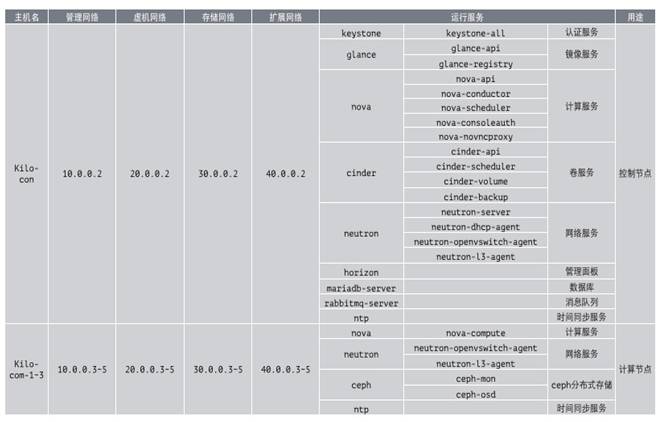

架构部署

服务器系统安装
1. CentOS 7.1 x64使用最小化安装方式
2. 设置主机名，关闭selinux基础工作不在文档出现

全局工作

导入软件源

1. 导入软件源
rpm -ivh https://dl.fedoraproject.org/pub/epel/epel-release-latest-7.noarch.rpm
rpm -ivh https://repos.fedorapeople.org/repos/openstack/openstack-kilo/rdo-release-kilo-1.noarch.rpm
rpm --import 'https://ceph.com/git/?p=ceph.git;a=blob_plain;f=keys/release.asc'

2. 新建/etc/yum.repos.d/ceph.repo文件添加如下内容
[ceph]
name=Ceph packages for $basearch
baseurl=http://ceph.com/rpm-hammer/el7/$basearch
enabled=1
priority=2
gpgcheck=1
type=rpm-md
gpgkey=https://ceph.com/git/?p=ceph.git;a=blob_plain;f=keys/release.asc

[ceph-noarch]
name=Ceph noarch packages
baseurl=http://ceph.com/rpm-hammer/el7/noarch
enabled=1
priority=2
gpgcheck=1
type=rpm-md
gpgkey=https://ceph.com/git/?p=ceph.git;a=blob_plain;f=keys/release.asc

Iptables服务安装

1. 安装Iptables
yum install -y iptables-services

2. 启动并设置开机自启动
systemctl stop firewalld
systemctl disable firewalld
systemctl start iptables
systemctl enable iptables
NTP服务安装
1. 安装NTP服务
yum install -y ntp

2. 启动并设置开机自启动
systemctl start ntpd
systemctl enable ntpd

Ceph安装

第一个监视器节点安装
1. 安装Ceph
yum install -y ceph

2. 生成集群uuid
uuidgen

3. 新建/etc/ceph/ceph.conf文件添加如下内容
fsid = 第二步生成的值
mon initial members = Kilo-com-1,
mon host = 20.0.0.3,

4. 建立拥有操作监视器权限的凭证
ceph-authtool --create-keyring /etc/ceph/ceph.mon.keyring --gen-key -n mon. --cap mon 'allow *'

5. 建立一个名称为client.admin的管理员凭证
ceph-authtool --create-keyring /etc/ceph/ceph.client.admin.keyring --gen-key -n client.admin --set-uid=0 --cap mon 'allow *' --cap osd 'allow *' --cap mds 'allow'

6. 将管理员凭证添加到监视器权限凭证内
ceph-authtool /etc/ceph/ceph.mon.keyring --import-keyring /etc/ceph/ceph.client.admin.keyring

7. 建立监视器节点对应关系地图
monmaptool --create --add Kilo-com-1 20.0.0.3 --fsid 第二步生成的值也是 /tmp/monmap

8. 建立监视器服务数据存放目录
mkdir /var/lib/ceph/mon/ceph-Kilo-com-1

9. 初始化监视器数据目录
ceph-mon --mkfs -i Kilo-com-1 --monmap /tmp/monmap --keyring /etc/ceph/ceph.mon.keyring

10. 编辑/etc/ceph/ceph.conf文件添加如下内容
public network = 20.0.0.0/24
cluster network = 30.0.0.0/24
auth cluster required = cephx
auth service required = cephx
auth client required = cephx
filestore xattr use omap = true
osd pool default pg num = 256
osd pool default pgp num = 256

11. 添加部署完毕标志文件及服务启动标志文件
touch /var/lib/ceph/mon/ceph-Kilo-com-1/done
touch /var/lib/ceph/mon/ceph-Kilo-com-1/sysvinit

12. 启动监视器服务
/etc/init.d/ceph start mon

13. 查看状态

属于正常状态

14. 添加防火墙规则允许其他节点连接
iptables -I INPUT 2 -s 20.0.0.0/24 -p tcp -m tcp --dport 6789 -j ACCEPT
iptables-save > /etc/sysconfig/iptables

其余监视器节点安装
1. 安装Ceph
yum install -y ceph

2. 从第一监控器节点靠谱配置文件和凭证
scp /etc/ceph/ceph.client.admin.keyring /etc/ceph/ceph.mon.keyring /etc/ceph/ceph.conf 10.0.0.4:/etc/ceph/

3. 获取监视器节点对应关系地图
ceph mon getmap -o /tmp/monmap

4. 建立监视器服务数据存放目录
mkdir /var/lib/ceph/mon/ceph-Kilo-com-2

5. 初始化监视器数据目录
ceph-mon --mkfs -i Kilo-com-2 --monmap /tmp/monmap --keyring /etc/ceph/ceph.mon.keyring

6. 编辑/etc/ceph/ceph.conf文件添加如下内容
mon initial members = 追加当前节点主机名,并以逗号结尾
mon host = 追加当前节点虚机网络，并以逗号结尾

7. 添加部署完毕标志文件及服务启动标志文件
touch /var/lib/ceph/mon/ceph-Kilo-com-2/done
touch /var/lib/ceph/mon/ceph-Kilo-com-2/sysvinit

8. 启动Ceph mon节点服务
/etc/init.d/ceph start mon

9. 添加防火墙规则允许其他节点连接
iptables -I INPUT 2 -s 20.0.0.0/24 -p tcp -m tcp --dport 6789 -j ACCEPT
iptables-save > /etc/sysconfig/iptables

10. 添加当前监视器到监视器集群
ceph mon add Kilo-com-2 20.0.0.4:6789

11. 将/etc/ceph/ceph.conf覆盖到其他节点的ceph目录并重启服务

部署OSD

1. 申请OSD号，计划当前节点有几个OSD就执行几次，输出结果后续使用，我这里每个节点三个OSD,我需要执行三次
ceph osd tree

2. 通过OSD号创建OSD数据目录
mkdir /var/lib/ceph/osd/ceph-0
mkdir /var/lib/ceph/osd/ceph-1
mkdir /var/lib/ceph/osd/ceph-2

3. 格式化OSD使用磁盘为xfs文件系统
mkfs.xfs /dev/sdb
mkfs.xfs /dev/sdc
mkfs.xfs /dev/sdd

4. 编辑/etc/fstab添加如下内容
/dev/sdb /var/lib/ceph/osd/ceph-0 xfs defaults 0 0
/dev/sdb /var/lib/ceph/osd/ceph-0 xfs remount,user_xattr 0 0
/dev/sdc /var/lib/ceph/osd/ceph-1 xfs defaults 0 0
/dev/sdc /var/lib/ceph/osd/ceph-1 xfs remount,user_xattr 0 0
/dev/sdd /var/lib/ceph/osd/ceph-2 xfs defaults 0 0
/dev/sdd /var/lib/ceph/osd/ceph-2 xfs remount,user_xattr 0 0

5. 挂载磁盘
mount /dev/sdb
mount /dev/sdc
mount /dev/sdd

6. 初始化OSD数据目录
ceph-osd -i 0 --mkfs --mkjournal --mkkey
ceph-osd -i 1 --mkfs --mkjournal --mkkey
ceph-osd -i 2 --mkfs --mkjournal --mkkey

7. 注册OSD凭证
ceph auth add osd.0 osd 'allow *' mon 'allow profile osd' -i /var/lib/ceph/osd/ceph-0/keyring
ceph auth add osd.1 osd 'allow *' mon 'allow profile osd' -i /var/lib/ceph/osd/ceph-1/keyring
ceph auth add osd.2 osd 'allow *' mon 'allow profile osd' -i /var/lib/ceph/osd/ceph-2/keyring

8. 添加OSD到CRUSH关系图
ceph osd crush add-bucket Kilo-com-1 host

9. 将节点移动到default树下
ceph osd crush move Kilo-com-1 root=default

10. 将OSD添加到Kilo-com-1下
ceph osd crush add osd.0 1.0 host=Kilo-com-1
ceph osd crush add osd.1 1.0 host=Kilo-com-1
ceph osd crush add osd.2 1.0 host=Kilo-com-1

11. 添加服务启动标志文件
touch /var/lib/ceph/osd/ceph-0/sysvinit
touch /var/lib/ceph/osd/ceph-1/sysvinit
touch /var/lib/ceph/osd/ceph-2/sysvinit

12. 添加防火墙规则
iptables -I INPUT 2 -s 20.0.0.0/24 -p tcp -m multiport --dports 6800:6900 -j ACCEPT
iptables -I INPUT 2 -s 30.0.0.0/24 -p tcp -m multiport --dports 6800:6900 -j ACCEPT
iptables-save > /etc/sysconfig/iptables

13. 启动当前节点OSD
/etc/init.d/ceph start osd

14. 查看当前OSD树状态

15. 查看ceph状态

会看到健康状态是HEALTH_WARN，原因是PGs过少,我们来添加

16. 增加PG和PGP数量
ceph osd pool set rbd pg_num 256
ceph osd pool set rbd pgp_num 256
注：如果在执行第二条命令时报Error EBUSY: currently creating pgs, wait，说明第一条命令还没处理完

17. 再次查看ceph状态

与Openstack结合

1. 建立存储池
ceph osd pool create storages 256

2. 建立一个名称为client.storages的凭证，对storages池有操作权限
ceph auth get-or-create client.storages mon 'allow rx' osd 'allow class-read object_prefix rbd_children, allow rwx pool=storages'

OpenStack控制节点安装

Ceph配置

1. 安装ceph-common
yum install -y ceph-common

2. 拷贝配置文件和管理员凭证到本机
scp /etc/ceph/ceph.client.admin.keyring /etc/ceph/ceph.conf 10.0.0.2:/etc/ceph/

3. 导出client.storages凭证
ceph auth get-or-create client.storages >> /etc/ceph/ceph.client.storages.keyring

4. 安装libvirt
yum install -y libvirt

5. 编辑/etc/libvirt/libvirtd.conf文件添加或修改如下行
listen_tls = 0
listen_tcp = 1
listen_addr = "0.0.0.0"
auth_tcp = "none"

6. 编辑/etc/sysconfig/libvirtd文件添加或修改如下行
LIBVIRTD_ARGS="--listen"

7. 启动并设置开机自启动
systemctl start libvirtd
systemctl enable libvirtd

8. 添加防火墙规则
iptables -I INPUT 2 -s 10.0.0.0/24 -p tcp -m tcp --dport 16509 -j ACCEPT
iptables-save > /etc/sysconfig/iptables

9. 生成libvirt secret使用uuid
uuidgen

10. 新建ceph-storages-secrets.xml文件添加如下内容
<secret ephemeral='no' private='no'>
<uuid>第九步生成值</uuid>
<usage type='ceph'>
<name>client.storages secret</name>
</usage>
</secret>

11. 设置libvirt secret值
virsh secret-set-value --secret第九步生成值 --base64 $(ceph auth get-key client.storages)
Mysql服务安装
1. 安装MYSQL服务
yum install -y mariadb-server

2. 编辑/etc/my.cnf文件的[mysqld]下添加如下内容
collation-server = utf8_general_ci
init-connect = 'SET NAMES utf8'
character-set-server = utf8
skip-name-resolve
skip-host-cache

3. 启动并设置开机自启动
systemctl start mariadb
systemctl enable mariadb

4. 初始化mysql设置root密码为openstack
mysql_secure_installation #此命令为交互命令，过程自行解决

5. 添加防火墙规则
iptables -I INPUT 2 -s 10.0.0.0/24 -p tcp -m tcp --dport 3306 -j ACCEPT
iptables-save > /etc/sysconfig/iptables

Rabbitmq服务安装

1. 安装RABBITMQ服务
yum -y install rabbitmq-server

2. 启动并设置开机自启动
systemctl start rabbitmq-server
systemctl enable rabbitmq-server

3. 更改RABBITMQ消息队列服务guest用户默认密码为openstack
rabbitmqctl change_password guest openstack

4. 添加防火墙规则
iptables -I INPUT 2 -s 10.0.0.0/24 -p tcp -m tcp --dport 5672 -j ACCEPT
iptables-save > /etc/sysconfig/iptables

Keystone服务安装

1. 安装Keystone

yum install -y openstack-keystone

2. 生成管理员token

openssl rand -hex 10

3. 建立数据库及数据库用户

mysql -uroot -popenstack -e 'create database keystone'

mysql -uroot -popenstack -e 'grant all on keystone.* to"keystone"@"%" identified by "keystone"'

4. 编辑/etc/keystone/keystone.conf文件添加或修改如下行

[DEFAULT]

admin_token = 第二步生成的值

log_dir = /var/log/keystone

use_stderr = false

[database]

connection = mysql://keystone:keystone@10.0.0.2/keystone

use_db_reconnect = true

[oslo_messaging_rabbit]

rabbit_host = 10.0.0.2

rabbit_password = openstack

5. 初始化数据库

su -s /bin/sh -c 'keystone-manage db_sync' keystone

6. 启动并设置开机自启动

systemctl start openstack-keystone

systemctl enable openstack-keystone

7. 添加防火墙规则

iptables -I INPUT 2 -s 10.0.0.0/24 -ptcp -m tcp --dport 5000 -j ACCEPT

iptables -I INPUT 2 -s 10.0.0.0/24 -ptcp -m tcp --dport 35357 -j ACCEPT

iptables-save > /etc/sysconfig/iptables

8. 建立tenant，user,role,service,endpoint

export OS_SERVICE_TOKEN=第二步生成的值

export OS_SERVICE_ENDPOINT=http://10.0.0.2:35357/v2.0

keystone tenant-create --name admin --description "AdminTenant"

keystone user-create --name admin --pass admin --email admin@example.com

keystone role-create --name admin

keystone user-role-add --tenant admin --user admin --role admin

keystone role-create --name _member_

keystone user-role-add --tenant admin --user admin --role _member_

keystone tenant-create --name service --description "ServiceTenant"

keystone service-create --name keystone --type identity --description"OpenStack Identity Service"

keystone endpoint-create --service-id $(keystone service-list | awk '/identity / {print $2}') --publicurl http://10.0.0.2:5000/v2.0 --internalurlhttp://10.0.0.2:5000/v2.0 --adminurlhttp://10.0.0.2:35357/v2.0 --region regionOne

9. 新建/root/admin-openrc文件添加如下行，作为以后新建公用镜像，网络使用的认证凭证

export OS_TENANT_NAME=admin

export OS_USERNAME=admin

export OS_PASSWORD=admin

export OS_AUTH_URL=http://10.0.0.2:35357/v2.0

Glance服务安装



1. 安装Glance

yum install -y openstack-glance

2. 建立user,role,service,endpoint

export OS_SERVICE_TOKEN=安装Keystone时第二步生成的值

exportOS_SERVICE_ENDPOINT=http://10.0.0.2:35357/v2.0

keystone user-create --name glance--pass glance

keystone user-role-add --user glance--tenant service --role admin

keystone service-create --name glance--type image --description "OpenStack Image Service"

keystone endpoint-create --service-id$(keystone service-list | awk '/ image / {print $2}') --publicurlhttp://10.0.0.2:9292 --internalurl http://10.0.0.2:9292 --adminurlhttp://10.0.0.2:9292 --region regionOne

3. 建立数据库及数据库用户

mysql -uroot -popenstack -e 'createdatabase glance'

mysql -uroot -popenstack -e 'grant allon glance.* to "glance"@"%" identified by"glance"'

4. 编辑/etc/glance/glance-api.conf文件添加或修改如下行

[DEFAULT]

use_stderr = false

show_image_direct_url = true

rabbit_host = 10.0.0.2

rabbit_password = openstack

[database]

connection = mysql://glance:glance@10.0.0.2/glance

use_db_reconnect = true

[keystone_authtoken]

auth_uri = http://10.0.0.2:5000

identity_uri = http://10.0.0.2:35357

admin_tenant_name = service

admin_user = glance

admin_password = glance

[paste_deploy]

flavor = keystone

[glance_store]

stores = glance.store.rbd.Store,

default_store = rbd

rbd_store_user = storages

rbd_store_pool = storages

5. 编辑/etc/glance/glance-registry.conf文件添加或修改如下行

[DEFAULT]

use_stderr = false

rabbit_host = 10.0.0.2

rabbit_password = openstack

[database]

connection = mysql://glance:glance@10.0.0.2/glance

use_db_reconnect = true

[keystone_authtoken]

auth_uri = http://10.0.0.2:5000

identity_uri = http://10.0.0.2:35357

admin_tenant_name = service

admin_user = glance

admin_password = glance

[paste_deploy]

flavor = keystone

6. 初始化数据库

su -s /bin/sh -c 'glance-manage db_sync' glance

7. 启动并设置开机自启动

systemctl start openstack-glance-api

systemctl startopenstack-glance-registry

systemctl enable openstack-glance-api

systemctl enableopenstack-glance-registry

8. 添加防火墙规则

iptables -I INPUT 2 -s 10.0.0.0/24 -ptcp -m tcp --dport 9191 -j ACCEPT

iptables -I INPUT 2 -s 10.0.0.0/24 -ptcp -m tcp --dport 9292 -j ACCEPT

iptables-save > /etc/sysconfig/iptables

Neutron服务安装



1. 安装Neutron

yum install -y openstack-neutron openstack-neutron-ml2openstack-neutron-openvswitch

2. 建立user,role,service,endpoint

keystone user-create --name neutron--pass neutron

keystone user-role-add --user neutron--tenant service --role admin

keystone service-create --name neutron--type network --description "OpenStack Network Service"

keystone endpoint-create --service-id$(keystone service-list | awk '/ network / {print $2}') --publicurlhttp://10.0.0.2:9696 --adminurl http://10.0.0.2:9696 --internalurl http://10.0.0.2:9696--region regionOne

3. 建立数据库及数据库用户

mysql -uroot -popenstack -e 'createdatabase neutron'

mysql -uroot -popenstack -e 'grant allon neutron.* to "neutron"@"%" identified by"neutron"'

4. 编辑/etc/neutron/neutron.conf文件添加或修改如下行

[DEFAULT]

router_distributed = true

use_stderr = false

log_dir = /var/log/neutron

core_plugin = ml2

service_plugins = router

auth_strategy = keystone

host = Kilo-con

allow_overlapping_ips = true

notify_nova_on_port_status_changes =true

notify_nova_on_port_data_changes = true

nova_url = http://10.0.0.2:8774/v2

nova_region_name = regionOne

nova_admin_username = nova

nova_admin_tenant_name = service

nova_admin_password = nova

nova_admin_auth_url = http://10.0.0.2:35357/v2.0

rabbit_host = 10.0.0.2

rabbit_password = openstack

[agent]

root_helper = sudo neutron-rootwrap/etc/neutron/rootwrap.conf

[keystone_authtoken]

auth_uri = http://10.0.0.2:5000

identity_uri = http://10.0.0.2:35357

admin_tenant_name = service

admin_user = neutron

admin_password = neutron

[database]

connection =mysql://neutron:neutron@10.0.0.2/neutron

use_db_reconnect = true

[oslo_messaging_rabbit]

rabbit_host = 10.0.0.2

rabbit_password = openstack

5. 编辑/etc/neutron/dhcp_agent.ini文件添加或修改如下行

[DEFAULT]

interface_driver =neutron.agent.linux.interface.OVSInterfaceDriver

dnsmasq_config_file =/etc/neutron/neutron-dnsmasq.conf

6. 新建/etc/neutron/neutron-dnsmasq.conf添加如下行

dhcp-option-force=26,1450

log-facility =/var/log/neutron/dnsmasq.log

7. 编辑/etc/neutron/l3_agent.ini文件添加或修改如下行

[DEFAULT]

interface_driver =neutron.agent.linux.interface.OVSInterfaceDriver

handle_internal_only_routers = false

enable_metadata_proxy = false

agent_mode = dvr_snat

8. 编辑/etc/neutron/plugins/ml2/ml2_conf.ini文件添加或修改如下行

[ml2]

type_drivers = flat,vxlan

tenant_network_types = vxlan

mechanism_drivers = openvswitch,l2population

[ml2_type_vxlan]

vni_ranges = 1000:5000

9. 编辑/etc/neutron/plugins/openvswitch/ovs_neutron_plugin.ini文件添加或修改如下行

[ovs]

local_ip = 20.0.0.2

bridge_mappings = external:br-ex

[agent]

tunnel_types = vxlan

vxlan_udp_port = 4789

l2_population = true

arp_responder = true

enable_distributed_routing = true

[securitygroup]

firewall_driver = neutron.agent.linux.iptables_firewall.OVSHybridIptablesFirewallDriver

10.建立ml2插件配置文件软链

ln -sv /etc/neutron/plugins/ml2/ml2_conf.ini /etc/neutron/plugin.ini

11.编辑/etc/sysctl.conf文件添加或修改如下行

net.ipv4.ip_forward = 1

net.ipv4.conf.all.rp_filter = 0

net.ipv4.conf.default.rp_filter = 0

12.重加载内核参数

sysctl -p

13.初始化数据库

su -s /bin/sh -c "neutron-db-manage upgrade kilo" neutron

14.启动并设置开机自启动openvswitch

systemctl start openvswitch

systemctl enable openvswitch

15.建立openvswitch端口

ovs-vsctl add-br br-int

ovs-vsctl add-br br-ex

16.像br-ex添加网卡

ovs-vsctl add-port br-ex eth3

17.启动并设置开机自启动neutron服务

systemctl start neutron-server

systemctl start neutron-dhcp-agent

systemctl startneutron-openvswitch-agent

systemctl start neutron-l3-agent

systemctl start neutron-ovs-cleanup

systemctl start neutron-netns-cleanup

systemctl enable neutron-server

systemctl enable neutron-dhcp-agent

systemctl enableneutron-openvswitch-agent

systemctl enable neutron-l3-agent

systemctl enable neutron-ovs-cleanup

systemctl enable neutron-netns-cleanup

18.添加防火墙规则

iptables -I INPUT 2 -s 10.0.0.0/24 -ptcp -m tcp --dport 9696 -j ACCEPT

iptables-save > /etc/sysconfig/iptables

19.建立内网，外网，路由及绑定子网和接口到路由器

source /root/admin-openrc

neutron net-create --shared--provider:network_type vxlan internal-network

neutron subnet-create internal-network100.100.100.0/24 --name internal-network-subnet --gateway 100.100.100.1--allocation-pool start=100.100.100.10,end=100.100.100.200 --enable-dhcp--ip-version 4 --dns-nameserver 202.106.0.20

neutronnet-create ext-net --shared --router:external --provider:network_type flat--provider:physical_network external

neutronsubnet-create ext-net 200.200.200.0/24 --name ext-network-subnet --gateway200.200.200.1 --allocation-pool start=200.200.200.10,end=200.200.200.200--disable-dhcp --ip-version 4 --dns-nameserver 202.106.0.20

neutronrouter-create router

neutronrouter-interface-add router internal-network-subnet

neutronrouter-gateway-set router ext-net
