SpringCloud学习笔记（三）：Rest微服务构建案例工程模块

需要具备的知识

1 springmvc+mybatis+mysql

2 Consumer消费者（Client）通过REST调用Provider提供者（Server）提供的服务

3 Maven的分包分模块：project下带三个子模块，microservicecloud-api：封装的整体entity/接口/公共配置等，microservicecloud-provider-dept-8001：微服务落地的服务提供者，microservicecloud-consumer-dept-80：微服务调用的客户端使用

构建

MicroServiceCloud父工程（Project）下初次带着3个子模块（Module）：

microservicecloud-api：封装的整体entity/接口/公共配置等

microservicecloud-provider-dept-8001：微服务落地的服务提供者

microservicecloud-consumer-dept-80：微服务调用的客户端使用

前缀需要相同，因为约定大于配置

pom.xml：

spring-cloud-dependencies----------Dalston.SR1

spring-cloud-dependencies----------1.5.9.RELEASE

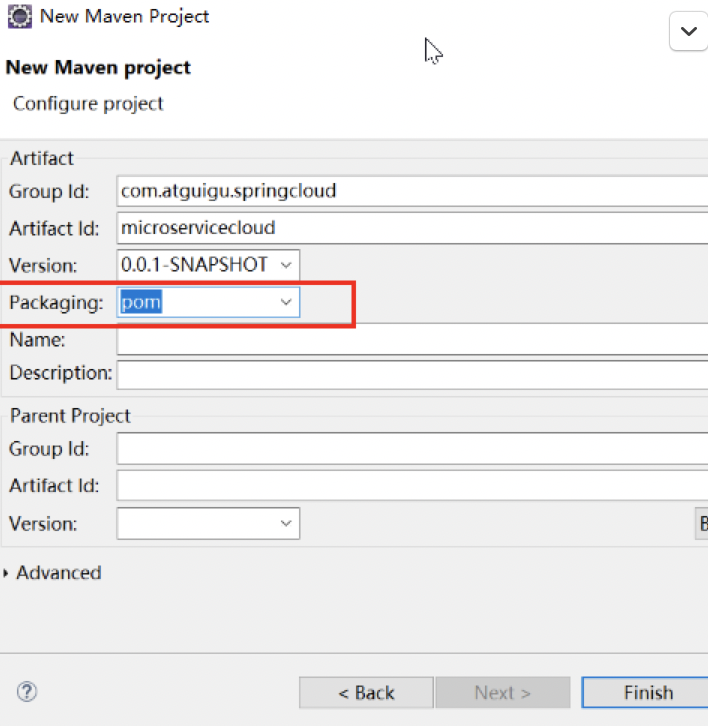

新建父工程microservicecloud

eclipse---->new---->Maven Project -->名字：microservicecloud



packaging必须是pom的

主要是定义POM文件，将后续各个子模块公用的jar包等统一提出来，类似一个抽象父类

pom.xml

< project   xmlns = "http://maven.apache.org/POM/4.0.0"   xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation = "http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd" >
   < modelVersion > 4.0.0 </ modelVersion >

   < groupId > com.atguigu.springcloud </ groupId >
   < artifactId > microservicecloud </ artifactId >
   < version > 0.0.1-SNAPSHOT </ version >
   < packaging > pom </ packaging >

   < properties >
    < project.build.sourceEncoding > UTF-8 </ project.build.sourceEncoding >
    < maven.compiler.source > 1.8 </ maven.compiler.source >
    < maven.compiler.target > 1.8 </ maven.compiler.target >
    < junit.version > 4.12 </ junit.version >
    < log4j.version > 1.2.17 </ log4j.version >
    < lombok.version > 1.16.18 </ lombok.version >
   </ properties >

   < dependencyManagement >
    < dependencies >
      < dependency >
        < groupId > org.springframework.cloud </ groupId >
        < artifactId > spring-cloud-dependencies </ artifactId >
        < version > Dalston.SR1 </ version >
        < type > pom </ type >
        < scope > import </ scope >
      </ dependency >
      < dependency >
        < groupId > org.springframework.boot </ groupId >
        < artifactId > spring-boot-dependencies </ artifactId >
        < version > 1.5.9.RELEASE </ version >
        < type > pom </ type >
        < scope > import </ scope >
      </ dependency >
      < dependency >
        < groupId > mysql </ groupId >
        < artifactId > mysql -connector-java </ artifactId >
        < version > 5.0.4 </ version >
      </ dependency >
      < dependency >
        < groupId > com.alibaba </ groupId >
        < artifactId > druid </ artifactId >
        < version > 1.0.31 </ version >
      </ dependency >
      < dependency >
        < groupId > org.mybatis.spring.boot </ groupId >
        < artifactId > mybatis -spring-boot-starter </ artifactId >
        < version > 1.3.0 </ version >
      </ dependency >
      < dependency >
        < groupId > ch.qos.logback </ groupId >
        < artifactId > logback -core </ artifactId >
        < version > 1.2.3 </ version >
      </ dependency >
      < dependency >
        < groupId > junit </ groupId >
        < artifactId > junit </ artifactId >
        < version > ${junit.version} </ version >
        < scope > test </ scope >
      </ dependency >
      < dependency >
        < groupId > log4j </ groupId >
        < artifactId > log4j </ artifactId >
        < version > ${log4j.version} </ version >
      </ dependency >
    </ dependencies >
   </ dependencyManagement >
</ project >

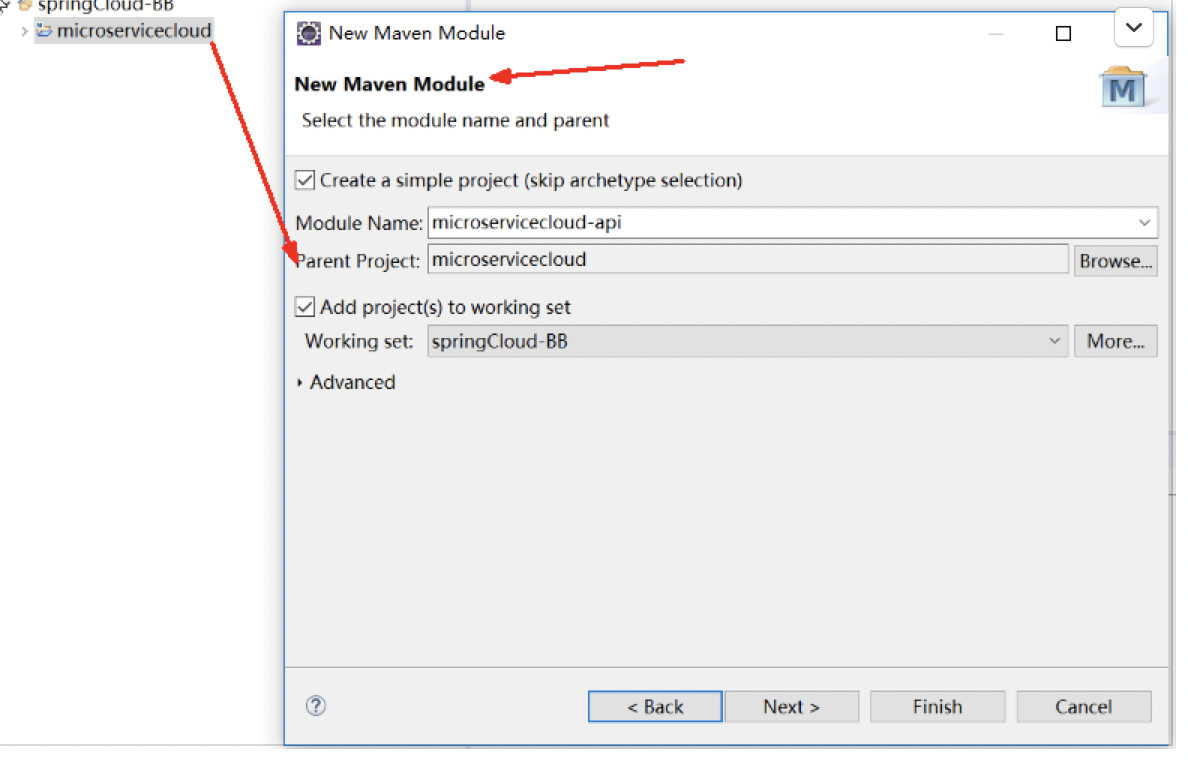

新建microservicecloud-api

在刚才父工程右键新建–>其他–>Maven Moudle -->名字：microservicecloud-api–>packaging jar



建完之后发现在父工程的pom.xml中最后多了

<moudles>
	<moudle>microservicecloud-api</moudle>
</moudles>

修改子模块microservicecloud-api的api

< project   xmlns = "http://maven.apache.org/POM/4.0.0"   xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation = "http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd" >
   < modelVersion > 4.0.0 </ modelVersion >

   < parent > <!-- 子类里面显示声明才能有明确的继承表现，无意外就是父类的默认版本否则自己定义 -->
    < groupId > com.atguigu.springcloud </ groupId >
    < artifactId > microservicecloud </ artifactId >
    < version > 0.0.1-SNAPSHOT </ version >
   </ parent >

   < artifactId > microservicecloud - api </ artifactId > <!-- 当前Module我自己叫什么名字 -->

   < dependencies > <!-- 当前Module需要用到的jar包，按自己需求添加，如果父类已经包含了，可以不用写版本号 -->
    < dependency >
      < groupId > org.projectlombok </ groupId >
      < artifactId > lombok </ artifactId >
    </ dependency >
   </ dependencies >
</ project >

部门entity配合lombok使用

在 microservicecloud - api 这个moudle中新建packge com.xxx.entiy

在包下新建Dept.java

Dept.java

package  com.atguigu.springcloud.entities;

import  java.io.Serializable;

import  lombok.Data;
import  lombok.NoArgsConstructor;
import  lombok.experimental.Accessors;

@SuppressWarnings ( "serial" ) //当在可序列化的类上缺少 serialVersionUID 定义时的警告，这里是压制警告的作用。
@NoArgsConstructor //空参构造函数
@Data //get set方法
@Accessors (chain= true ) //链式风格访问，chain 若为true，则setter方法返回当前对象
public   class  Dept  implements  Serializable  //必须序列化
{
   private  Long   deptno ;    //主键
   private  String   dname ;    //部门名称
   private  String   db_source ; //来自那个数据库，因为微服务架构可以一个服务对应一个数据库，同一个信息被存储到不同数据库

   public  Dept(String  dname )
  {
    super ();
    this . dname  =  dname ;
  }
}

添加完上面lombok的注解，通过eclipse右边的outline可以进行查看定义的方法时候生成

mvn clean install后给其它模块引用，达到通用目的。

也即需要用到部门实体的话，不用每个工程都定义一份，直接引用本模块即可。

（mvn install 的作用是将生成的jar在本地仓库生成，其他的模块引用的时候不需要从远程仓库调用，直接从本地即可。）

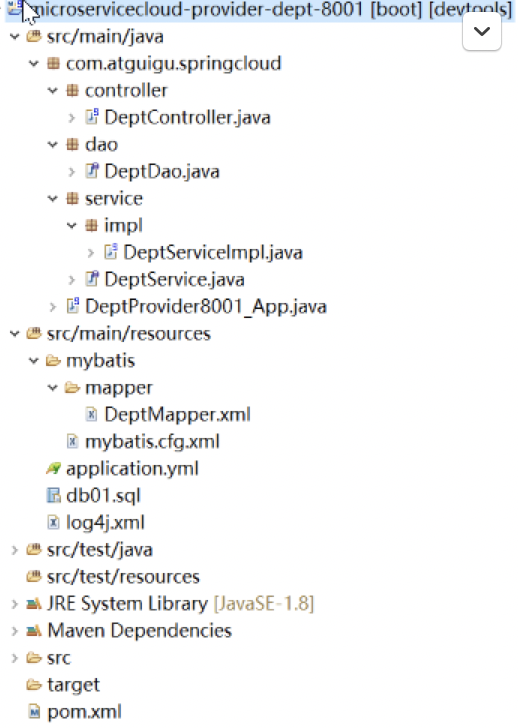

microservicecloud-provider-dept-8001 部门微服务提供者Module

约定>配置>编码

和新建microservicecloud-api一样的步骤，名字是microservicecloud-provider-dept-8001 。

请检查，父类的pom.xml中同样会自动增加一moudles

pom.xml

< project   xmlns = "http://maven.apache.org/POM/4.0.0"   xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation = "http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd" >
   < modelVersion > 4.0.0 </ modelVersion >

   < parent >
    < groupId > com.atguigu.springcloud </ groupId >
    < artifactId > microservicecloud </ artifactId >
    < version > 0.0.1-SNAPSHOT </ version >
   </ parent >

   < artifactId > microservicecloud -provider- dept -8001 </ artifactId >

   < dependencies >
    < dependency > <!-- 引入自己定义的 api 通用包，可以使用 Dept 部门Entity -->
      < groupId > com.atguigu.springcloud </ groupId >
      < artifactId > microservicecloud - api </ artifactId >
      < version > ${project.version} </ version > 动态的版本
    </ dependency >
    < dependency >
      < groupId > junit </ groupId >
      < artifactId > junit </ artifactId >
    </ dependency >
    < dependency >
      < groupId > mysql </ groupId >
      < artifactId > mysql -connector-java </ artifactId >
    </ dependency >
    < dependency >
      < groupId > com.alibaba </ groupId >
      < artifactId > druid </ artifactId >
    </ dependency >
    < dependency >
      < groupId > ch.qos.logback </ groupId >
      < artifactId > logback -core </ artifactId >
    </ dependency >
    < dependency >
      < groupId > org.mybatis.spring.boot </ groupId >
      < artifactId > mybatis -spring-boot-starter </ artifactId >
    </ dependency >
    < dependency >
      < groupId > org.springframework.boot </ groupId >
      < artifactId > spring-boot-starter- jetty </ artifactId >
    </ dependency >
    < dependency >
      < groupId > org.springframework.boot </ groupId >
      < artifactId > spring-boot-starter-web </ artifactId >
    </ dependency >
    < dependency >
      < groupId > org.springframework.boot </ groupId >
      < artifactId > spring-boot-starter-test </ artifactId >
    </ dependency >
    <!-- 修改后立即生效，热部署 -->
    < dependency >
      < groupId > org.springframework </ groupId >
      < artifactId > springloaded </ artifactId >
    </ dependency >
    < dependency >
      < groupId > org.springframework.boot </ groupId >
      < artifactId > spring-boot- devtools </ artifactId >
    </ dependency >
   </ dependencies >

</ project >

在ser/main/resources中添加application.yml文件

server:
   port:  8001

mybatis:
   config-location:  classpath:mybatis/mybatis.cfg.xml         # mybatis配置文件所在路径
   type-aliases-package:  com.atguigu.springcloud.entities     # 所有Entity别名类所在包
   mapper-locations:
  - classpath:mybatis/mapper/ ** / * .xml                        # mapper映射文件

spring:
    application:
     name:  microservicecloud-dept  //对外暴露的微服务的名字
    datasource:
     type:  com.alibaba.druid.pool.DruidDataSource             # 当前数据源操作类型
     driver-class-name:  org.gjt.mm.mysql.Driver               # mysql驱动包
     url:  jdbc:mysql://localhost:3306/cloudDB01               # 数据库名称
     username:  root
     password:  123456
     dbcp2:
       min-idle:  5                                            # 数据库连接池的最小维持连接数
       initial-size:  5                                        # 初始化连接数
       max-total:  5                                           # 最大连接数
       max-wait-millis:  200                                   # 等待连接获取的最大超时时间

工程src/main/resources目录下新建mybatis文件夹后新建mybatis.cfg.xml文件（其实没什么用）

<? xml   version = "1.0"   encoding = "UTF-8"   ?>
<! DOCTYPE   configuration
   PUBLIC   "-//mybatis.org//DTD Config 3.0//EN"
   "http://mybatis.org/dtd/mybatis-3-config.dtd" >

< configuration >

   < settings >
    < setting   name = "cacheEnabled"   value = "true" /> <!-- 二级缓存开启 -->
   </ settings >

</ configuration >

MySQL创建部门数据库脚本

DROP  DATABASE IF  EXISTS  cloudDB01;
CREATE  DATABASE cloudDB01  CHARACTER   SET  UTF8;
USE cloudDB01;
CREATE   TABLE  dept
(
  deptno BIGINT  NOT   NULL   PRIMARY   KEY  AUTO_INCREMENT,
  dname  VARCHAR (60),
  db_source    VARCHAR (60)
);

INSERT   INTO  dept(dname,db_source)  VALUES ( '开发部' ,DATABASE());
INSERT   INTO  dept(dname,db_source)  VALUES ( '人事部' ,DATABASE());
INSERT   INTO  dept(dname,db_source)  VALUES ( '财务部' ,DATABASE());
INSERT   INTO  dept(dname,db_source)  VALUES ( '市场部' ,DATABASE());
INSERT   INTO  dept(dname,db_source)  VALUES ( '运维部' ,DATABASE());

SELECT  *  FROM  dept;
//DATABASE()插入当前数据库的名字

新建com.xxx.dao,新建DeptDao.java

package  com.atguigu.springcloud.dao;

import  java.util.List;
import  org.apache.ibatis.annotations.Mapper;
import  com.atguigu.springcloud.entities.Dept;

@Mapper     //mybatis的自动配置里会扫描springboot的有效包路径
//下的带有@Mapper注解的接口，然后根据里面的mybatis注解生成mapper代理类。
//  Mapper定义的接口和xml文件（相当于实现类）是对应的
public   interface  DeptDao
{
   public   boolean  addDept(Dept  dept );
   public  Dept findById(Long  id );
   public  List<Dept> findAll();
}

工程src/main/resources/mybatis目录下新建mapper文件夹后再建DeptMapper.xml

<? xml   version = "1.0"   encoding = "UTF-8"   ?>
<! DOCTYPE   mapper   PUBLIC   "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd" >

< mapper   namespace = " com.atguigu.springcloud.dao.DeptDao " >

   < select   id = "findById"   resultType = "Dept"   parameterType = "Long" >
   select  deptno , dname ,db_source from  dept  where  deptno =#{ deptno };
   </ select >
   < select   id = "findAll"   resultType = "Dept" >
   select  deptno , dname ,db_source from  dept ;
   </ select >
   < insert   id = "addDept"   parameterType = "Dept" >
   INSERT INTO  dept ( dname ,db_source) VALUES(#{ dname }, DATABASE() );
   </ insert >

</ mapper >

新建com.xxx.service下新建DeptService

DeptService

package  com.atguigu.springcloud.service;

import  java.util.List;

import  com.atguigu.springcloud.entities.Dept;

public   interface  DeptService
{
   public   boolean  add(Dept  dept );
   public  Dept    get(Long  id );
   public  List<Dept> list();
}

新建com.xxx.service.impl下新建DeptServiceImpl

package  com.atguigu.springcloud.service.impl;

import  java.util.List;

import  org.springframework.beans.factory.annotation.Autowired;
import  org.springframework.stereotype.Service;

import  com.atguigu.springcloud.dao.DeptDao;
import  com.atguigu.springcloud.entities.Dept;
import  com.atguigu.springcloud.service.DeptService;

@Service
public   class  DeptServiceImpl  implements  DeptService
{
   @Autowired
   private  DeptDao  dao  ;

   @Override
   public   boolean  add(Dept  dept )
  {
    return   dao .addDept( dept );
  }

   @Override
   public  Dept get(Long  id )
  {
    return   dao .findById( id );
  }

   @Override
   public  List<Dept> list()
  {
    return   dao .findAll();
  }

}

新建com.xxx.controller包下的DeptController.java

package  com.atguigu.springcloud.controller;

import  java.util.List;

import  org.springframework.beans.factory.annotation.Autowired;
import  org.springframework.web.bind.annotation.PathVariable;
import  org.springframework.web.bind.annotation.RequestBody;
import  org.springframework.web.bind.annotation.RequestMapping;
import  org.springframework.web.bind.annotation.RequestMethod;
import  org.springframework.web.bind.annotation.RestController;

import  com.atguigu.springcloud.entities.Dept;
import  com.atguigu.springcloud.service.DeptService;

@RestController
public   class  DeptController
{
   @Autowired
   private  DeptService  service ;

   @RequestMapping (value= "/dept/add" ,method=RequestMethod. POST )
   public   boolean  add( @RequestBody  Dept  dept )
  {
    return   service .add( dept );
  }

   @RequestMapping (value= "/dept/get/{id}" ,method=RequestMethod. GET )
   public  Dept get( @PathVariable ( "id" ) Long  id )
  {
    return   service .get( id );
  }

   @RequestMapping (value= "/dept/list" ,method=RequestMethod. GET )
   public  List<Dept> list()
  {
    return   service .list();
  }
}

在com.xxx包下创建DeptProvider8001_App主启动类

package  com.atguigu.springcloud;

import  org.springframework.boot.SpringApplication;
import  org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public   class  DeptProvider8001_App
{
   public   static   void  main(String[]  args )
  {
   SpringApplication. run (DeptProvider8001_App. class ,  args );
  }
}

启动----->test： http://localhost:8001/dept/get/2

工程目录

microservicecloud-consumer-dept-80 部门微服务消费者Module

和新建microservicecloud-api一样的步骤，名字是microservicecloud-consumer-dept-80

请检查，父类的pom.xml中同样会自动增加一moudles

pom.xml

< project   xmlns = "http://maven.apache.org/POM/4.0.0"   xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation = "http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd" >
   < modelVersion > 4.0.0 </ modelVersion >

   < parent >
    < groupId > com.atguigu.springcloud </ groupId >
    < artifactId > microservicecloud </ artifactId >
    < version > 0.0.1-SNAPSHOT </ version >
   </ parent >

   < artifactId > microservicecloud -consumer- dept -80 </ artifactId >
   < description > 部门微服务消费者 </ description >

   < dependencies >
    < dependency > <!-- 自己定义的 api  -->
      < groupId > com.atguigu.springcloud </ groupId >
      < artifactId > microservicecloud - api </ artifactId >
      < version > ${project.version} </ version >
    </ dependency >
    < dependency >
      < groupId > org.springframework.boot </ groupId >
      < artifactId > spring-boot-starter-web </ artifactId >
    </ dependency >
    <!-- 修改后立即生效，热部署 -->
    < dependency >
      < groupId > org.springframework </ groupId >
      < artifactId > springloaded </ artifactId >
    </ dependency >
    < dependency >
      < groupId > org.springframework.boot </ groupId >
      < artifactId > spring-boot- devtools </ artifactId >
    </ dependency >
   </ dependencies >
</ project >

application.yml

server:
   port:  80

com.atguigu.springcloud.cfgbeans包下ConfigBean的编写（类似spring里面的applicationContext.xml写入的注入Bean）

package  com.atguigu.springcloud.cfgbeans;

import  org.springframework.context.annotation.Bean;
import  org.springframework.context.annotation.Configuration;
import  org.springframework.web.client.RestTemplate;

@Configuration
 //这个注解相当于将spring中的aplication.xml替换到springboot中的实体类中了，
public   class  ConfigBean
{
     @Bean
     public  RestTemplate getRestTemplate()
    {
          return   new  RestTemplate();
    }
    //这里相当于原来的aplication.xml中的
   // <bean id = "userService" class="com.xxxxxxx.xxxx" >

//application.xml==configBean(@configuration)
}

com.atguigu.springcloud.controller包下新建DeptController_Consumer部门微服务消费者REST

package  com.atguigu.springcloud.controller;

import  java.util.List;

import  org.springframework.beans.factory.annotation.Autowired;
import  org.springframework.web.bind.annotation.PathVariable;
import  org.springframework.web.bind.annotation.RequestMapping;
import  org.springframework.web.bind.annotation.RestController;
import  org.springframework.web.client.RestTemplate;

import  com.atguigu.springcloud.entities.Dept;

@RestController
public   class  DeptController_Consumer
{
     private   static   final  String  REST_URL_PREFIX  =  "http://localhost:8001" ;

     @Autowired
     private  RestTemplate  restTemplate ;

     @RequestMapping (value= "/consumer/dept/add" )
     public   boolean  add(Dept  dept )
    {
    	//使用restTemplate访问restful接口非常的简单粗暴无脑。
		//(url, requestMap, ResponseBean.class)这三个参数分别代表
		//REST请求地址、请求参数、HTTP响应转换被转换成的对象类型。

		//这里的意思是通过consumer去访问provider的api接口，参数是dept，
		//并返回请求结果的布尔值。
          return   restTemplate .postForObject( REST_URL_PREFIX + "/dept/add" ,  dept , Boolean. class );
    }

     @RequestMapping (value= "/consumer/dept/get/{id}" )
     public  Dept get( @PathVariable ( "id" ) Long  id )
    {
          return   restTemplate .getForObject( REST_URL_PREFIX + "/dept/get/" + id , Dept. class );
    }

     @SuppressWarnings ( "unchecked" )
     @RequestMapping (value= "/consumer/dept/list" )
     public  List<Dept> list()
    {
          return   restTemplate .getForObject( REST_URL_PREFIX + "/dept/list" , List. class );
    }
}

什么是RestTemplate？？？？？？？？

RestTemplate提供了多种便捷访问远程Http服务的方法，

是一种简单便捷的访问restful服务模板类，是Spring提供的用于访问Rest服务的客户端模板工具集

官网地址

https://docs.spring.io/spring-framework/docs/4.3.7.RELEASE/javadoc-api/org/springframework/web/client/RestTemplate.html

使用

使用restTemplate访问restful接口非常的简单粗暴无脑。

(url, requestMap, ResponseBean.class)这三个参数分别代表

REST请求地址、请求参数、HTTP响应转换被转换成的对象类型。

DeptConsumer80_App主启动类

package  com.atguigu.springcloud;

import  org.springframework.boot.SpringApplication;
import  org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public   class  DeptConsumer80_App
{
   public   static   void  main(String[]  args )
  {
   SpringApplication. run (DeptConsumer80_App. class ,  args );
  }
}

test:

http://localhost/consumer/dept/get/2

http://localhost/consumer/dept/list

http://localhost/consumer/dept/add?dname=AI
