MyBatis 3源码解析(四)

四、MyBatis 查询实现

1. Employee empById = mapper.getEmpById(1);

• 首先会调用MapperProxy的invoke方法

  @Override
  public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
    if (Object.class.equals(method.getDeclaringClass())) {
      try {
        return method.invoke(this, args);
      } catch (Throwable t) {
        throw ExceptionUtil.unwrapThrowable(t);
      }
    }
    final MapperMethod mapperMethod = cachedMapperMethod(method);
    return mapperMethod.execute(sqlSession, args);
  }

• 实际上是调用的MapperMethod的execute(sqlSession, args)方法。该方法代码如下：

public Object execute(SqlSession sqlSession, Object[] args) {
    Object result;
    // 先判断command的type类型，是修改还是添加
    switch (command.getType()) {
      case INSERT: {
        Object param = method.convertArgsToSqlCommandParam(args);
        result = rowCountResult(sqlSession.insert(command.getName(), param));
        break;
      }
      case UPDATE: {
        // 解析成我们可以使用的参数。要么包装成map，要么返回。
        Object param = method.convertArgsToSqlCommandParam(args);
        // 查询单个
        result = rowCountResult(sqlSession.update(command.getName(), param));
        break;
      }else {
          Object param = method.convertArgsToSqlCommandParam(args);
          result = sqlSession.selectOne(command.getName(), param);
        }
....
    return result;
  }

• result = sqlSession.selectOne(command.getName(), param);。sqlSession的selectOne方法如下：

  @Override
  public <T> T selectOne(String statement, Object parameter) {
    // Popular vote was to return null on 0 results and throw exception on too many.
    List<T> list = this.<T>selectList(statement, parameter);
    if (list.size() == 1) {
      return list.get(0);
    } else if (list.size() > 1) {
      throw new TooManyResultsException("Expected one result (or null) to be returned by selectOne(), but found: " + list.size());
    } else {
      return null;
    }
  }

• 还是调用了DefaultSqlSession的selectList方法。

  @Override
  public <E> List<E> selectList(String statement, Object parameter, RowBounds rowBounds) {
    try {
      // 从全局配置中拿到 id；如：cn.guet.dao.EmployeeMapper.getEmpById
      MappedStatement ms = configuration.getMappedStatement(statement);
      return executor.query(ms, wrapCollection(parameter), rowBounds, Executor.NO_RESULT_HANDLER);
    } catch (Exception e) {
      throw ExceptionFactory.wrapException("Error querying database.  Cause: " + e, e);
    } finally {
      ErrorContext.instance().reset();
    }
  }

• 调用executor的query方法。

  @Override
  public <E> List<E> query(MappedStatement ms, Object parameterObject, RowBounds rowBounds, ResultHandler resultHandler) throws SQLException {
    // 获取绑定的SQL，如：select id,last_name lastName,email,gender from tb_employee where id = ?
    // BoundSql  存了贺SQL相关的详细信息，SQL和参数等等
    BoundSql boundSql = ms.getBoundSql(parameterObject);
    // 创建一个缓存，方法id+SQL语句+等等。。
    CacheKey key = createCacheKey(ms, parameterObject, rowBounds, boundSql);
    return query(ms, parameterObject, rowBounds, resultHandler, key, boundSql);
  }

• 调用query方法查询

@Override
  public <E> List<E> query(MappedStatement ms, Object parameterObject, RowBounds rowBounds, ResultHandler resultHandler, CacheKey key, BoundSql boundSql)
      throws SQLException {
    // 先从MappedStatement 中获取缓存
    Cache cache = ms.getCache();
    if (cache != null) {
      flushCacheIfRequired(ms);
      if (ms.isUseCache() && resultHandler == null) {
        ensureNoOutParams(ms, parameterObject, boundSql);
        @SuppressWarnings("unchecked")
        List<E> list = (List<E>) tcm.getObject(cache, key);
        if (list == null) {
          list = delegate.<E> query(ms, parameterObject, rowBounds, resultHandler, key, boundSql);
          tcm.putObject(cache, key, list); // issue #578 and #116
        }
        return list;
      }
    }
    return delegate.<E> query(ms, parameterObject, rowBounds, resultHandler, key, boundSql);
  }

• 调用query方法

  @SuppressWarnings("unchecked")
  @Override
  public <E> List<E> query(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, CacheKey key, BoundSql boundSql) throws SQLException {
    ErrorContext.instance().resource(ms.getResource()).activity("executing a query").object(ms.getId());
    if (closed) {
      throw new ExecutorException("Executor was closed.");
    }
    if (queryStack == 0 && ms.isFlushCacheRequired()) {
      clearLocalCache();
    }
    List<E> list;
    try {
      queryStack++;
       // 从一级缓存中获取
      list = resultHandler == null ? (List<E>) localCache.getObject(key) : null;
      if (list != null) {
        handleLocallyCachedOutputParameters(ms, key, parameter, boundSql);
      } else {
        //如果一级缓存中没有，则调用queryFromDatabase
        list = queryFromDatabase(ms, parameter, rowBounds, resultHandler, key, boundSql);
      }
    } finally {
      queryStack--;
    }
    if (queryStack == 0) {
      for (DeferredLoad deferredLoad : deferredLoads) {
        deferredLoad.load();
      }
      // issue #601
      deferredLoads.clear();
      if (configuration.getLocalCacheScope() == LocalCacheScope.STATEMENT) {
        // issue #482
        clearLocalCache();
      }
    }
    return list;
  }

• 进一步调用queryFromDatabase方法

  private <E> List<E> queryFromDatabase(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, CacheKey key, BoundSql boundSql) throws SQLException {
    List<E> list;
    // 先给本地缓存放一个key，
    localCache.putObject(key, EXECUTION_PLACEHOLDER);
    try {
       // 查出数据
      list = doQuery(ms, parameter, rowBounds, resultHandler, boundSql);
    } finally {
      localCache.removeObject(key);
    }
    // 将数据放到本地缓存中去
    localCache.putObject(key, list);
    if (ms.getStatementType() == StatementType.CALLABLE) {
      localOutputParameterCache.putObject(key, parameter);
    }
    return list;
  }

• 然后是调用了SimpleExecutor的doQuery方法

 @Override
  public <E> List<E> doQuery(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, BoundSql boundSql) throws SQLException {
    // 声明一个Statement
    Statement stmt = null;
    try {
       // 拿到当前的配置信息
      Configuration configuration = ms.getConfiguration();
      // 创建一个StatementHandler ；四大对象之一
      StatementHandler handler = configuration.newStatementHandler(wrapper, ms, parameter, rowBounds, resultHandler, boundSql);
      // 拿到原生的Statement
      stmt = prepareStatement(handler, ms.getStatementLog());
      return handler.<E>query(stmt, resultHandler);
    } finally {
      closeStatement(stmt);
    }
  }

• 接着就到了ParameterHandler中的setParameters(PreparedStatement ps) 方法：

  @Override
  public void setParameters(PreparedStatement ps) {
    ErrorContext.instance().activity("setting parameters").object(mappedStatement.getParameterMap().getId());
    List<ParameterMapping> parameterMappings = boundSql.getParameterMappings();
    if (parameterMappings != null) {
..........
  TypeHandler typeHandler = parameterMapping.getTypeHandler();
  JdbcType jdbcType = parameterMapping.getJdbcType();

  typeHandler.setParameter(ps, i + 1, value, jdbcType);

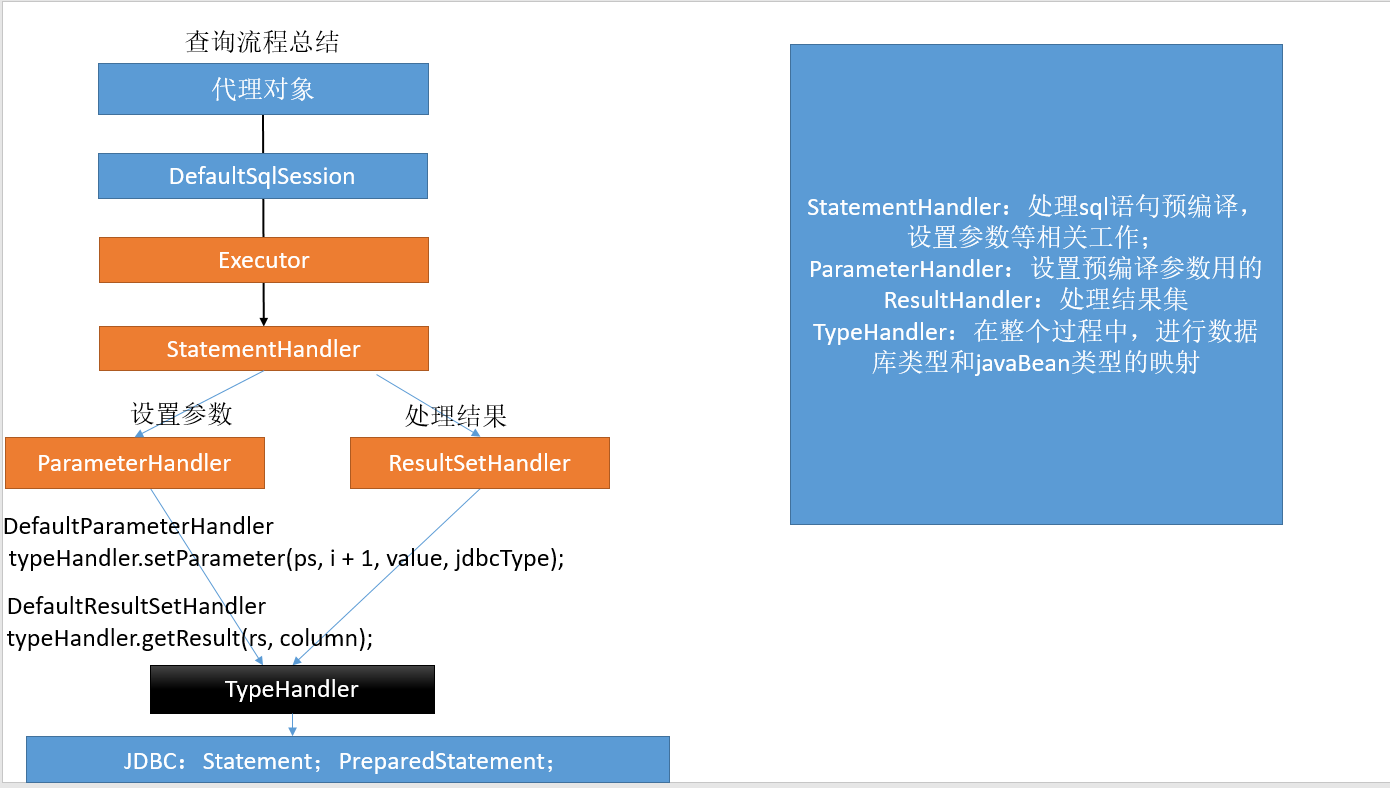

查询流程总结
