书接上回:

combo-charts:

<html>
<head>
<script type="text/javascript" src="https://www.google.com/jsapi"></script>
<script type="text/javascript">
google.load("visualization", "1", {packages:["corechart"]});
google.setOnLoadCallback(drawVisualization); function drawVisualization() {
// Some raw data (not necessarily accurate)
var data = google.visualization.arrayToDataTable([
['Month', 'Bolivia', 'Ecuador', 'Madagascar', 'Papua New Guinea', 'Rwanda', 'Average'],
['2004/05', 165, 938, 522, 998, 450, 614.6],
['2005/06', 135, 1120, 599, 1268, 288, 682],
['2006/07', 157, 1167, 587, 807, 397, 623],
['2007/08', 139, 1110, 615, 968, 215, 609.4],
['2008/09', 136, 691, 629, 1026, 366, 569.6]
]); var options = {
title : 'Monthly Coffee Production by Country',
vAxis: {title: 'Cups'},
hAxis: {title: 'Month'},
seriesType: 'bars',
series: {5: {type: 'line'}}
}; var chart = new google.visualization.ComboChart(document.getElementById('chart_div'));
chart.draw(data, options);
}
</script>
</head>
<body>
<div id="chart_div" style="width: 900px; height: 500px;"></div>
</body>
</html>

效果图:

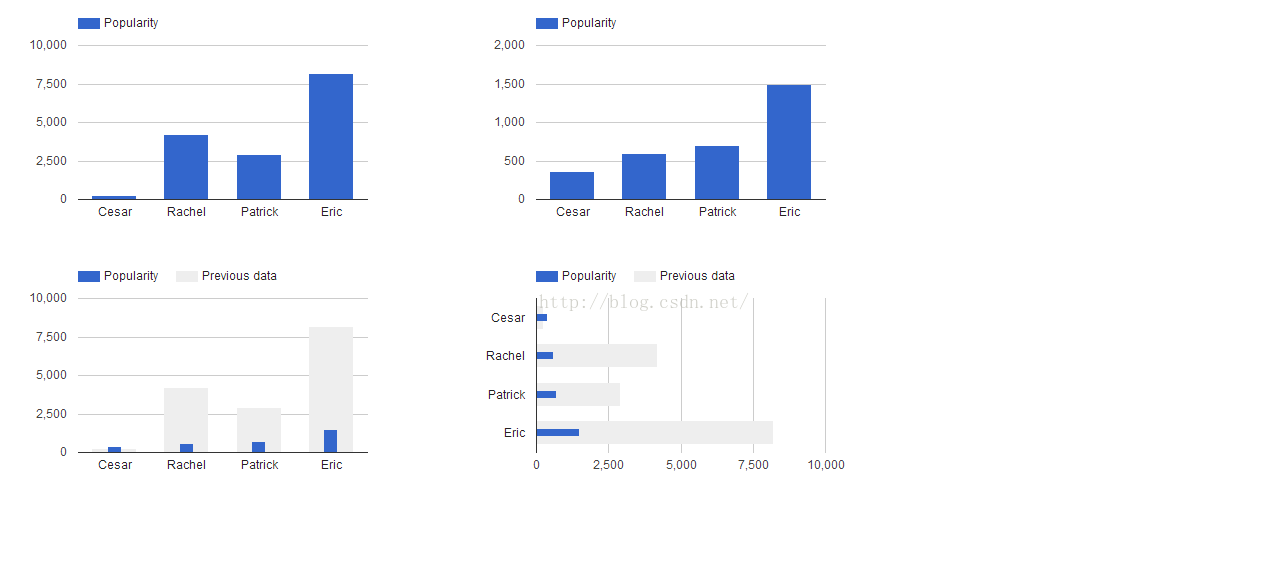

diff-charts:

<script type="text/javascript" src="https://www.google.com/jsapi"></script>
<script type="text/javascript">
google.load("visualization", '1.1', {packages:['corechart']});
google.setOnLoadCallback(drawChart);
function drawChart() {
var oldData = google.visualization.arrayToDataTable([
['Name', 'Popularity'],
['Cesar', 250],
['Rachel', 4200],
['Patrick', 2900],
['Eric', 8200]
]); var newData = google.visualization.arrayToDataTable([
['Name', 'Popularity'],
['Cesar', 370],
['Rachel', 600],
['Patrick', 700],
['Eric', 1500]
]); var colChartBefore = new google.visualization.ColumnChart(document.getElementById('colchart_before'));
var colChartAfter = new google.visualization.ColumnChart(document.getElementById('colchart_after'));
var colChartDiff = new google.visualization.ColumnChart(document.getElementById('colchart_diff'));
var barChartDiff = new google.visualization.BarChart(document.getElementById('barchart_diff')); var options = { legend: { position: 'top' } }; colChartBefore.draw(oldData, options);
colChartAfter.draw(newData, options); var diffData = colChartDiff.computeDiff(oldData, newData);
colChartDiff.draw(diffData, options);
barChartDiff.draw(diffData, options);
}
</script> <span id='colchart_before' style='width: 450px; height: 250px; display: inline-block'></span>
<span id='colchart_after' style='width: 450px; height: 250px; display: inline-block'></span>
<span id='colchart_diff' style='width: 450px; height: 250px; display: inline-block'></span>
<span id='barchart_diff' style='width: 450px; height: 250px; display: inline-block'></span>

效果图:

gantt-charts:

<html>
<head>
<script type="text/javascript" src="https://www.google.com/jsapi"></script>
<script type="text/javascript">
google.load("visualization", "1.1", {packages:["gantt"]});
google.setOnLoadCallback(drawChart); function daysToMilliseconds(days) {
return days * 24 * 60 * 60 * 1000;
} function drawChart() { var data = new google.visualization.DataTable();
data.addColumn('string', 'Task ID');
data.addColumn('string', 'Task Name');
data.addColumn('date', 'Start Date');
data.addColumn('date', 'End Date');
data.addColumn('number', 'Duration');
data.addColumn('number', 'Percent Complete');
data.addColumn('string', 'Dependencies'); data.addRows([
['Research', 'Find sources',
new Date(2015, 0, 1), new Date(2015, 0, 5), null, 100, null],
['Write', 'Write paper',
null, new Date(2015, 0, 9), daysToMilliseconds(3), 25, 'Research,Outline'],
['Cite', 'Create bibliography',
null, new Date(2015, 0, 7), daysToMilliseconds(1), 20, 'Research'],
['Complete', 'Hand in paper',
null, new Date(2015, 0, 10), daysToMilliseconds(1), 0, 'Cite,Write'],
['Outline', 'Outline paper',
null, new Date(2015, 0, 6), daysToMilliseconds(1), 100, 'Research']
]); var options = {
height: 275
}; var chart = new google.visualization.GanttChart(document.getElementById('chart_div')); chart.draw(data, options);
}
</script>
</head>
<body>
<div id="chart_div"></div>
</body>
</html>

效果图:

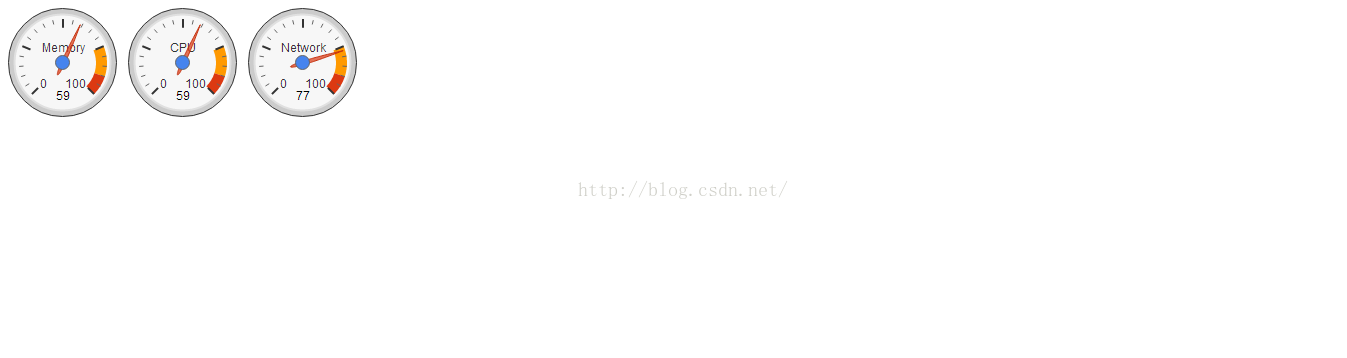

gauge-charts:

<html>
<head>
<script type="text/javascript" src="https://www.google.com/jsapi"></script>
<script type="text/javascript">
google.load("visualization", "1", {packages:["gauge"]});
google.setOnLoadCallback(drawChart);
function drawChart() { var data = google.visualization.arrayToDataTable([
['Label', 'Value'],
['Memory', 80],
['CPU', 55],
['Network', 68]
]); var options = {
width: 400, height: 120,
redFrom: 90, redTo: 100,
yellowFrom:75, yellowTo: 90,
minorTicks: 5
}; var chart = new google.visualization.Gauge(document.getElementById('chart_div')); chart.draw(data, options); setInterval(function() {
data.setValue(0, 1, 40 + Math.round(60 * Math.random()));
chart.draw(data, options);
}, 13000);
setInterval(function() {
data.setValue(1, 1, 40 + Math.round(60 * Math.random()));
chart.draw(data, options);
}, 5000);
setInterval(function() {
data.setValue(2, 1, 60 + Math.round(20 * Math.random()));
chart.draw(data, options);
}, 26000);
}
</script>
</head>
<body>
<div id="chart_div" style="width: 400px; height: 120px;"></div>
</body>
</html>

效果图:

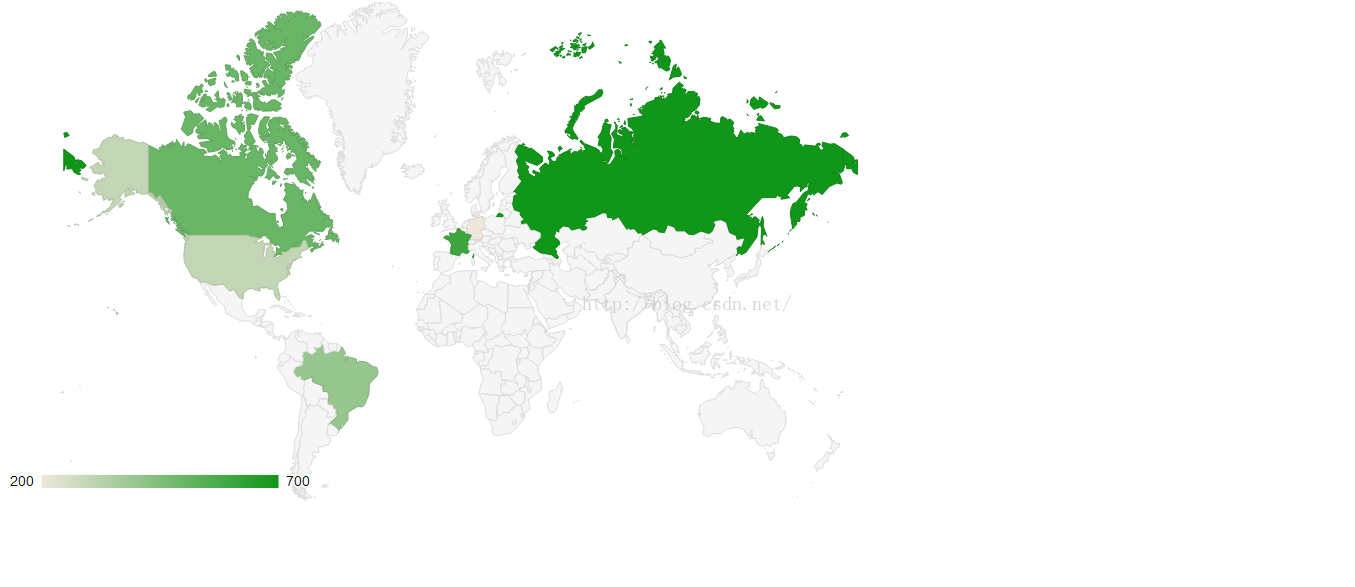

geo-charts:

<html>
<head>
<script type="text/javascript" src="https://www.google.com/jsapi"></script>
<script type="text/javascript">
google.load("visualization", "1", {packages:["geochart"]});
google.setOnLoadCallback(drawRegionsMap); function drawRegionsMap() { var data = google.visualization.arrayToDataTable([
['Country', 'Popularity'],
['Germany', 200],
['United States', 300],
['Brazil', 400],
['Canada', 500],
['France', 600],
['RU', 700]
]); var options = {}; var chart = new google.visualization.GeoChart(document.getElementById('regions_div')); chart.draw(data, options);
}
</script>
</head>
<body>
<div id="regions_div" style="width: 900px; height: 500px;"></div>
</body>
</html>

效果图:

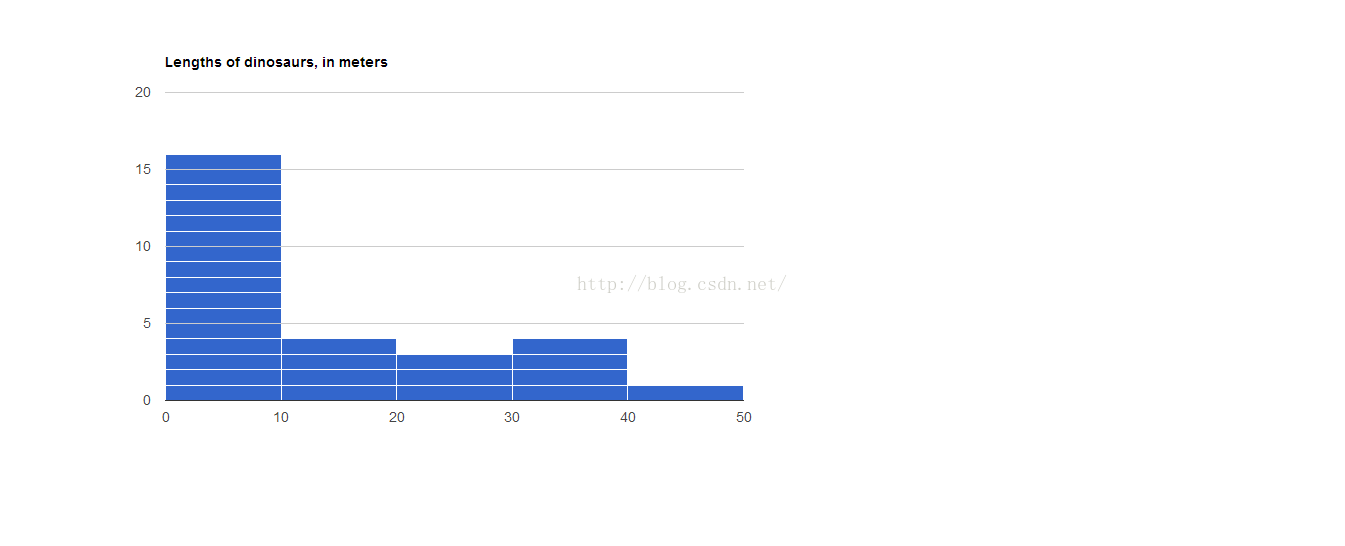

histograms-charts:

<html>
<head>
<script type="text/javascript" src="https://www.google.com/jsapi"></script>
<script type="text/javascript">
google.load("visualization", "1", {packages:["corechart"]});
google.setOnLoadCallback(drawChart);
function drawChart() {
var data = google.visualization.arrayToDataTable([
['Dinosaur', 'Length'],
['Acrocanthosaurus (top-spined lizard)', 12.2],
['Albertosaurus (Alberta lizard)', 9.1],
['Allosaurus (other lizard)', 12.2],
['Apatosaurus (deceptive lizard)', 22.9],
['Archaeopteryx (ancient wing)', 0.9],
['Argentinosaurus (Argentina lizard)', 36.6],
['Baryonyx (heavy claws)', 9.1],
['Brachiosaurus (arm lizard)', 30.5],
['Ceratosaurus (horned lizard)', 6.1],
['Coelophysis (hollow form)', 2.7],
['Compsognathus (elegant jaw)', 0.9],
['Deinonychus (terrible claw)', 2.7],
['Diplodocus (double beam)', 27.1],
['Dromicelomimus (emu mimic)', 3.4],
['Gallimimus (fowl mimic)', 5.5],
['Mamenchisaurus (Mamenchi lizard)', 21.0],
['Megalosaurus (big lizard)', 7.9],
['Microvenator (small hunter)', 1.2],
['Ornithomimus (bird mimic)', 4.6],
['Oviraptor (egg robber)', 1.5],
['Plateosaurus (flat lizard)', 7.9],
['Sauronithoides (narrow-clawed lizard)', 2.0],
['Seismosaurus (tremor lizard)', 45.7],
['Spinosaurus (spiny lizard)', 12.2],
['Supersaurus (super lizard)', 30.5],
['Tyrannosaurus (tyrant lizard)', 15.2],
['Ultrasaurus (ultra lizard)', 30.5],
['Velociraptor (swift robber)', 1.8]]); var options = {
title: 'Lengths of dinosaurs, in meters',
legend: { position: 'none' },
}; var chart = new google.visualization.Histogram(document.getElementById('chart_div'));
chart.draw(data, options);
}
</script>
</head>
<body>
<div id="chart_div" style="width: 900px; height: 500px;"></div>
</body>
</html>

效果图:

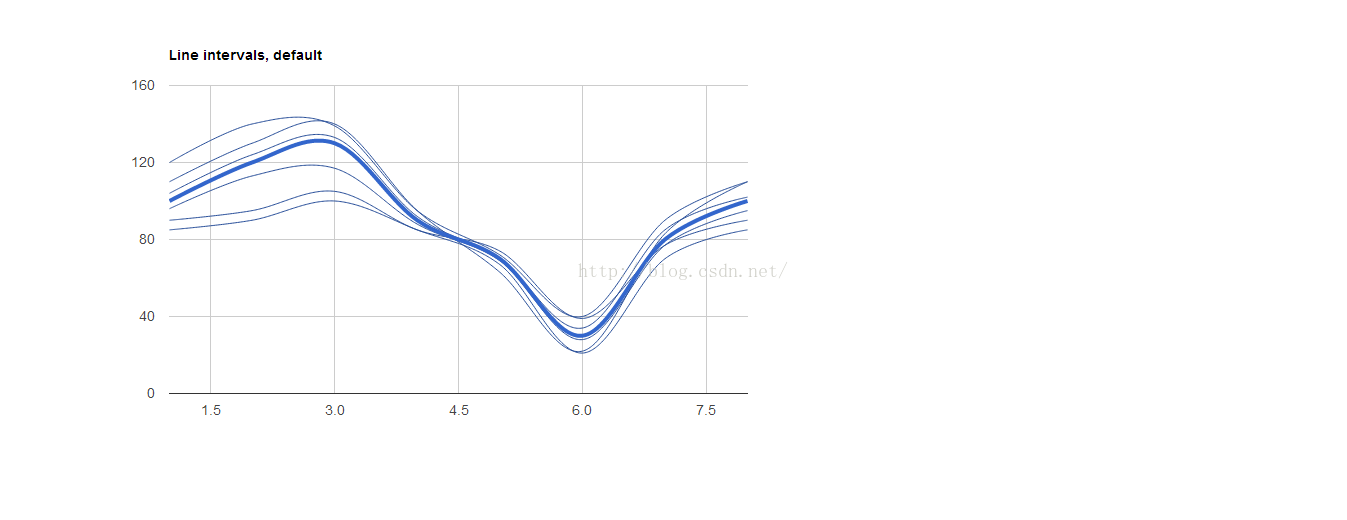

interval-charts:

<html>
<head>
<script type="text/javascript" src="https://www.google.com/jsapi"></script>
<script type="text/javascript">
google.load("visualization", "1", {packages:["corechart"]});
google.setOnLoadCallback(drawChart);
function drawChart() {
var data = new google.visualization.DataTable();
data.addColumn('number', 'x');
data.addColumn('number', 'values');
data.addColumn({id:'i0', type:'number', role:'interval'});
data.addColumn({id:'i1', type:'number', role:'interval'});
data.addColumn({id:'i2', type:'number', role:'interval'});
data.addColumn({id:'i2', type:'number', role:'interval'});
data.addColumn({id:'i2', type:'number', role:'interval'});
data.addColumn({id:'i2', type:'number', role:'interval'}); data.addRows([
[1, 100, 90, 110, 85, 96, 104, 120],
[2, 120, 95, 130, 90, 113, 124, 140],
[3, 130, 105, 140, 100, 117, 133, 139],
[4, 90, 85, 95, 85, 88, 92, 95],
[5, 70, 74, 63, 67, 69, 70, 72],
[6, 30, 39, 22, 21, 28, 34, 40],
[7, 80, 77, 83, 70, 77, 85, 90],
[8, 100, 90, 110, 85, 95, 102, 110]]); // The intervals data as narrow lines (useful for showing raw source data)
var options_lines = {
title: 'Line intervals, default',
curveType: 'function',
lineWidth: 4,
intervals: { 'style':'line' },
legend: 'none'
}; var chart_lines = new google.visualization.LineChart(document.getElementById('chart_lines'));
chart_lines.draw(data, options_lines);
}
</script>
</head>
<body>
<div id="chart_lines" style="width: 900px; height: 500px;"></div>
</body>
</html>

效果图:

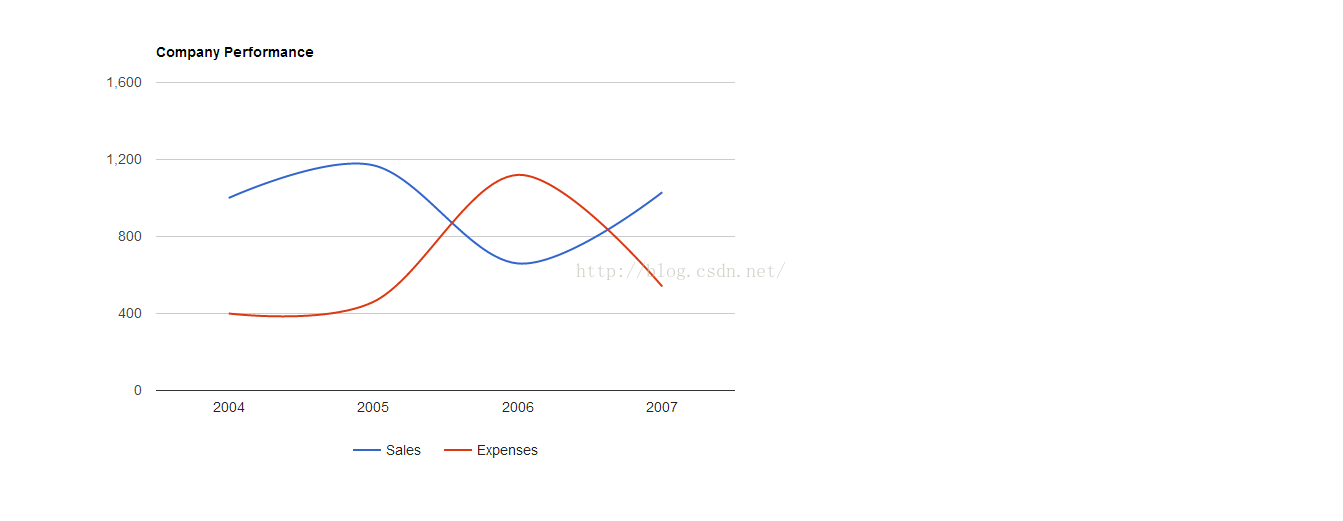

line-charts:

  <html>
<head>
<script type="text/javascript"
src="https://www.google.com/jsapi?autoload={
'modules':[{
'name':'visualization',
'version':'1',
'packages':['corechart']
}]
}"></script> <script type="text/javascript">
google.setOnLoadCallback(drawChart); function drawChart() {
var data = google.visualization.arrayToDataTable([
['Year', 'Sales', 'Expenses'],
['2004', 1000, 400],
['2005', 1170, 460],
['2006', 660, 1120],
['2007', 1030, 540]
]); var options = {
title: 'Company Performance',
curveType: 'function',
legend: { position: 'bottom' }
}; var chart = new google.visualization.LineChart(document.getElementById('curve_chart')); chart.draw(data, options);
}
</script>
</head>
<body>
<div id="curve_chart" style="width: 900px; height: 500px"></div>
</body>
</html>

效果图:

Google Chart API学习(二)的更多相关文章

  1. 利用 Google Chart API 生成二维码大小不一致

    大小不一致是由于 chl  参数内容不一样导致的,而 chs 参数只能指定生成图片的大小,不能指定生成具体二维码大小. 比如:https://chart.googleapis.com/chart?ch ...

  2. 在云平台上基于Go语言+Google图表API提供二维码生成应用

    二维码能够说已经深深的融入了我们的生活其中.到处可见它的身影:但通常我们都是去扫二维码, 曾经我们分享给朋友一个网址直接把Url发过去,如今我们能够把自己的信息生成二维码再分享给他人. 这里就分享一下 ...

  3. 使用Google Chart API绘制组合图

    Google Chart API 绘图 组合图作者:方倍工作室 地址: <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN& ...

  4. Google Chart API 参考 中文版

    Google Chart API 参考 中文版 文档信息 翻译: Cloudream ,最后修改:02/22/2008 06:11:08 英文版版权归 Google , 转载此中文版必须以链接形式注明 ...

  5. 使用google chart api生成报表图片

    使用google chart api生成报表图片 截图 折线图 饼图 柱状图   实现方法 原理是调用google的报表服务,动态拼接url字符串,得到一张图片,数据和说明文字都是从url中传进去的. ...

  6. 谷歌制图服务(Google Chart)接口生成二维码

    Google公布了制图服务(Google Chart)的接口,这项服务用起来相当简单,只使用浏览器就可以用来为统计数据自动生成图片. 目前谷歌制图服务提供折线图.条状图.饼图.Venn图.散点图.二维 ...

  7. google map api 学习笔记

    (1)地图的缩放监听函数 google.maps.event.addlistener(map,"zoom_change",function(){ 缩放级别变化后的函数. }); ( ...

  8. 转载总结一些关于Google chart api的知识

    <script type="text/javascript">      google.setOnLoadCallback(drawChartLine);      f ...

  9. Google Map API 学习六

    今天其实收货很大的 1.new google.maps.Circle 就是如何在地图上标注一个圆 3.getAnimation 在这里是通过获取Marker是否存在动作,然后如果存在动作的话,就将动作 ...

  10. Google Map API 学习五

    今天其实收货很大的 1.InfoWindow google.maps.InfoWindow class An overlay that looks like a bubble and is often ...

随机推荐

  1. Kubernetes:kube-scheduler 源码分析

    0. 前言 [译] kubernetes:kube-scheduler 调度器代码结构概述 介绍了 kube-scheduler 的代码结构.本文围绕代码结构,从源码角度出发,分析 kube-sche ...

  2. SpringBoot自动化配置

    SpringBoot自动化配置 一.SpringBoot自动化配置原理 1.SpringBoot引导类注解介绍 在SpringBoot的启动引导类上有一个@SpringBootApplication注 ...

  3. 实战视频所需要的IDE和工具软件的下载链接

    以下是视频实战所需要的IDE和工具软件的下载链接: Visual Studio Code(适用于Windows.Mac和Linux):https://code.visualstudio.com/dow ...

  4. MySQL8-[问题解决]java.sql.SQLNonTransientConnectionException: Cannot load connection class because of underlying

    对应为MySQL8和 MySQL-connecter8.0.16 1.修改MySQL驱动器 原来的版本: com.mysql.jdbc.Driver 现在改为:com.mysql.cj.jdbc.Dr ...

  5. NC20313 [SDOI2008]仪仗队

    题目链接 题目 题目描述 作为体育委员,C君负责这次运动会仪仗队的训练. 仪仗队是由学生组成的N * N的方阵,为了保证队伍在行进中整齐划一,C君会跟在仪仗队的左后方,根据其视线所及的学生人数来判断队 ...

  6. NC19885 [AHOI2009]CHESS 中国象棋

    题目链接 题目 题目描述 在N行M列的棋盘上,放若干个炮可以是0个,使得没有任何一个炮可以攻击另一个炮. 请问有多少种放置方法,中国像棋中炮的行走方式大家应该很清楚吧.一个炮要能攻击另一个炮他们必须要 ...

  7. C 语言常用头文件解释

    C系统提供了丰富的系统文件,称为库文件,整理一下以后好实用: <stdio.h> 定义了三个变量类型.一些宏和各种函数来执行输入和输出 https://www.runoob.com/cpr ...

  8. 使用JS访问本地数据库

    1 前言 有时候,数据业务比较大,比如查询百万级的数据,如果使用JSP查询数据库,JSP的返回结果一般放在域名后面返回给客户端,而返回结果的长度是有限制的,数据过长可能会丢失部分数据:另一方面数据量大 ...

  9. 记一次 .NET某列控连锁系统 崩溃分析

    一:背景 1. 讲故事 过年喝了不少酒,脑子不灵光了,停了将近一个月没写博客,今天就当新年开工写一篇吧. 去年年初有位朋友找到我,说他们的系统会偶发性崩溃,在网上也发了不少帖子求助,没找到自己满意的答 ...

  10. 《系列二》-- 7、后置处理器-PostProcessor

    目录 什么是后置处理器 spring 源码中已知的,顶级PostProcessor 其它 "后置处理器" 阅读之前要注意的东西:本文就是主打流水账式的源码阅读,主导的是一个参考,主 ...
