【撸码caffe 三】 caffe.cpp

caffe.cpp文件完成对网络模型以及模型配置参数的读入和提取，提供了网络模型训练的入口函数train和对模型的测试入口函数test。文件中使用了很多gflags和glog指令，gflags是google的一个开源的处理命令行参数的库，glog是一个有效的日志记录工具。

补充一点CUDA中查询GPU设备属性的知识：

CUDA C中的cudaGetDeviceProperties函数可以很方便的获取到设备的信息，caffe.cpp中就使用到了这个函数查询设备信息，函数原型是：

1. cudaError_t CUDARTAPI cudaGetDeviceProperties(struct cudaDeviceProp *prop, int device);

第二个参数device是从0开始的设备的编号。

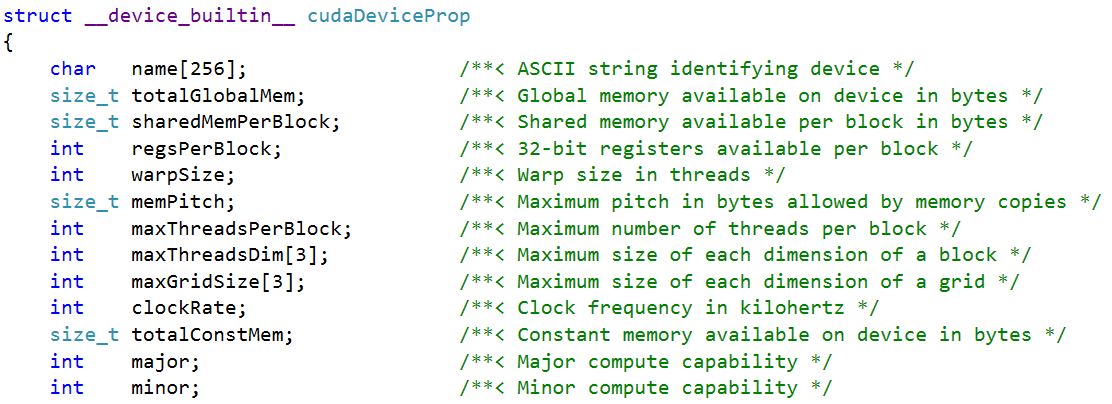

第一个参数prop指向的是一个cudaDeviceProp类型的结构。cudaDeviceProp结构中包含了设备的相关属性，下图是 其中的几个属性信息：

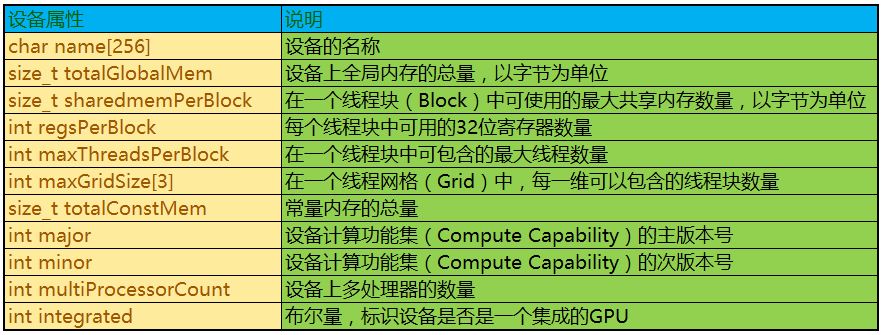

部分属性信息的相关说明如下：

caffe.cpp文件注释：

#ifdef WITH_PYTHON_LAYER
#include "boost/python.hpp"
namespace bp = boost::python;
#endif

#include <gflags/gflags.h>
#include <glog/logging.h>

#include <cstring>
#include <map>
#include <string>
#include <vector>

#include "boost/algorithm/string.hpp"
#include "caffe/caffe.hpp"
#include "caffe/util/signal_handler.h"

using caffe::Blob;
using caffe::Caffe;
using caffe::Net;
using caffe::Layer;
using caffe::Solver;
using caffe::shared_ptr;
using caffe::string;
using caffe::Timer;
using caffe::vector;
using std::ostringstream;

/**********************************************************************
DEFINE_string/int32 是gflags（google的一个开源的处理命令行参数的库）中的宏定义
作用是获取命令行中传入的配置的参数值，它的调用格式是（name，val，txt），其中name
是命令行中的配置项，val是配置项的值，txt是描述信息，如果命令行中没有配置变量的值，
则使用DEFINE中的默认值
**********************************************************************/
DEFINE_string(gpu, "",
	"Optional; run in GPU mode on given device IDs separated by ','."
	"Use '-gpu all' to run on all available GPUs. The effective training "
	"batch size is multiplied by the number of devices.");
DEFINE_string(solver, "",
	"The solver definition protocol buffer text file.");
DEFINE_string(model, "",
	"The model definition protocol buffer text file.");
DEFINE_string(phase, "",
	"Optional; network phase (TRAIN or TEST). Only used for 'time'.");
DEFINE_int32(level, 0,
	"Optional; network level.");
DEFINE_string(stage, "",
	"Optional; network stages (not to be confused with phase), "
	"separated by ','.");
DEFINE_string(snapshot, "",
	"Optional; the snapshot solver state to resume training.");
DEFINE_string(weights, "",
	"Optional; the pretrained weights to initialize finetuning, "
	"separated by ','. Cannot be set simultaneously with snapshot.");
DEFINE_int32(iterations, 50,
	"The number of iterations to run.");
DEFINE_string(sigint_effect, "stop",
	"Optional; action to take when a SIGINT signal is received: "
	"snapshot, stop or none.");
DEFINE_string(sighup_effect, "snapshot",
	"Optional; action to take when a SIGHUP signal is received: "
	"snapshot, stop or none.");

// A simple registry for caffe commands.
/*声明一个BrewFunction函数指针类型，可以用它来定义一个函数指针
在main函数中通过这个函数指针调用相应的train或test函数
*/
typedef int(*BrewFunction)();
typedef std::map<caffe::string, BrewFunction> BrewMap;
BrewMap g_brew_map;

//在C++宏定义中， \的作用是把内容分行显示；   #的作用是把其后的内容转换成字符串
#define RegisterBrewFunction(func) \
namespace {
\
class __Registerer_##func{ \
public: /* NOLINT */ \
	__Registerer_##func() {
	\
	g_brew_map[#func] = &func; \
	} \
}; \
__Registerer_##func g_registerer_##func; \
}

/**********************************************************************
在caffe中，BrewFunction作为GetBrewFunction()函数的返回类型，可以是train(),
test(),device_query(),time()这4个函数指针的其中一个，通过传入的name，指向对应
的函数，在train(),test()函数中，可以调用solver类的函数，从而进入到net，进入到网络
中的每一层，运行整个caffe程序
***********************************************************************/
static BrewFunction GetBrewFunction(const caffe::string& name) {
	if (g_brew_map.count(name)) {   // 判断传入的name是不是train，test，device_query或time中的一种
		return g_brew_map[name];
	}
	else {   //对于其他传入值，打印出错误信息---不含有对应的操作
		LOG(ERROR) << "Available caffe actions:";
		for (BrewMap::iterator it = g_brew_map.begin();
			it != g_brew_map.end(); ++it) {
			LOG(ERROR) << "\t" << it->first;
		}
		LOG(FATAL) << "Unknown action: " << name;
		return NULL;  // not reachable, just to suppress old compiler warnings.
	}
}

// Parse GPU ids or use all available devices
//获取可用的gpu设备
static void get_gpus(vector<int>* gpus) {
	if (FLAGS_gpu == "all") {
		int count = 0;
#ifndef CPU_ONLY
		CUDA_CHECK(cudaGetDeviceCount(&count));
#else
		NO_GPU;
#endif
		for (int i = 0; i < count; ++i) {
			gpus->push_back(i);
		}
	}
	else if (FLAGS_gpu.size()) {
		vector<string> strings;
		boost::split(strings, FLAGS_gpu, boost::is_any_of(","));
		for (int i = 0; i < strings.size(); ++i) {
			gpus->push_back(boost::lexical_cast<int>(strings[i]));
		}
	}
	else {
		CHECK_EQ(gpus->size(), 0);
	}
}

// Parse phase from flags
//返回flags阶段，是TRAIN还是TEST，用于进一步分析
caffe::Phase get_phase_from_flags(caffe::Phase default_value) {
	if (FLAGS_phase == "")
		return default_value;
	if (FLAGS_phase == "TRAIN")
		return caffe::TRAIN;
	if (FLAGS_phase == "TEST")
		return caffe::TEST;
	LOG(FATAL) << "phase must be \"TRAIN\" or \"TEST\"";
	return caffe::TRAIN;  // Avoid warning
}

// Parse stages from flags
vector<string> get_stages_from_flags() {
	vector<string> stages;
	boost::split(stages, FLAGS_stage, boost::is_any_of(","));
	return stages;
}

// caffe commands to call by
//     caffe <command> <args>
//
// To add a command, define a function "int command()" and register it with
// RegisterBrewFunction(action);

// Device Query: show diagnostic information for a GPU device.
//查询GPU设备信息
int device_query() {
	LOG(INFO) << "Querying GPUs " << FLAGS_gpu;
	vector<int> gpus;
	get_gpus(&gpus);
	for (int i = 0; i < gpus.size(); ++i) {
		caffe::Caffe::SetDevice(gpus[i]);
		caffe::Caffe::DeviceQuery();
	}
	return 0;
}
RegisterBrewFunction(device_query);

// Load the weights from the specified caffemodel(s) into the train and
// test nets.
//赋值Layers
void CopyLayers(caffe::Solver<float>* solver, const std::string& model_list) {
	std::vector<std::string> model_names;
	boost::split(model_names, model_list, boost::is_any_of(","));
	for (int i = 0; i < model_names.size(); ++i) {
		LOG(INFO) << "Finetuning from " << model_names[i];
		solver->net()->CopyTrainedLayersFrom(model_names[i]);
		for (int j = 0; j < solver->test_nets().size(); ++j) {
			solver->test_nets()[j]->CopyTrainedLayersFrom(model_names[i]);
		}
	}
}

// Translate the signal effect the user specified on the command-line to the
// corresponding enumeration.
//将交互端传来的string类型的标志转换成枚举类型的变量
caffe::SolverAction::Enum GetRequestedAction(
	const std::string& flag_value) {
	if (flag_value == "stop") {
		return caffe::SolverAction::STOP;
	}
	if (flag_value == "snapshot") {
		return caffe::SolverAction::SNAPSHOT;
	}
	if (flag_value == "none") {
		return caffe::SolverAction::NONE;
	}
	LOG(FATAL) << "Invalid signal effect \"" << flag_value << "\" was specified";
	return caffe::SolverAction::NONE;
}

// Train / Finetune a model.
//trian函数功能是对一个网络模型进行训练，对模型参数进行调优
int train() {
	//CHECK_GT是一个宏定义，用来检查传入的参数中“--solver=”后边是否为空，若为空，
	//则报错并输出错误信息，但此处并没有对文件路径合法性检查
	CHECK_GT(FLAGS_solver.size(), 0) << "Need a solver definition to train.";
	//检查命令行中输入的 --snapshot和--weights信息，这两者可以不设置或只设置其一
	CHECK(!FLAGS_snapshot.size() || !FLAGS_weights.size())
		<< "Give a snapshot to resume training or weights to finetune "
		"but not both.";
	vector<string> stages = get_stages_from_flags();

	/********************************************************************
	实例化SolverParameter类，该类报错了solver参数和网络参数的优化规则，SolverParameter是
	通过Google ProtocolBuffer自动生成的一个类， 在SharedCtor函数里对网络的各个参数进行了初始化设置
	********************************************************************/
	caffe::SolverParameter solver_param;
	//从传入的slover文件读入网络的各个参数并传给solver_param对象
	caffe::ReadSolverParamsFromTextFileOrDie(FLAGS_solver, &solver_param);

	//设置训练状态
	solver_param.mutable_train_state()->set_level(FLAGS_level);
	for (int i = 0; i < stages.size(); i++) {
		solver_param.mutable_train_state()->add_stage(stages[i]);
	}

	// If the gpus flag is not provided, allow the mode and device to be set
	// in the solver prototxt.
	//根据命令参数 -gpu或者solver.prototxt中提供的GPU配置信息设置GPU
	if (FLAGS_gpu.size() == 0
		&& solver_param.solver_mode() == caffe::SolverParameter_SolverMode_GPU) {
		if (solver_param.has_device_id()) {
			FLAGS_gpu = "" +
				boost::lexical_cast<string>(solver_param.device_id());
		}
		else {  // Set default GPU if unspecified
			FLAGS_gpu = "" + boost::lexical_cast<string>(0);
		}
	}

	vector<int> gpus;   //GPU编号
	get_gpus(&gpus);   //获取可用的GPU
	if (gpus.size() == 0) {   //如果没有可用的GPU，则设置运行模式为GPU
		LOG(INFO) << "Use CPU.";
		Caffe::set_mode(Caffe::CPU);
	}
	else {
		//若存在多个GPU，则使用多个GPU一起工作
		ostringstream s;
		for (int i = 0; i < gpus.size(); ++i) {
			s << (i ? ", " : "") << gpus[i];
		}
		LOG(INFO) << "Using GPUs " << s.str();
#ifndef CPU_ONLY
		cudaDeviceProp device_prop;
		for (int i = 0; i < gpus.size(); ++i) {
			//cudaGetDeviceProperties函数用于获取设备的信息
			cudaGetDeviceProperties(&device_prop, gpus[i]);
			//输出设备的型号（名称）
			LOG(INFO) << "GPU " << gpus[i] << ": " << device_prop.name;
		}
#endif
		//GPU设置
		solver_param.set_device_id(gpus[0]);
		Caffe::SetDevice(gpus[0]);
		Caffe::set_mode(Caffe::GPU);
		Caffe::set_solver_count(gpus.size());
	}

	/******************************************************************
	括号内的两个函数，从最右边的开始执行，将 “stop”“snapshot”“none”
	转换成标准信号，即解析。
	函数执行结果是将SIGINT_action对应STOP， SIGHUP_action对应SNAPSHOT
	******************************************************************/
	caffe::SignalHandler signal_handler(
		GetRequestedAction(FLAGS_sigint_effect),
		GetRequestedAction(FLAGS_sighup_effect));
	//通过智能指针创建solver指针，指向caffe::Solver对象
	shared_ptr<caffe::Solver<float> >
		solver(caffe::SolverRegistry<float>::CreateSolver(solver_param));

	solver->SetActionFunction(signal_handler.GetActionFunction());

	/*******************************************************************************
	判断用户是否定义了snapshot或者weights这两个参数中的一个，如果定义了则需要通过
	Solver提供的接口从snapshot或者weights文件中去读取已经训练好的网络的参数，继续训练
	********************************************************************************/
	if (FLAGS_snapshot.size()) {
		//打印信息，从上一个中断的训练结果文件继续训练
		LOG(INFO) << "Resuming from " << FLAGS_snapshot;
		//读入sanpshot文件内容
		solver->Restore(FLAGS_snapshot.c_str());
	}
	else if (FLAGS_weights.size()) {
		CopyLayers(solver.get(), FLAGS_weights);
	}

	//如果有不止一个GPU，用线程并行优化网络
	if (gpus.size() > 1) {
		caffe::P2PSync<float> sync(solver, NULL, solver->param());
		sync.Run(gpus);
	}
	else {
		LOG(INFO) << "Starting Optimization";
		solver->Solve();   //执行网络模型优化，跳到solver文件执行
	}
	LOG(INFO) << "Optimization Done.";
	return 0;
}
RegisterBrewFunction(train);

//test时间对网络模型的测试和评估
// Test: score a model.
int test() {
	//判断命令行参数里是否传入网络模型
	CHECK_GT(FLAGS_model.size(), 0) << "Need a model definition to score.";
	//判断命令行参数里是否传入了训练好的模型参数文件，后缀为caffemodel
	CHECK_GT(FLAGS_weights.size(), 0) << "Need model weights to score.";
	vector<string> stages = get_stages_from_flags();

	// Set device id and mode
	vector<int> gpus;
	get_gpus(&gpus);      //查询GPU设备信息，无可用则设置为运行模式为CPU
	if (gpus.size() != 0) {
		LOG(INFO) << "Use GPU with device ID " << gpus[0];
#ifndef CPU_ONLY
		cudaDeviceProp device_prop;
		cudaGetDeviceProperties(&device_prop, gpus[0]);
		LOG(INFO) << "GPU device name: " << device_prop.name;
#endif
		Caffe::SetDevice(gpus[0]);
		Caffe::set_mode(Caffe::GPU);
	}
	else {
		LOG(INFO) << "Use CPU.";
		Caffe::set_mode(Caffe::CPU);
	}
	// Instantiate the caffe net.
	//创建一个网络模型对象
	Net<float> caffe_net(FLAGS_model, caffe::TEST, FLAGS_level, &stages);
	caffe_net.CopyTrainedLayersFrom(FLAGS_weights);  //加载训练好的模型文件
	LOG(INFO) << "Running for " << FLAGS_iterations << " iterations.";

	vector<int> test_score_output_id;
	vector<float> test_score;
	float loss = 0;
	for (int i = 0; i < FLAGS_iterations; ++i) {     //FLAGS_iterations是配置的测试迭代次数
		float iter_loss;
		const vector<Blob<float>*>& result =
			caffe_net.Forward(&iter_loss);     //把测试数据流在网络中做前向传播
		loss += iter_loss;      //累加每次的损失
		int idx = 0;
		for (int j = 0; j < result.size(); ++j) {
			const float* result_vec = result[j]->cpu_data();
			for (int k = 0; k < result[j]->count(); ++k, ++idx) {
				const float score = result_vec[k];
				if (i == 0) {
					test_score.push_back(score);
					test_score_output_id.push_back(j);
				}
				else {
					test_score[idx] += score;
				}
				const std::string& output_name = caffe_net.blob_names()[
					caffe_net.output_blob_indices()[j]];
					//输出迭代的accuracy与loss信息
					LOG(INFO) << "Batch " << i << ", " << output_name << " = " << score;
			}
		}
	}
	loss /= FLAGS_iterations;  // 计算平均损失并打印
	LOG(INFO) << "Loss: " << loss;
	for (int i = 0; i < test_score.size(); ++i) {
		const std::string& output_name = caffe_net.blob_names()[
			caffe_net.output_blob_indices()[test_score_output_id[i]]];
			const float loss_weight = caffe_net.blob_loss_weights()[
				caffe_net.output_blob_indices()[test_score_output_id[i]]];
				std::ostringstream loss_msg_stream;
				const float mean_score = test_score[i] / FLAGS_iterations;
				if (loss_weight) {
					loss_msg_stream << " (* " << loss_weight
						<< " = " << loss_weight * mean_score << " loss)";
				}
				LOG(INFO) << output_name << " = " << mean_score << loss_msg_stream.str();
	}

	return 0;
}
RegisterBrewFunction(test);

//test函数用于测试网络模型的执行时间
// Time: benchmark the execution time of a model.
int time() {
	CHECK_GT(FLAGS_model.size(), 0) << "Need a model definition to time.";
	caffe::Phase phase = get_phase_from_flags(caffe::TRAIN);
	vector<string> stages = get_stages_from_flags();

	// Set device id and mode
	vector<int> gpus;
	get_gpus(&gpus);
	if (gpus.size() != 0) {
		LOG(INFO) << "Use GPU with device ID " << gpus[0];
		Caffe::SetDevice(gpus[0]);
		Caffe::set_mode(Caffe::GPU);
	}
	else {
		LOG(INFO) << "Use CPU.";
		Caffe::set_mode(Caffe::CPU);
	}

	//创建网络模型对象
	// Instantiate the caffe net.
	Net<float> caffe_net(FLAGS_model, phase, FLAGS_level, &stages);

	// Do a clean forward and backward pass, so that memory allocation are done
	// and future iterations will be more stable.
	LOG(INFO) << "Performing Forward";
	// Note that for the speed benchmark, we will assume that the network does
	// not take any input blobs.
	float initial_loss;
	caffe_net.Forward(&initial_loss);   //执行一遍前向传播
	LOG(INFO) << "Initial loss: " << initial_loss;
	LOG(INFO) << "Performing Backward";
	caffe_net.Backward();   //执行反向传播

	const vector<shared_ptr<Layer<float> > >& layers = caffe_net.layers();
	const vector<vector<Blob<float>*> >& bottom_vecs = caffe_net.bottom_vecs();
	const vector<vector<Blob<float>*> >& top_vecs = caffe_net.top_vecs();
	const vector<vector<bool> >& bottom_need_backward =
		caffe_net.bottom_need_backward();
	LOG(INFO) << "*** Benchmark begins ***";
	LOG(INFO) << "Testing for " << FLAGS_iterations << " iterations.";
	Timer total_timer;
	total_timer.Start();
	Timer forward_timer;
	Timer backward_timer;
	Timer timer;
	std::vector<double> forward_time_per_layer(layers.size(), 0.0);
	std::vector<double> backward_time_per_layer(layers.size(), 0.0);
	double forward_time = 0.0;
	double backward_time = 0.0;
	for (int j = 0; j < FLAGS_iterations; ++j) {
		Timer iter_timer;
		iter_timer.Start();
		forward_timer.Start();
		for (int i = 0; i < layers.size(); ++i) {
			timer.Start();
			layers[i]->Forward(bottom_vecs[i], top_vecs[i]);
			forward_time_per_layer[i] += timer.MicroSeconds();   //累加前向传播中每层网络耗时
		}
		forward_time += forward_timer.MicroSeconds();
		backward_timer.Start();
		for (int i = layers.size() - 1; i >= 0; --i) {
			timer.Start();
			layers[i]->Backward(top_vecs[i], bottom_need_backward[i],
				bottom_vecs[i]);
			backward_time_per_layer[i] += timer.MicroSeconds();  //累加反向传播中每次网络耗时
		}
		backward_time += backward_timer.MicroSeconds();
		LOG(INFO) << "Iteration: " << j + 1 << " forward-backward time: "
			<< iter_timer.MilliSeconds() << " ms.";
	}
	LOG(INFO) << "Average time per layer: ";
	for (int i = 0; i < layers.size(); ++i) {    //统计每层网络的平均耗时
		const caffe::string& layername = layers[i]->layer_param().name();
		LOG(INFO) << std::setfill(' ') << std::setw(10) << layername <<
			"\tforward: " << forward_time_per_layer[i] / 1000 /
			FLAGS_iterations << " ms.";
		LOG(INFO) << std::setfill(' ') << std::setw(10) << layername <<
			"\tbackward: " << backward_time_per_layer[i] / 1000 /
			FLAGS_iterations << " ms.";
	}
	total_timer.Stop();

	//打印总的前向传播和反向传播平均耗时以及训练流程平均耗时
	LOG(INFO) << "Average Forward pass: " << forward_time / 1000 /
		FLAGS_iterations << " ms.";
	LOG(INFO) << "Average Backward pass: " << backward_time / 1000 /
		FLAGS_iterations << " ms.";
	LOG(INFO) << "Average Forward-Backward: " << total_timer.MilliSeconds() /
		FLAGS_iterations << " ms.";
	LOG(INFO) << "Total Time: " << total_timer.MilliSeconds() << " ms.";
	LOG(INFO) << "*** Benchmark ends ***";
	return 0;
}
RegisterBrewFunction(time);

int main(int argc, char** argv) {
	// Print output to stderr (while still logging).
	FLAGS_alsologtostderr = 1;   //输出打印信息

	/************************************************************************
	AS_STRING(CAFFE_VERSION)是一个宏定义，把形参字符串化，相当于”CAFFE_VERSION“
	SetVersinoString函数用于设置版本号，目前应该是一个保留接口，并没有实际用处，这里
	传入的是“CAFFE_VERSION”,也不是具体的版本号
	*************************************************************************/
	// Set version
	gflags::SetVersionString(AS_STRING(CAFFE_VERSION));

	/***************************************************************************
	程序使用信息，说明程序的简单使用方式，如果输入的参数不符号要求，会在之后调用
	函数ShowUsageWithFlagsRestric输出这些信息，gflags是google的一个开源的处理命令行
	参数的库
	***************************************************************************/
	// Usage message.
	gflags::SetUsageMessage("command line brew\n"
		"usage: caffe <command> <args>\n\n"
		"commands:\n"
		"  train           train or finetune a model\n"
		"  test            score a model\n"
		"  device_query    show GPU diagnostic information\n"
		"  time            benchmark model execution time");

	/****************************************************************************
	初始化flags和logging， argv[0]是本程序exe的完整路径，函数内部会把argc的值减去1，
	由3变成了2（2是实际输入的变量个数）
	****************************************************************************/
	// Run tool or show usage.
	caffe::GlobalInit(&argc, &argv);
	if (argc == 2) {
#ifdef WITH_PYTHON_LAYER
		try {
#endif
			//根据argv[1]（这里是train）的配置，返回train或其他3个函数的指针并执行对应函数
			//一共可以有4个不同的参数，其他3个分别是 train，device_query和time
			return GetBrewFunction(caffe::string(argv[1]))();
#ifdef WITH_PYTHON_LAYER
		}
		catch (bp::error_already_set) {
			PyErr_Print();
			return 1;
		}
#endif
	}
	else {
		gflags::ShowUsageWithFlagsRestrict(argv[0], "tools/caffe");
	}
}
