2018 最新 spring boot 整合 swagger2 (swagger2 版本 2.8.0)

好久没上了, 看到又有人回复了. 我就来修改一下. 修改时间 2018年5月16日

这回给你上全新版本. 至发稿时间,所有的包都是新版.

注意: 高版本需要添加 jaxb-api 包, 否则会报错. 最下面列出报错信息

2018年5月17日更新 jdk8 不需要添加 jaxb-api

版本:

jdk 10

spring boot 2.0.2

swagger 2.8.0

pom.xml 包引入






<?xml version="1.0" encoding="UTF-8"?>





<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"





         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">





    <modelVersion>4.0.0</modelVersion>











    <groupId>com.example</groupId>





    <artifactId>swagger</artifactId>





    <version>0.0.1-SNAPSHOT</version>





    <packaging>jar</packaging>











    <name>swagger</name>





    <description>Demo project for Spring Boot</description>











    <!-- 华为Maven镜像 当然你也可以用阿里的-->





    <repositories>





        <repository>





            <id>huaweicloud</id>





            <url>https://repo.huaweicloud.com/repository/maven/</url>





            <!--<url>http://maven.aliyun.com/nexus/content/groups/public/</url>-->





            <releases>





                <enabled>true</enabled>





            </releases>





            <snapshots>





                <enabled>true</enabled>





                <updatePolicy>always</updatePolicy>





                <checksumPolicy>fail</checksumPolicy>





            </snapshots>





        </repository>





    </repositories>











    <parent>





        <groupId>org.springframework.boot</groupId>





        <artifactId>spring-boot-starter-parent</artifactId>





        <version>2.0.2.RELEASE</version>





        <relativePath/> <!-- lookup parent from repository -->





    </parent>











    <properties>





        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>





        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>





        <java.version>10</java.version>





    </properties>











    <dependencies>





        <dependency>





            <groupId>org.springframework.boot</groupId>





            <artifactId>spring-boot-starter-web</artifactId>





        </dependency>











        <dependency>





            <groupId>org.springframework.boot</groupId>





            <artifactId>spring-boot-starter-test</artifactId>





            <scope>test</scope>





        </dependency>











        <dependency>





            <groupId>io.springfox</groupId>





            <artifactId>springfox-swagger2</artifactId>





            <version>2.8.0</version>





        </dependency>





        <dependency>





            <groupId>io.springfox</groupId>





            <artifactId>springfox-swagger-ui</artifactId>





            <version>2.8.0</version>





        </dependency>











        <dependency>





            <groupId>javax.xml.bind</groupId>





            <artifactId>jaxb-api</artifactId>





            <version>2.3.0</version>





        </dependency>





    </dependencies>











    <build>





        <plugins>





            <plugin>





                <groupId>org.springframework.boot</groupId>





                <artifactId>spring-boot-maven-plugin</artifactId>





            </plugin>





        </plugins>





    </build>

















</project>

先检查Maven中包是否导入, 以下以idea为列. 看是否有 swagger-ui 这个包

以下为代码配置:






package net.ainio.config;











import org.springframework.context.annotation.Bean;





import org.springframework.context.annotation.Configuration;





import springfox.documentation.builders.ApiInfoBuilder;





import springfox.documentation.builders.PathSelectors;





import springfox.documentation.builders.RequestHandlerSelectors;





import springfox.documentation.service.ApiInfo;





import springfox.documentation.spi.DocumentationType;





import springfox.documentation.spring.web.plugins.Docket;





import springfox.documentation.swagger2.annotations.EnableSwagger2;











@Configuration





@EnableSwagger2





public class SwaggerConfig {





    @Bean





    public Docket api() {





        return new Docket(DocumentationType.SWAGGER_2)





                .apiInfo(apiInfo())





                .select()





                // 自行修改为自己的包路径





                .apis(RequestHandlerSelectors.basePackage("net.ainio.controller"))





                .paths(PathSelectors.any())





                .build();





    }











    private ApiInfo apiInfo() {





        return new ApiInfoBuilder()





                .title("api文档")





                .description("restfun 风格接口")





                //服务条款网址





                //.termsOfServiceUrl("http://blog.csdn.net/forezp")





                .version("1.0")





                //.contact(new Contact("帅呆了", "url", "email"))





                .build();





    }





}

测试controller

注意下这两个的区别哦, 不然前台会返回 404 错误

@RestController

@Controller






package net.ainio.controller;











import io.swagger.annotations.Api;





import io.swagger.annotations.ApiImplicitParam;





import io.swagger.annotations.ApiOperation;





import org.apache.catalina.User;





import org.springframework.web.bind.annotation.*;











@Api(value="/test", tags="测试接口模块")





@RestController





@RequestMapping("/test")





public class TestSwaggerController {





    @ApiOperation(value="展示首页信息", notes = "展示首页信息")





    @GetMapping("/show")





    public Object showInfo(){





        return "hello world";





    }











    @ApiOperation(value="添加用户信息", notes = "添加用户信息")





    @ApiImplicitParam(name="user", value="User", required = true, dataType = "User")





    @PostMapping("/addUser")





    public Object addUser(@RequestBody User user){





        return "success";





    }





}

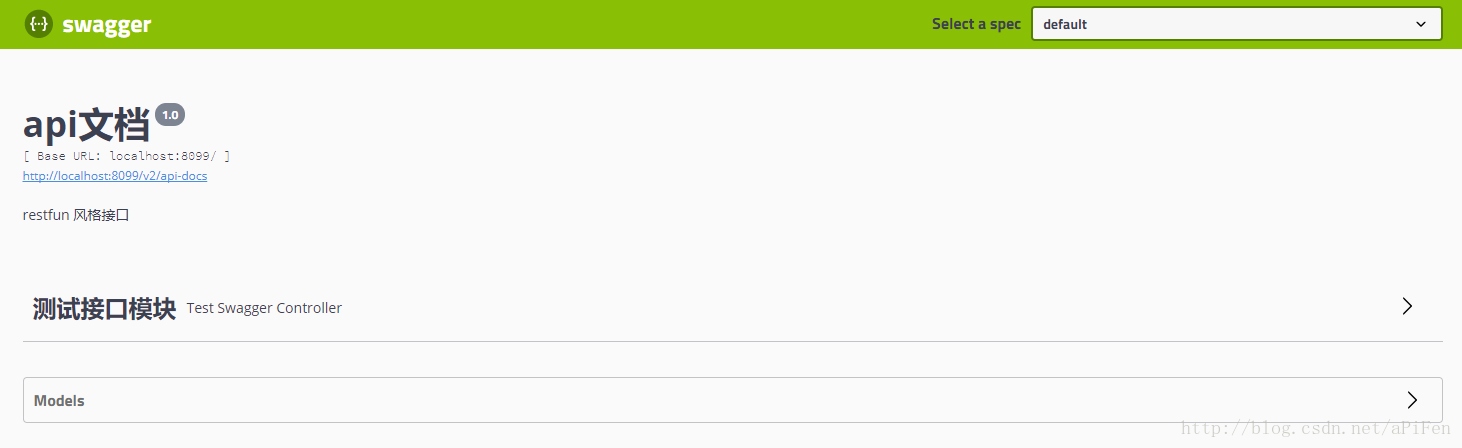

启动后访问

http://localhost:8080/swagger-ui.html

感谢 Michael_Zhan_Tcys 网友

下面列出, 不添加 jabx-api的报错信息

Error starting ApplicationContext. To display the conditions report re-run your application with 'debug' enabled.

2018-05-16 23:16:20.452 ERROR 10220 --- [ restartedMain] o.s.boot.SpringApplication : Application run failed

org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'xmlModelPlugin': Lookup method resolution failed; nested exception is java.lang.IllegalStateException: Failed to introspect Class [springfox.documentation.schema.XmlModelPlugin] from ClassLoader [jdk.internal.loader.ClassLoaders$AppClassLoader@4629104a]

at org.springframework.beans.factory.annotation.AutowiredAnnotationBeanPostProcessor.determineCandidateConstructors(AutowiredAnnotationBeanPostProcessor.java:262) ~[spring-beans-5.0.6.RELEASE.jar:5.0.6.RELEASE]

at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.determineConstructorsFromBeanPostProcessors(AbstractAutowireCapableBeanFactory.java:1202) ~[spring-beans-5.0.6.RELEASE.jar:5.0.6.RELEASE]

at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBeanInstance(AbstractAutowireCapableBeanFactory.java:1127) ~[spring-beans-5.0.6.RELEASE.jar:5.0.6.RELEASE]

at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.doCreateBean(AbstractAutowireCapableBeanFactory.java:541) ~[spring-beans-5.0.6.RELEASE.jar:5.0.6.RELEASE]

at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBean(AbstractAutowireCapableBeanFactory.java:501) ~[spring-beans-5.0.6.RELEASE.jar:5.0.6.RELEASE]

at org.springframework.beans.factory.support.AbstractBeanFactory.lambda$doGetBean$0(AbstractBeanFactory.java:317) ~[spring-beans-5.0.6.RELEASE.jar:5.0.6.RELEASE]

at org.springframework.beans.factory.support.DefaultSingletonBeanRegistry.getSingleton(DefaultSingletonBeanRegistry.java:228) ~[spring-beans-5.0.6.RELEASE.jar:5.0.6.RELEASE]

at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:315) ~[spring-beans-5.0.6.RELEASE.jar:5.0.6.RELEASE]

at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:199) ~[spring-beans-5.0.6.RELEASE.jar:5.0.6.RELEASE]

at org.springframework.beans.factory.support.DefaultListableBeanFactory.preInstantiateSingletons(DefaultListableBeanFactory.java:760) ~[spring-beans-5.0.6.RELEASE.jar:5.0.6.RELEASE]

at org.springframework.context.support.AbstractApplicationContext.finishBeanFactoryInitialization(AbstractApplicationContext.java:869) ~[spring-context-5.0.6.RELEASE.jar:5.0.6.RELEASE]

at org.springframework.context.support.AbstractApplicationContext.refresh(AbstractApplicationContext.java:550) ~[spring-context-5.0.6.RELEASE.jar:5.0.6.RELEASE]

at org.springframework.boot.web.servlet.context.ServletWebServerApplicationContext.refresh(ServletWebServerApplicationContext.java:140) ~[spring-boot-2.0.2.RELEASE.jar:2.0.2.RELEASE]

at org.springframework.boot.SpringApplication.refresh(SpringApplication.java:759) [spring-boot-2.0.2.RELEASE.jar:2.0.2.RELEASE]

at org.springframework.boot.SpringApplication.refreshContext(SpringApplication.java:395) [spring-boot-2.0.2.RELEASE.jar:2.0.2.RELEASE]

at org.springframework.boot.SpringApplication.run(SpringApplication.java:327) [spring-boot-2.0.2.RELEASE.jar:2.0.2.RELEASE]

at org.springframework.boot.SpringApplication.run(SpringApplication.java:1255) [spring-boot-2.0.2.RELEASE.jar:2.0.2.RELEASE]

at org.springframework.boot.SpringApplication.run(SpringApplication.java:1243) [spring-boot-2.0.2.RELEASE.jar:2.0.2.RELEASE]

at com.example.SwaggerApplication.main(SwaggerApplication.java:10) [classes/:na]

at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke0(Native Method) ~[na:na]

at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62) ~[na:na]

at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43) ~[na:na]

at java.base/java.lang.reflect.Method.invoke(Method.java:564) ~[na:na]

at org.springframework.boot.devtools.restart.RestartLauncher.run(RestartLauncher.java:49) [spring-boot-devtools-2.0.2.RELEASE.jar:2.0.2.RELEASE]

Caused by: java.lang.IllegalStateException: Failed to introspect Class [springfox.documentation.schema.XmlModelPlugin] from ClassLoader [jdk.internal.loader.ClassLoaders$AppClassLoader@4629104a]

at org.springframework.util.ReflectionUtils.getDeclaredMethods(ReflectionUtils.java:659) ~[spring-core-5.0.6.RELEASE.jar:5.0.6.RELEASE]

at org.springframework.util.ReflectionUtils.doWithMethods(ReflectionUtils.java:556) ~[spring-core-5.0.6.RELEASE.jar:5.0.6.RELEASE]

at org.springframework.util.ReflectionUtils.doWithMethods(ReflectionUtils.java:541) ~[spring-core-5.0.6.RELEASE.jar:5.0.6.RELEASE]

at org.springframework.beans.factory.annotation.AutowiredAnnotationBeanPostProcessor.determineCandidateConstructors(AutowiredAnnotationBeanPostProcessor.java:245) ~[spring-beans-5.0.6.RELEASE.jar:5.0.6.RELEASE]

... 23 common frames omitted

Caused by: java.lang.NoClassDefFoundError: javax/xml/bind/annotation/XmlType

at java.base/java.lang.Class.getDeclaredMethods0(Native Method) ~[na:na]

at java.base/java.lang.Class.privateGetDeclaredMethods(Class.java:3119) ~[na:na]

at java.base/java.lang.Class.getDeclaredMethods(Class.java:2268) ~[na:na]

at org.springframework.util.ReflectionUtils.getDeclaredMethods(ReflectionUtils.java:641) ~[spring-core-5.0.6.RELEASE.jar:5.0.6.RELEASE]

... 26 common frames omitted

Caused by: java.lang.ClassNotFoundException: javax.xml.bind.annotation.XmlType

at java.base/jdk.internal.loader.BuiltinClassLoader.loadClass(BuiltinClassLoader.java:582) ~[na:na]

at java.base/jdk.internal.loader.ClassLoaders$AppClassLoader.loadClass(ClassLoaders.java:190) ~[na:na]

at java.base/java.lang.ClassLoader.loadClass(ClassLoader.java:499) ~[na:na]

... 30 common frames omitted

Process finished with exit code 0

本文链接：https://blog.csdn.net/aPiFen/article/details/79397100
